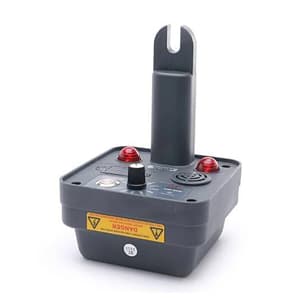

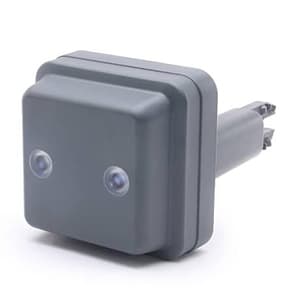

HTC 220V - 500kV Non Contact High Voltage Detector, HP-500

Shop all HTC

SKU: ME.NO.DE.00036

Model: HP500

Roll over image to zoom zoom_in
  1. HTC 220V - 500kV Non Contact High Voltage Detector, HP-500
  2. HTC 220V - 500kV Non Contact High Voltage Detector, HP-500
  3. HTC 220V - 500kV Non Contact High Voltage Detector, HP-500
  4. HTC 220V - 500kV Non Contact High Voltage Detector, HP-500
Video

  • Product Type: Detectors
  • Frequency Range: 40 ~ 70Hz
  • Off Test: 240V-69kV-115kV-138kV-230kV-500kV
  • Power: 9V (6F22) X 1
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

6749.6 (Incl. of all taxes)

5720+ ₹1029.6 GST (18%)

MRP ₹7150

SAVE 20%



5 Business Days

1 Pcs

90303100

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • 9 Voltage Settings.
  • Bright LED Visual indication with Buzzer.
  • Protection class IP65.
  • Non-Contact Test Detection by Proximity.
  • Light Weight, Robust, and Compact.
  • The Max Detection Range Can be 500kV.
  • The measuring wire is Horizontal with the lighting lamp placed vertical to it.
  • The reminding distance is about 5cm when testing 240V voltage.
  • The corresponding voltage reminder distance for other range tests is about 20cm.
  • The closer the instrument is to the wire, the lower the voltage will be.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.NO.DE.00036
Product TypeDetectors
Model NoHP500
Basic Functions Range
Frequency Range 40 ~ 70Hz
Voltage Ranges 240V, 3.3kV, 11kV, 33kV, 66kV, 110kV, 220kV, 330kV, 500kV
Off Test 240V-69kV-115kV-138kV-230kV-500kV
Power 9V (6F22) X 1
Package Contents Manual & warranty card
Dimension 115 (D) x 115 (W) x 169 (H) mm
