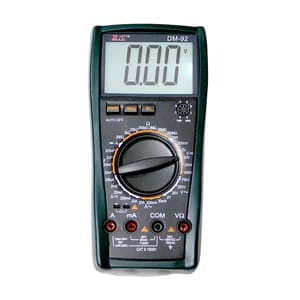

HTC 3-1/2 Digit / 1999 Count Digital Manual Multimeter With Auto Power Off, DM-92
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Transistor hFE Test (Range): NPN Or PNP
- Transistor hFE Test (Test Range): 0 - 1000
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,657 (Incl. of all taxes)
₹1,404 + ₹253 GST (18%)
MRP was MRP ₹1,755
Save 20%
5 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available

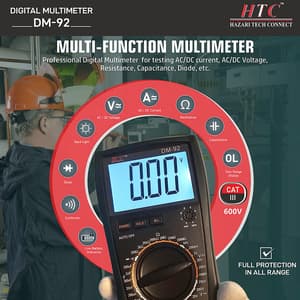

Highlights
- 3½ Digit Manual Multimeter with Backlight.

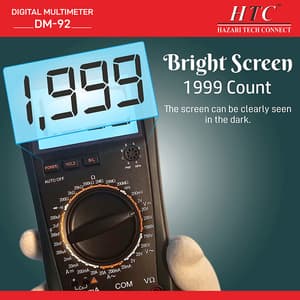

- 1,999 Count.
- Auto Power Off (APO) under natural operation.
- Full protection in All Ranges.
Special Function:
- Diode Test Anti Shock Protect.
- Transistor Testing Input impedance 10MΩ
- Continuity Buzzer Approx. <30Ω+10Ω Sampling Rate 3 times per second.

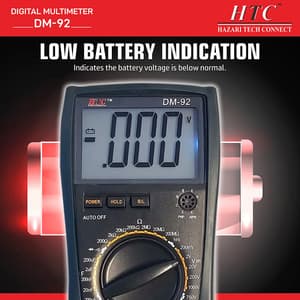

- Low Battery Display Approx. <7.5V AC Frequency Response 40-400Hz.
- Auto Power OFF Approx. 30min. Power 9V (6F22) X 1.

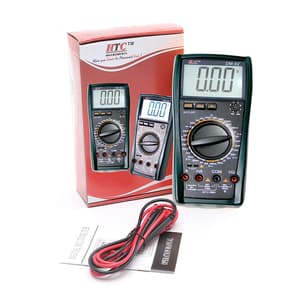

Package Contents:
- Test Lead,
- Manual.
DC Voltage:
| Range | Resolution | Accuracy |
| 200mV | 0.1mV | ±0.5% of rdg + 3 digits |
| 2V | 1mV | |
| 20V | 10mV | |
| 200V | 100Mv | |
| 1000V | 1V | ±1.0% of rdg + 3 digits |
AC Voltage:
| Range | Resolution | Accuracy |
| 2V | 1mV | ±0.8% of rdg + 5 digits |
| 20V | 10mV | |
| 200V | 100mV | |
| 750V | 1V | ±1.2% of rdg + 5 digits |
DC Current:
| Range | Resolution | Accuracy |
| 200µA | 0.1µA | ±0.8% of rdg + 3 digits |
| 2mA | 1µA | |
| 20mA | 10µA | |
| 200mA | 100µA | ±1.2% of rdg + 4 digits |
| 20A | 10mA | ±2.0% of rdg + 5 digits |
AC Current:
| Range | Resolution | Accuracy |
| 20mA | 10µA | ±1.0% of rdg + 5 digits |
| 200mA | 100µA | ±2.0% of rdg + 5 digits |
| 20A | 10mA | ±3.0% of rdg + 10 digits |
Capacitance:
| Range | Resolution | Accuracy |
| 20nF | 10pF | ±2.0% of rdg + 20 digits |
| 200nF | 100pF | |
| 2µF | 1nF | |
| 200µF | 100nF | ±2.5% of rdg + 20 digits |
Resistance:
| Range | Resolution | Accuracy |
| 200Ω | 0.1Ω | ±0.8% of rdg + 5 digits |
| 2kΩ | 1Ω | ±0.8% of rdg + 3 digits |
| 20kΩ | 10Ω | |
| 200kΩ | 100Ω | |
| 2MΩ | 1KΩ | |
| 20MΩ | 10KΩ | ±1.0% of rdg + 15 digits |
| 200MΩ | 100KΩ | ±5.0% of rdg – 10 digits + 20 digits |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Transistor hFE Test (Range) | NPN Or PNP |
|---|---|
| Transistor hFE Test (Test Range) | 0 - 1000 |
| Transistor hFE Test (Test Current / Voltage) | Base DC Current Is Approx. 10μA, Vce Is Approx. 3V |
| Dimension | 185 (H) x 93 (W) x 35 (D) mm |
