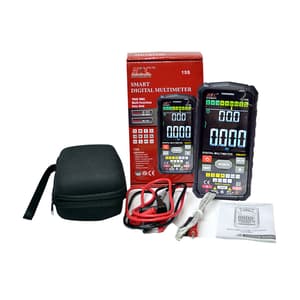

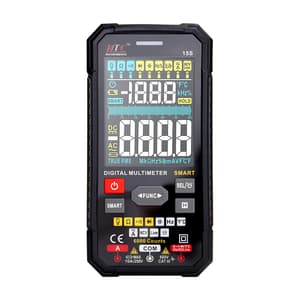

HTC 3-3/4 Digit / 6000 Count True RMS Smart Digital Multimeter, DM-15S
Roll over image to zoom zoom_in
- Weight: 182 Grams
- Product Type: Multimeter
- Display: VA
- Backlight: Yes
- Counts: 6000
- Analog Bar: Yes
- Gear Display: Yes
- Power: 4×1.5V AAA
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹1972.96 (Incl. of all taxes)
₹1672+ ₹300.96 GST (18%)
MRP ₹2090
SAVE 20%
5 Business Days
1 Set
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- 3¾ Digits.
- 5,999 Counts.
- Colour Display.
- True RMS.
- Data Hold.
- Duty Cycle.
- Auto Power Off (Apo)
- Live Wire Detection.
- Fuse Burn Indication.
- Input Jack Indication.
Technical Specification:
| Function | Range |
| DC Voltage | 600mV/60V/600V |
| AC Voltage | 6V/60V/600V |
| DC Current | 600mA/6A/10A |
| AC Current | 600mA/6A/10A |
| Resistance | 600Ω/6kΩ/60KΩ/600KΩ/6MΩ/60MΩ |
| Capacitance | 6nF/60nF/600nF/6μF/ 60μF/600μF/6mF/60mF |
| Frequency | 6Hz/60Hz/600Hz/6kHz/60KHz/ 600kHz/6MHz/10MHz |
| Duty | 1.0-99.0% |
| Temperature | -40°C~1000°C(-40″F~1832°F)(K-type) |
| Diode | 0-3V |
| NCV | Audio and light alarm |
| Live | Audio and light alarm |
| Continuity | 50Ω |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00129 |
|---|---|
| Product Type | Multimeter |
| Model No | DM15S |
| Display | VA |
| Auto / Manual Range | Auto |
| Backlight | Yes |
| The Probe Insert Error Tips | Yes |
| Low Battery Indication | Yes |
| Input jack Indication | Yes |
| Fuse Burnt Indication | Yes |
| Counts | 6000 |
| Analog Bar | Yes |
| Gear Display | Yes |
| Power | 4×1.5V AAA |
| Safety Rating | EN61010-1, CAT III 600V |
| Dimension | 146 (H) x 73 (W) x 26 (D) mm |
