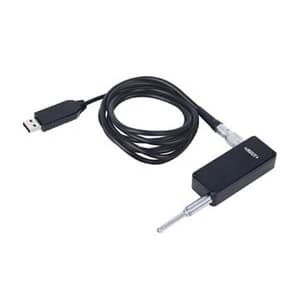

Insize 0 - 12.5 mm High Precision Digital Linear Gauge, 7130-10
Roll over the image to zoom in
Key Features
- Product Type: Linear Gauge
- Range (mm): 0 - 12.5 mm
- Repeatability: 0.5μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹28,601 (Incl. of all taxes)
₹24,238 + ₹4,363 GST (18%)
MRP was MRP ₹34,626
Save 30%
3 Business Days
1
90319000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights
- Scale type: optical grating
- Absolute encoder, the original data remains after power off
- Digital signal output, amplifier is not required
- Measuring force: ≤1.5N
- Dust/waterproof: IP43/IP66
- Baud rate: 9600 (can be customized)
- Cable length: 3m (can be customized)
- Optional accessory: software of linear gauge (code: 7130-SOFTWARE, 8 probes can be connected at the same time, need to purchase
the corresponding hubs)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 0 - 12.5 mm |
|---|---|
| Repeatability | 0.5μm |
| Accuracy | 1μm |
| Resolution | 0.1μm |
| Outgoing Cable Direction | Horizontal |
| Output Signal | RS232, TTL Level |
