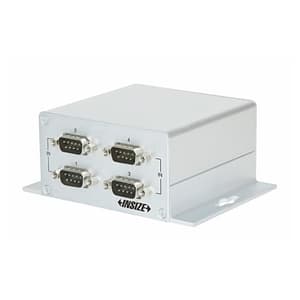

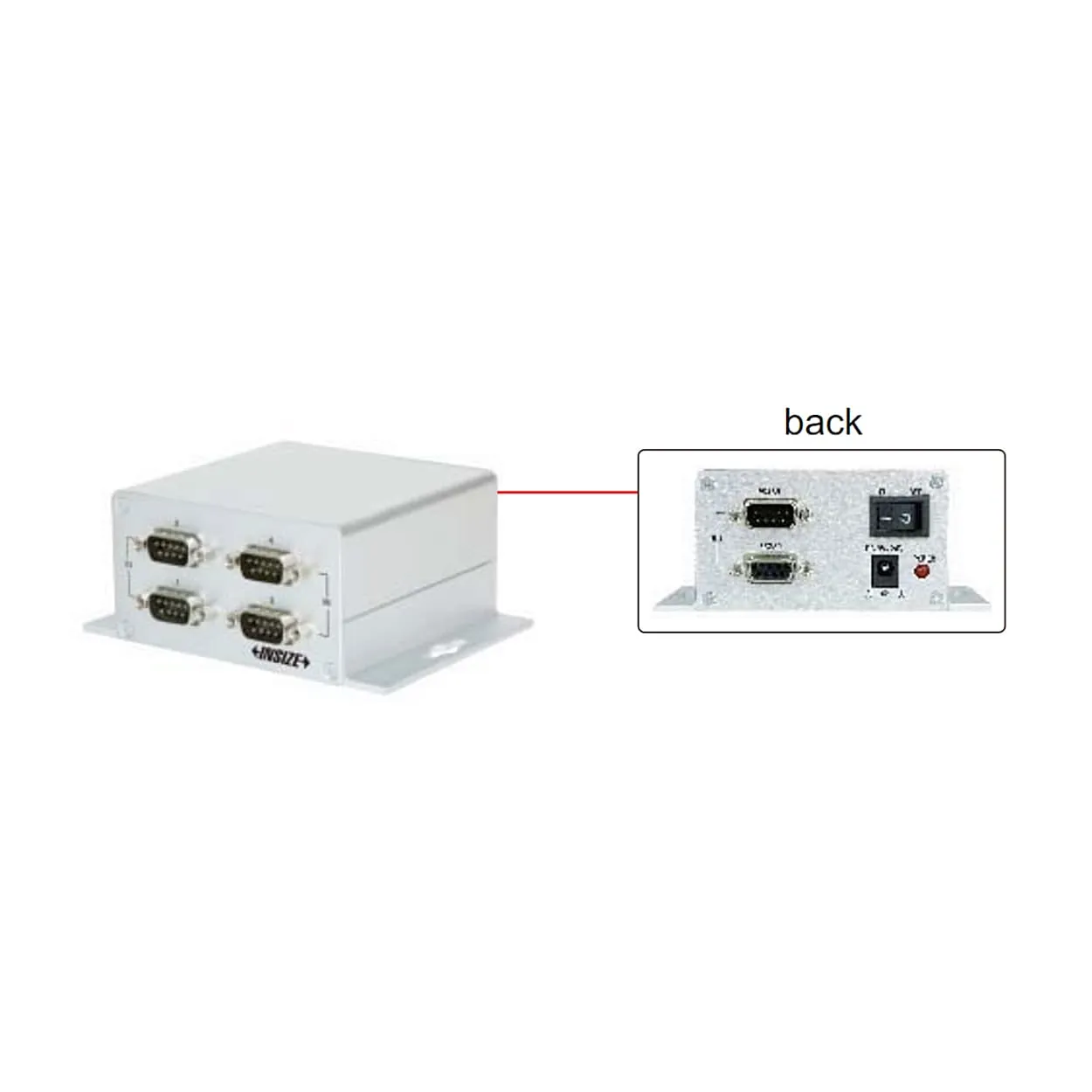

Insize Multichannel Interface Boxe for Capacitance Linear Gauge, 7107-1
Roll over image to zoom zoom_in
- Product Type: Linear Gauge
- Data Output: RS232 & RS485
- Power Supply: DC 9 ~ 24V
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹10529.14 (Incl. of all taxes)
₹8923+ ₹1606.14 GST (18%)
MRP ₹13728
SAVE 35%
3 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

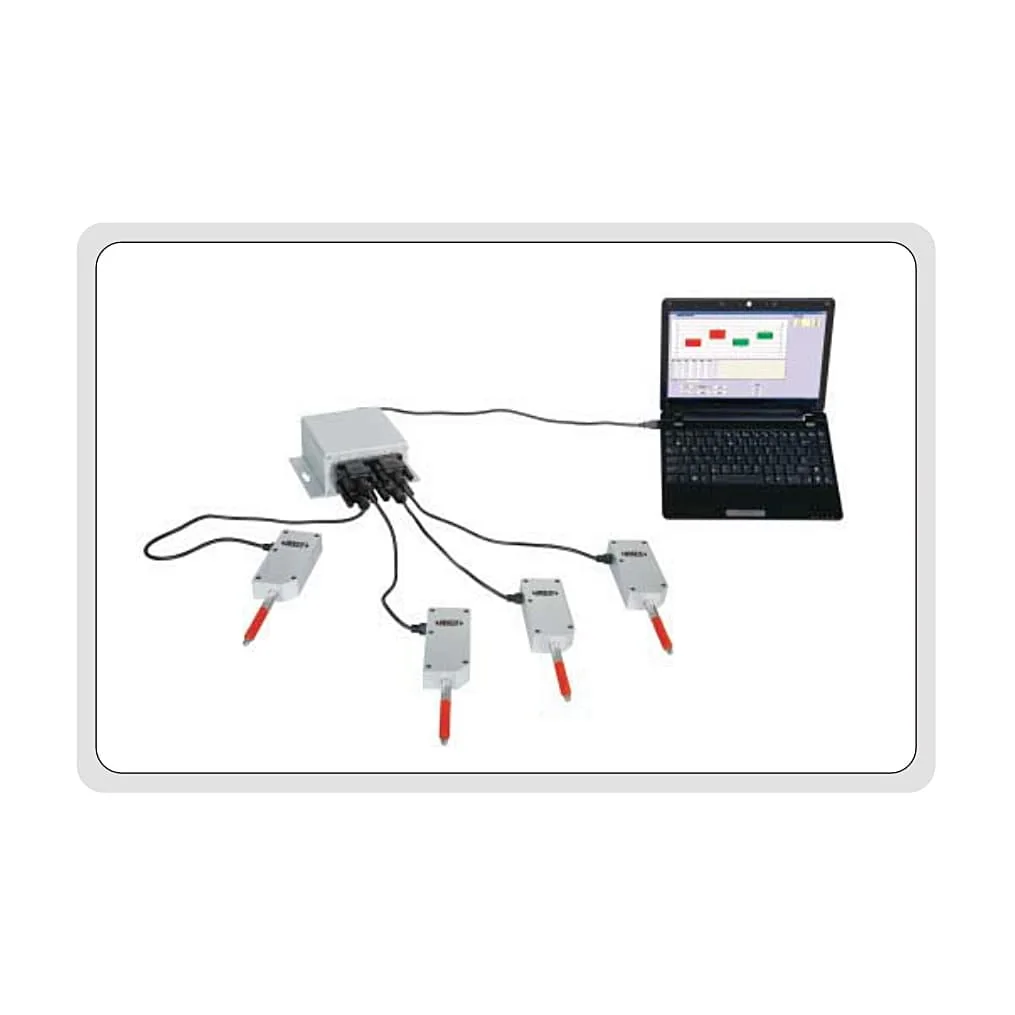

- Can be connected with 7107-11, 7107-12, 7107-11V or 7107-12V linear gages, can also be connected with digital indicators (data cable 7309-C01M is needed)
- Connection box (code: 7107-3) is needed to connect interface boxes, when two or more interface boxes are used. Maximum 4 interface boxes can be connected.

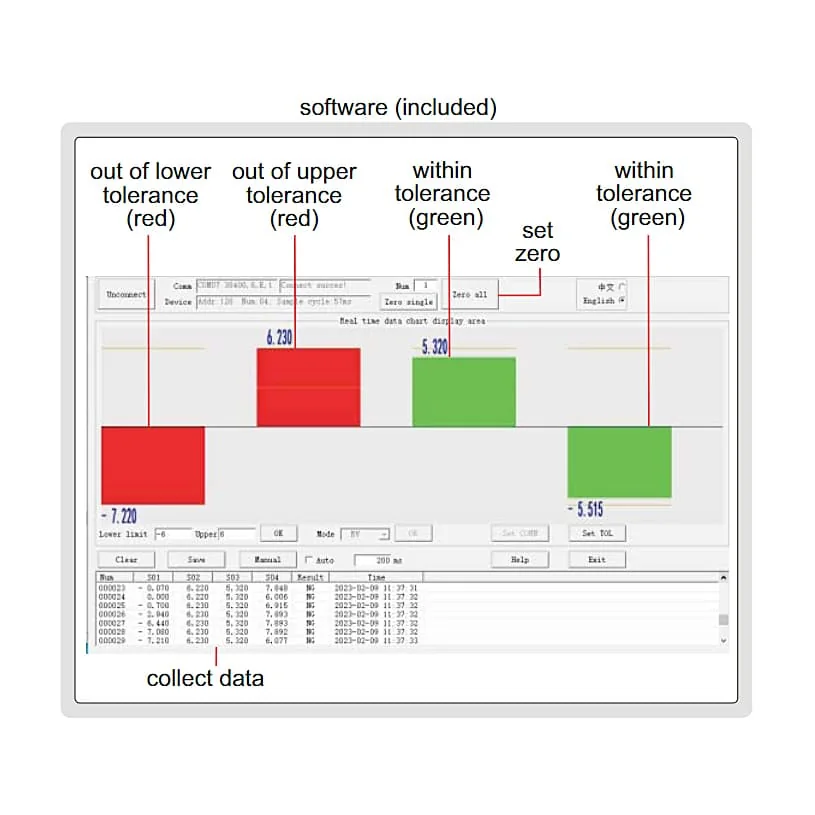

- Software of interface boxes (included): in the software, it is possible to set tolerance of each channel and show judgment (red when out of tolerance, green when within tolerance), set zero, collect data manually or automatically (time is adjustable), output data to Excel, print report.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.LI.00003 |
|---|---|
| Product Type | Linear Gauge |
| Model No | 7107-1 |
| Quantity of Linear Gauges or Digital Indicators to be Connected | 4 Pcs |
| Data Output | RS232 & RS485 |
| Power Supply | DC 9 ~ 24V |
