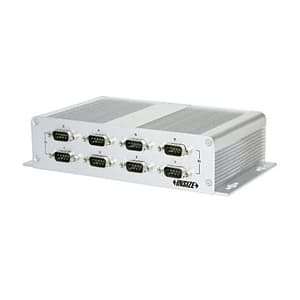

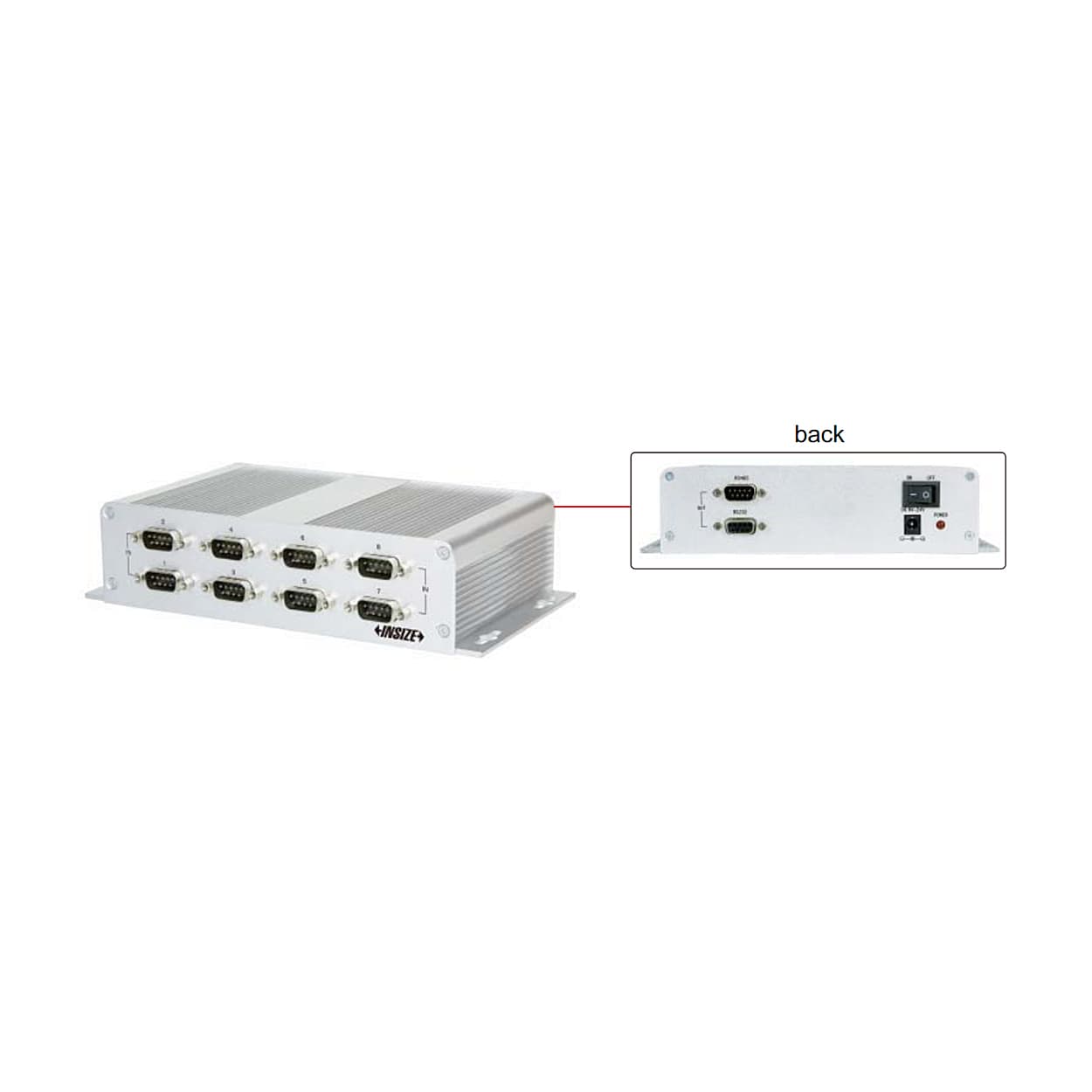

Insize Multichannel Interface Boxe for Capacitance Linear Gauge, 7107-2

Name: Insize Multichannel Interface Boxe for Capacitance Linear Gauge, 7107-2
Brand: Insize
SKU: ME.DI.LI.00004
Price: 14676 INR
Availability: InStock
Rating: 3.5 (55 reviews)

Shop all Insize

SKU: ME.DI.LI.00004

Model: 7107-2

Roll over image to zoom zoom_in

Visit Insize Store keyboard_double_arrow_right

Key Features

Product Type: Linear Gauge
Data Output: RS232 & RS485
Power Supply: DC 9 ~ 24V

See all product information chevron_right

ToolBuy Benefits

receiptGST Invoice
headphonesCustomer Service
lockSecure Payments
policyReturns & Warranty
home_pinOrder Tracking
paymentsBuy in Installments

₹17317.68 (Incl. of all taxes)

₹14676+ ₹2641.68 GST (18%)

MRP ₹22579

SAVE 35%

Dispatch: 3 Business Days

Items in Pack: 1 Pcs

HSN Code: 90318000

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right

picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right

picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

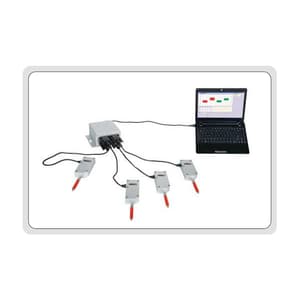

Can be connected with 7107-11, 7107-12, 7107-11V or 7107-12V linear gages, can also be connected with digital indicators (data cable 7309-C01M is needed)
Connection box (code: 7107-3) is needed to connect interface boxes, when two or more interface boxes are used. Maximum 4 interface boxes can be connected.

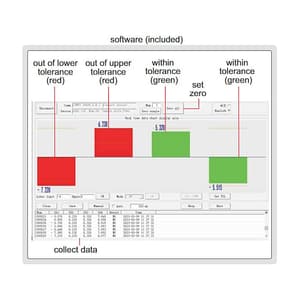

Software of interface boxes (included): in the software, it is possible to set tolerance of each channel and show judgment (red when out of tolerance, green when within tolerance), set zero, collect data manually or automatically (time is adjustable), output data to Excel, print report.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKU	ME.DI.LI.00004
Product Type	Linear Gauge
Model No	7107-2
Quantity of Linear Gauges or Digital Indicators to be Connected	8 Pcs
Data Output	RS232 & RS485
Power Supply	DC 9 ~ 24V
