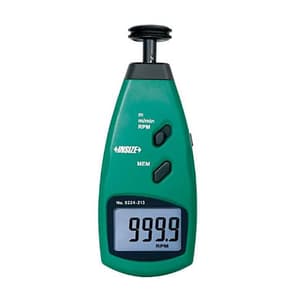

Insize 0.5 - 19999 RPM Contact Tachometer, 9224-213
Roll over the image to zoom in
Key Features
- Product Type: Tachometer
- Weight: 162 g
- Sampling time: 0.8 second (above 60RPM)
- Power supply: 3 x AA Batteries
- Dimensions: 171 x 71 x 35 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,259 (Incl. of all taxes)
₹3,609 + ₹650 GST (18%)
MRP was MRP ₹5,155
Save 30%
3 Business Days
1
902920
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Can measure rotary speed, line speed and line length
- Automatically save the maximum value, minimum value and the last value, 96 data can be stored during continuous measurement
- With backlight display
| Measuring range | Rotary speed | 0.5~19999 RPM |
| Line speed | 0.05~500 m/min | |
| Line length | 0.05~9999m | |
| Resolution | Rotary speed | 0.1RPM (range0.5~999.9RPM), 1RPM (range 1000~19999RPM) |
| Line speed | 0.01m/min (range 0.05~99.99m/min), 0.1m/min (range 100~500 m/min) |
|
| Line length | 0.02m | |
| Accuracy | Rotary speed | ±(0.4%n+1d)RPM (n<300RPM), ±(0.04%n+1d)RPM (n>=300RPM), n is rotary speed, d is resolution |
| Line speed | ±(1%+1d)m/min d is resolution | |
| Line length | ±(1%+1d)m/ d is resolution |

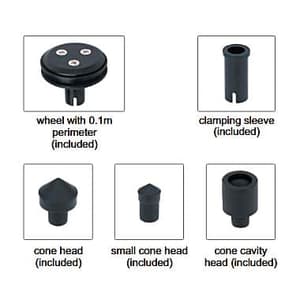

Standard Delivery:
| Main unit | 1 pc |
| Wheel with 0.1m perimeter | 1 pc |
| Clamping sleeve | 1 pc |
| Cone head | 1 pc |
| Small cone head | 1 pc |
| Cone cavity head | 1 pc |
| Battery (AA) | 3 pcs |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Sampling time | 0.8 second (above 60RPM) |
|---|---|
| Operating teamperature | 0~40°C |
| Power supply | 3 x AA Batteries |
| Dimensions | 171 x 71 x 35 mm |
