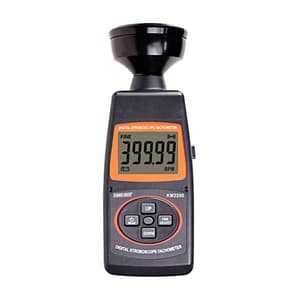

The stroboscope is a rotational speed-measuring instrument that makes use of the persistence of vision (when the light source flashing at the set frequency is synchronized with the rotational speed of the object, a relatively static visual persistence phenomenon occurs). When observing an object rotating at a high speed or moving, by adjusting its flickering frequency to be close to and synchronizing with the rotation or moving speed of the measuring object, the measured object looks to be moving slowly or static although moving at a high speed, this optical phenomenon of persistence of vision makes it easy to observe the motion of high-speed moving objects with the naked eyes.

In this way, it is possible to measure the rotational speed of various types of rotating objects without contact, as well as to detect the motion state and surface defects of the object. Its application is very wide, such as various types of rotors, gear meshing, vibration equipment diagnostics, textile, printing, production lines and other high-speed rotating object surface defects and motion trajectories.

Features:

• Advanced technologies such as micro-computer technology (CPU), software frequency generator & anti-jamming technology are applied to conduct non-contact measurement of rotation speed, as well as to inspect the status of moving objects and detect defects on the surface.
• Large LCD with backlight ensures clear readings and no parallax.
• Two adjustment ways: single-step adjustment (coarse/fine adjustment) and continuous adjustment (coarse/fine adjustment) for easy measurement.
• With a data storage function, it can store 10 commonly used stroboscopic data, which can be called up at any time, very conveniently and quickly.
• There are special backlight and flash control switches, saving battery power.
• The power supply uses four AA 3.7V lithium-ion rechargeable batteries (14500) to ensure long-lasting power. When the voltage is lower than the specified voltage, it will automatically prompt.
• 60 high-brightness LED flash heads, double the brightness and more convenient to use (observe).
• The structure is sturdy and exquisite. The Stroboscope adopts durable and high-quality electronic components. The outer casing is made of lightweight and hard ABS+PC engineering plastic. It has a beautiful appearance and a convenient carrying case.
• Resolution - <400RPM: 0.01RPM / FPM; <4000RPM: 0.1RPM / FPM; <40000RPM : 1RPM / FPM

Coarse/fine-tuning range:

<400RPM	Coarse: 1RPM / FPM Fine: 0.01RPM / FPM
<4000RPM	Coarse: 10RPM / FPM Fine: 0.1RPM / FPM
<40000RPM	Coarse: 100RPM / FPM Fine: 1RPM / FPM



Package Content:

• Instrument
• Rechargeable 4 batteries
• battery charger
• User Manual
• Reflective tape 1pc
• Carrying case
