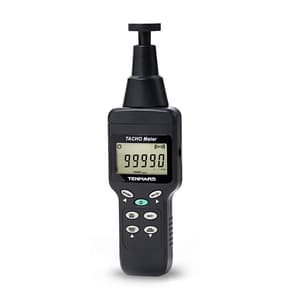

Tenmars Contact & Non-Contact Digital Tachometer, TM-4100
Roll over the image to zoom in
Key Features
- Product Type: Tachometer
- Weight: 200 g
- Display: 6 Digits Backlit LCD
- Measurement Distance: 50 to 500 mm (1.58 to 19.7 inch)
- Memory Capacity: 300 Data Sets
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹20,390 (Incl. of all taxes)
₹17,280 + ₹3,110 GST (18%)
7 Business Days
1
–
Download Tenmars CatalogueNot available
Highlights
TM-4100 Tacho Meter can be used for various types of equipment such as conveyors, cooling equipment, dryers, elevators, windmills, rotary feeders and grinders. It is available for contact (with 4100K tool kit) and non-contact applications. The non-contact can measure from 40mm up to 500mm
Features:
- Large LCD 6 digits with backlit.
- Measuring by the output of red visible-spectrum light.
- Measuring indicator: The LCD display RING with a buzzer sound (or off)
|
Accuracy |
AVG ON |
AVG OFF |
|
Up to 9,999 counts |
±1dgt |
±10dgt |
|
10,000 counts |
±2dgt |
±20dgt |
|
20,000 counts or more (r/min mode only) |
±20dgt |
±100dgt |
|
Period measurement only |
±0.5% rdg is added to above-mentioned accuracy |
|
Period measurement (ms)
|
1 |
0.6000 to 1.9999 |
0.6000 to 1.9990 |
- |
- |
|
2 |
2.000 to 19.999 |
2.000 to 19.990 |
3.000 to 19.999 |
3.000 to 19.990 |
|
|
3 |
20.00 to 199.99 |
20.00 to 199.90 |
20.00 to 199.99 |
20.00 to 199.90 |
|
|
4 |
200.0 to 1999.9 |
- |
200.0 to 3999.9 |
200.0 to 399.0 |
|
|
Count measurement (count) |
1 |
0 to 999999 (input conditions up to rotational speed measurement upper limit) |
|
Mode
|
Range
|
Contactless measurement |
Contact measurement |
||
|
AVG=ON |
AVG=OFF |
AVG=ON |
AVG=OFF |
||
|
Rotational speed measurement (r/m) |
1 |
30.00 to 199.99 |
- |
15.00 to 199.99 |
- |
|
2 |
200.0 to 1999.9 |
300.0 to 1999.0 |
200.0 to 1999.9 |
150.0 to 1999.0 |
|
|
3 |
2000 to 19999 |
2000 to 19990 |
2000 to 19999 |
2000 to 19999 |
|
|
4 |
20000 to 99990 |
20000 to 99990 |
- |
- |
|
|
Rotational speed measurement (r/s |
1 |
0.5000 to 1.9999 |
- |
0.2500 to 1.9999 |
- |
|
2 |
2.000 to 19.999 |
5.000 to 19.990 |
2.000 to 19.999 |
2.500 to 19.990 |
|
|
3 |
20.00 to 199.99 |
20.00 to 199.90 |
20.00 to 199.99 |
20.00 to 199.90 |
|
|
4 |
200.0 to 1600.0 |
200.0 to 1600.0 |
200.0 to 333.0 |
200.0 to 333.0 |
|
Speed Measurement |
Range |
AVG ON |
AVG OFF |
|
m/min
|
1 |
1.500 to 19.999 |
- |
|
2 |
20.00 to 199.99 |
15.00 to 199.90 |
|
|
3 |
200.0 to 1999.9 |
200.0 to 1999.0 |
|
|
m/s
|
1 |
0.0250 to 1.9999 |
0.2500 to 1999.0 |
|
2 |
2.000 to 19.999 |
2.000 to 19.990 |
|
|
3 |
20.00 to 33.30 |
20.00 to 33.30 |
Package Content:
- 1x Tacho Meter
- 1x Battery
- 1x Carrying Case
- 1x Reflective Tape
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 6 Digits Backlit LCD |
|---|---|
| Measurement Distance | 50 to 500 mm (1.58 to 19.7 inch) |
| Sampling Period | 62.5ms to 2s |
| Operating Temperature / Humidity | 0 ~ 40°C (25% to 75%RH) |
| Storage Temperature / Humidity | -10 ~ 60°C (0% to 80%RH) |
| Memory Capacity | 300 Data Sets |
| Power Supply | 1x 9V Battery |
| External Power | AC 100 ~ 240V to DC 9V/0.5A |
| Battery Life | About 30 Hours (Buzzer Off) |
| Dimensions (L x W x H) | 186 x 76 x 36 mm |
