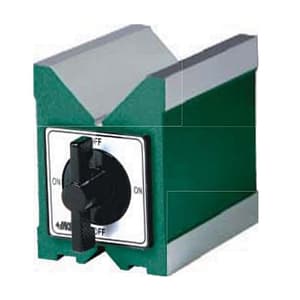

Insize 100 x 70 x 95 mm Magnetic 'V' Block (Not Hardend), 6801-1202
Roll over the image to zoom in
Key Features
- Product Type: Magnetic 'V' Blocks
- Length (mm): 100 mm
- Width (mm): 70 mm
- Height (mm): 95 mm
- Range of shafts (d): 6-67 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹9,334 (Incl. of all taxes)
₹7,910 + ₹1,424 GST (18%)
MRP was MRP ₹11,632
Save 32%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Individual
- Parallelism of V grooves to top, bottom, left, right side: 10 pm
- Squareness of V grooves to backside: 10μm
- Hold cylindrical workpieces for inspection and machining
- Supplied in a single piece

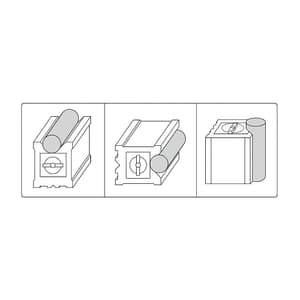

- V groove on the top for large shafts
- V groove on the bottom for small shafts
- Not suitable for steel or iron surfaces, otherwise the magnetic force will be reduced.
Attention:
- Not Hardened
- Not Suitable For Steel or Iron Surfaces, Otherwise The Magnetic Force Will Be Reduced
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Length (mm) | 100 mm |
|---|---|
| Width (mm) | 70 mm |
| Height (mm) | 95 mm |
| Range of shafts (d) | 6-67 mm |
| Magnetic force | 80 kgf |
| Parallelism of Vgrooves to top, bottom left right side | 10 um |
| Squareness of V grooves to back side | 10 um |
