Insize 120 x 70 x 95 mm Magnetic 'V' Block (Not Hardend), 6801-3
Roll over image to zoom zoom_in
- Product Type: Magnetic 'V' Blocks
- Length (mm): 120 mm
- Width (mm): 70 mm
- Height (mm): 95 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹21898.44 (Incl. of all taxes)
₹18558+ ₹3340.44 GST (18%)
MRP ₹26512
SAVE 30%
3 Business Days
1 Pcs
8505
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Matched Pair, Economic Type

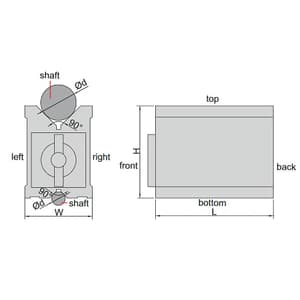

- Parallelism of V grooves to top, bottom, left, right side: 10µm
- Squareness of V grooves to backside: 10μm
- Height Difference of a matched pair: 10µm

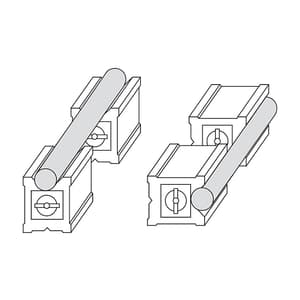

- Hold cylindrical workpieces for inspection and machining
- V groove on the top for large shafts
- V groove on the bottom for small shafts
- Not suitable for steel or iron surfaces, otherwise the magnetic force will be reduced.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | HA.MA.MA.00238 |
|---|---|
| Product Type | Magnetic 'V' Blocks |
| Model No | 6801-3 |
| Length (mm) | 120 mm |
| Width (mm) | 70 mm |
| Height (mm) | 95 mm |
| Range of shafts (d) | 6 - 67 mm |
| Magnetic force | 96 kgf |
