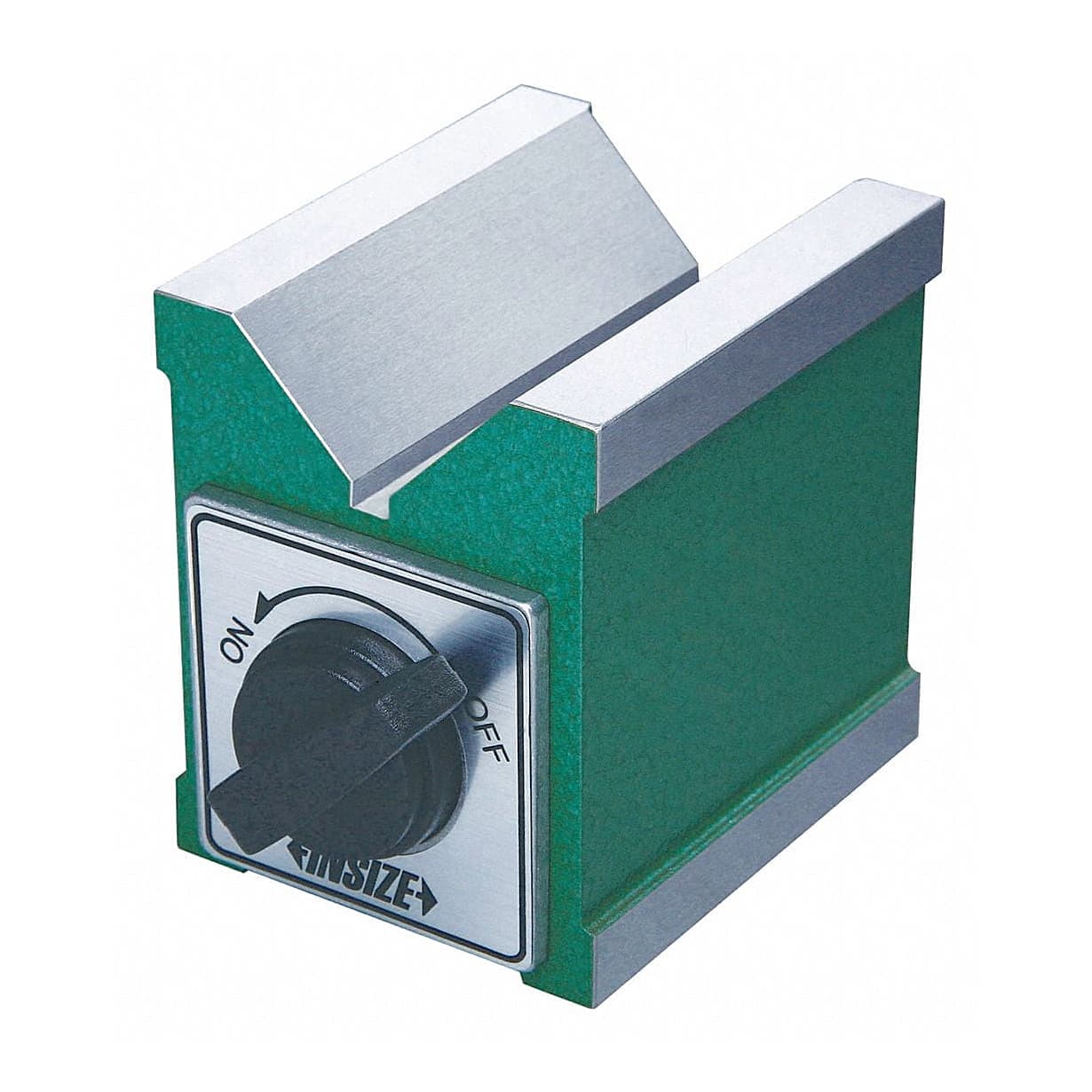

Insize 120 x 70 x 95 mm Magnetic 'V' Block (Hardend Surface), 6801-3A
Roll over the image to zoom in
Key Features
- Product Type: Magnetic 'V' Blocks
- Length (mm): 120 mm
- Width (mm): 70 mm
- Height (mm): 95 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹49,069 (Incl. of all taxes)
₹41,584 + ₹7,485 GST (18%)
MRP was MRP ₹59,406
Save 30%
3 Business Days
1
90319000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights
- Matched Pair
- Parallelism of V grooves to top, bottom, left, right side: 10µm
- Squareness of V grooves to backside: 10μm
- Height Difference of a matched pair: 10µm
- Hold cylindrical workpieces for inspection and machining
- V groove on the top for large shafts
- V groove on the bottom for small shafts
- Not suitable for steel or iron surfaces, otherwise the magnetic force will be reduced.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Length (mm) | 120 mm |
|---|---|
| Width (mm) | 70 mm |
| Height (mm) | 95 mm |
| Range of shafts (d) | 6 - 67 mm |
| Magnetic force | 96 kgf |
