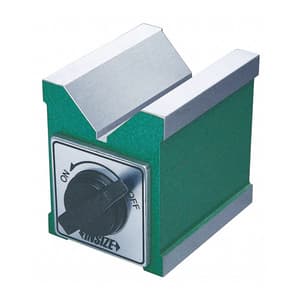

Insize 70 x 60 x 73 mm Magnetic 'V' Block (Hardend Surface), 6890-702A
Roll over the image to zoom in
Key Features
- Product Type: Magnetic 'V' Blocks
- Length (mm): 70 mm
- Width (mm): 60 mm
- Height (mm): 73 mm
- Range of shafts (Ød): 6-44 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹10,482 (Incl. of all taxes)
₹8,883 + ₹1,599 GST (18%)
MRP was MRP ₹12,338
Save 28%
3 Business Days
1
90319000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights

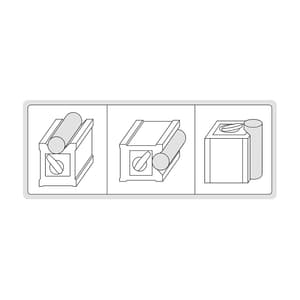

- Hold cylindrical workpieces for inspection and machining
- Supplied in a single piece
- Not suitable for steel or iron surfaces, otherwise the magnetic force will be reduced
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

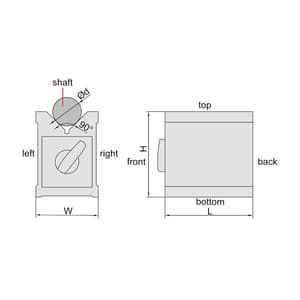

Specifications
| Length (mm) | 70 mm |
|---|---|
| Width (mm) | 60 mm |
| Height (mm) | 73 mm |
| Range of shafts (Ød) | 6-44 mm |
| Magnetic force | 56 kgf |
| Parallelism of Vgrooves to top, bottom left & right side | 10 μm |
| Squareness of V grooves to back side | 10 um |
