Insize 150 x 100 x 200 mm Vision Measuring System With Computer, ISD-V150A
Roll over image to zoom zoom_in
- Weight: 100 Kg
- Product Type: Optical Measuring
- Stage size: 354 x 228 mm
- Objective: 0.7X~4.5X (zoom)
- Operation system: Windows 7/8/10
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹370509.38 (Incl. of all taxes)
₹313991+ ₹56518.38 GST (18%)
MRP ₹461751
SAVE 32%
5 Business Days
1 Set
90112000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
Vision Measuring System with computer and without desk
Standard Delivery:
| Main unit | 1 pc |
| Computer | 1 pc |
| Calibration glass chart | 1 pc |
| Clay | 1 pc |
| Foot switch | 1 pc |
| Foot switch | 1 pc |
Optional Accessory:
| 0.5X auxiliary objective | Code: ISD-V-OB05X Working distance: 175mm Magnification: 16.5~97.5X (on 19'' monitor) |
| 2X auxiliary objective | Code: ISD-V-OB2X Working distance: 36mm Magnification: 66~390X (on 19'' monitor) |

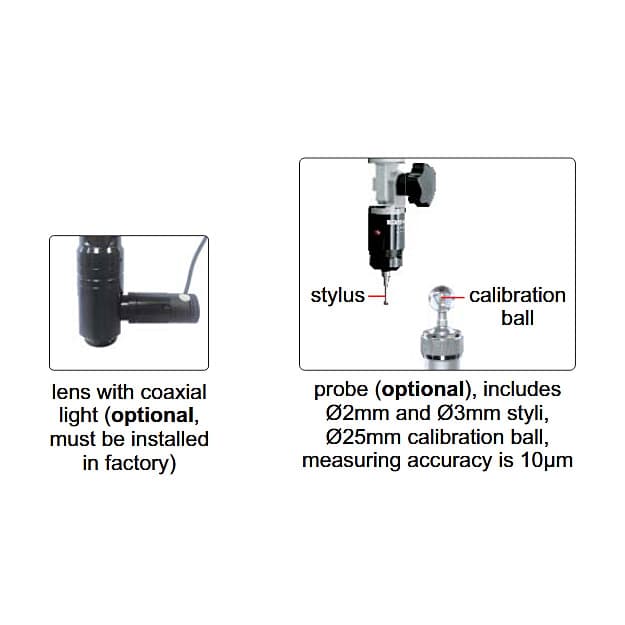

| Probe | Code: ISD-V-PROBE lncludes Ø2mm and Ø3mm styli, Ø25mm calibration ball |
| Vision measuring system with coxial light lens (with computer) | Code: ISD-V150ACL, ISD-V250ACL, ISD-V300ACL, ISD-V400ACL |
| Office software | Code: 7313-OFFICE |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.OP.00001 |
|---|---|
| Product Type | Optical Measuring |
| Model No | ISD-V150A |
| Measuring range (X x Y x Z) | 150 x 100 x 200 mm |
| Stage size | 354 x 228 mm |
| Glass stage size | 210 x 160 mm |
| Resolution of X/Y/Z axis | 0.5µm |
| Accuracy of X/Y axis | =(3.5+L/100)µm (L is the measuring length in mm) |
| Repeatability of X/Y axis | 2µm |
| Objective | 0.7X~4.5X (zoom) |
| Working distance | 92 mm |
| Magnification | 33X~195X (on 19'' monitor) |
| Camera | 1/3'' color CCD, 0.3M pixel |
| Illumination | surface and contour with adjustable LED |
| Max. height of workpiece | 200 mm |
| Max. weight of workpiece | 20 kg |

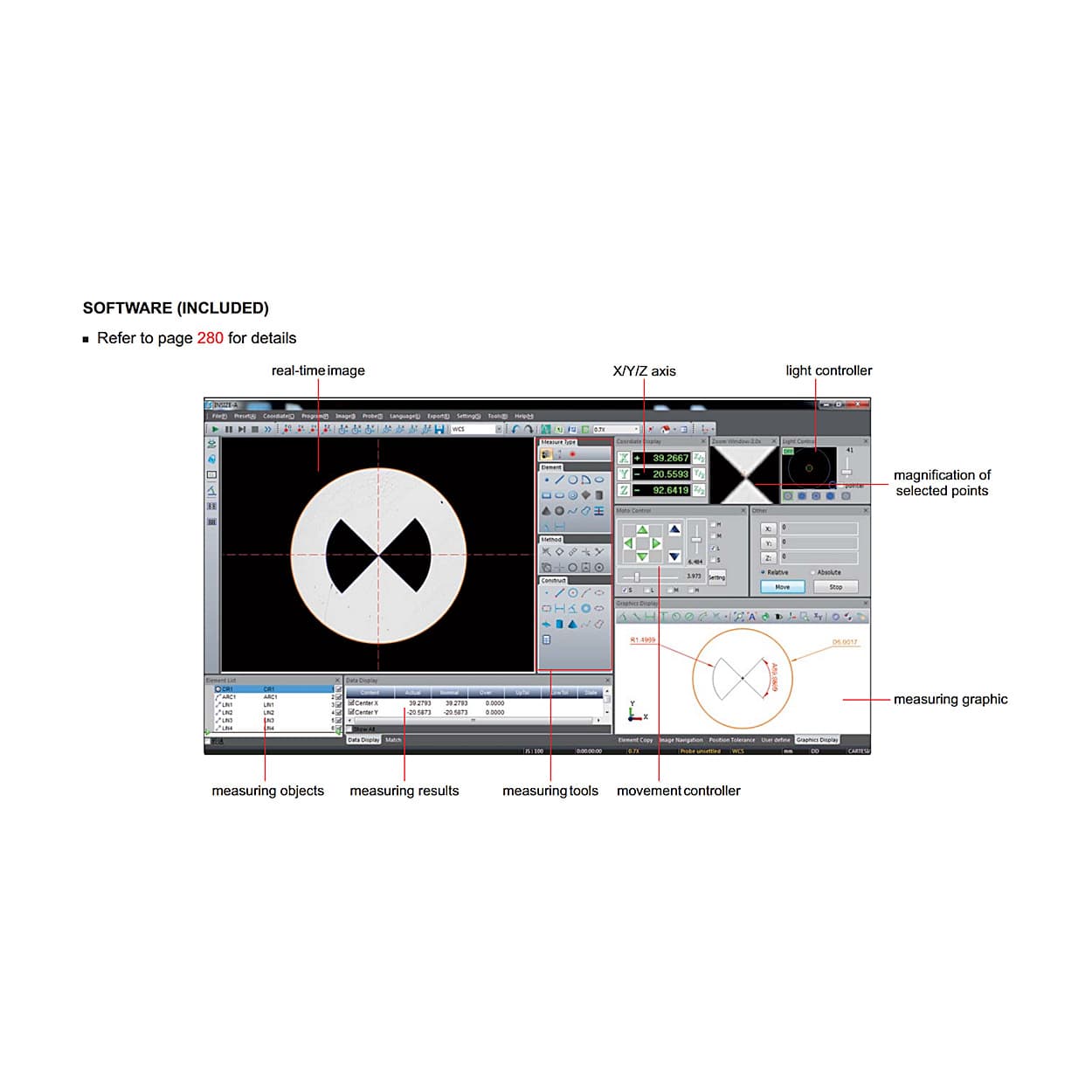

| Operation system | Windows 7/8/10 |
| Drive method | manual |
| Power supply | 110/220V, 50/60Hz |
| Dimension (L x W x H) | 560 x 540 x 850 mm |
