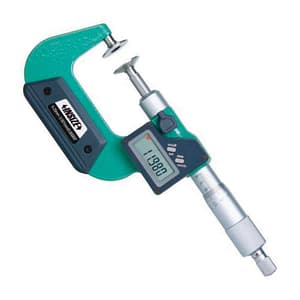

Insize 25 - 50 mm Digital Non-Rotating Spindle Disk Micrometer, 3594-50A
Roll over the image to zoom in
Key Features
- Product Type: Disk Micrometer
- Range (mm): 25 - 50 mm
- Range (Inches): 1 - 2 inch
- Accuracy: ±4μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹21,185 (Incl. of all taxes)
₹17,953 + ₹3,232 GST (18%)
MRP was MRP ₹25,647
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Non-rotating spindle / Data output

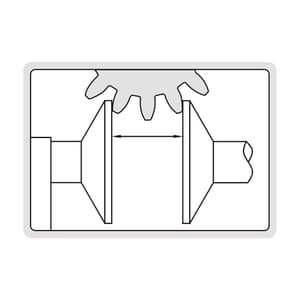

- Measure root tangent length of gear
- Button function: on/off, set, mm/inch, data transmit
- Automatic power off
- Ratchet stop
- Supplied with setting standards
- Optional accessory: data output cable (code 7315-31, 7302-30)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 25 - 50 mm |
|---|---|
| Range (Inches) | 1 - 2 inch |
| Accuracy | ±4μm |
| Paralleism | 5 μm |

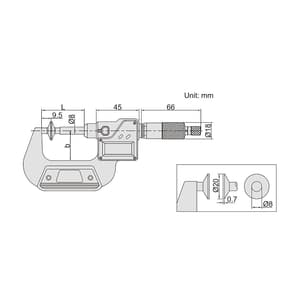

| Length (mm) | 68 mm |
| Breadth (mm) | 44.5 mm |
| Resolution | 0.001 mm / 0.00005 inch |
