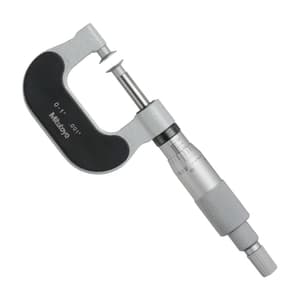

Mitutoyo 0 - 1 inch Paper Thickness Micrometer, 169-103-10
Roll over image to zoom zoom_in
- Weight: 230 Grams
- Product Type: Disk Micrometer
- Range (Inches): 0 - 1 inch
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹13646.7 (Incl. of all taxes)
₹11565+ ₹2081.7 GST (18%)
MRP ₹15420
SAVE 25%
1 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
This Disc Micrometer has a non-rotating spindle and allows you measure a range of different materials.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- It features a non-rotating spindle and disc-shaped measuring surfaces.
- Measuring the root tangent length of spur and helical gears
- Measurable range of gear pitch: 0,5-6 module

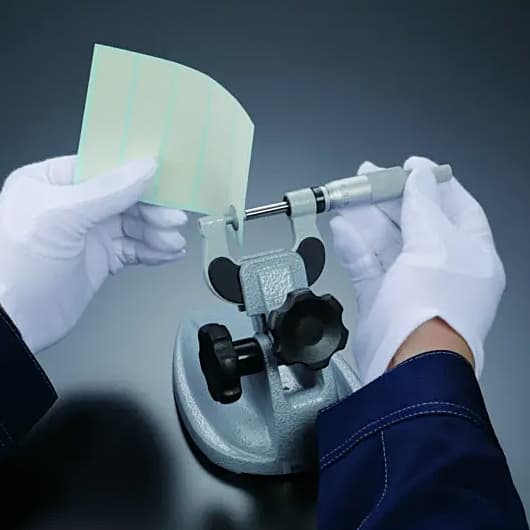

- It‘s suitable for measuring materials such as felt, rubber, cardboard and fabric.
- Non-Rotating Spindle Type Designed for Paper Thickness Measurement
Package Content:
- Disc Micrometer
- Spanner
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

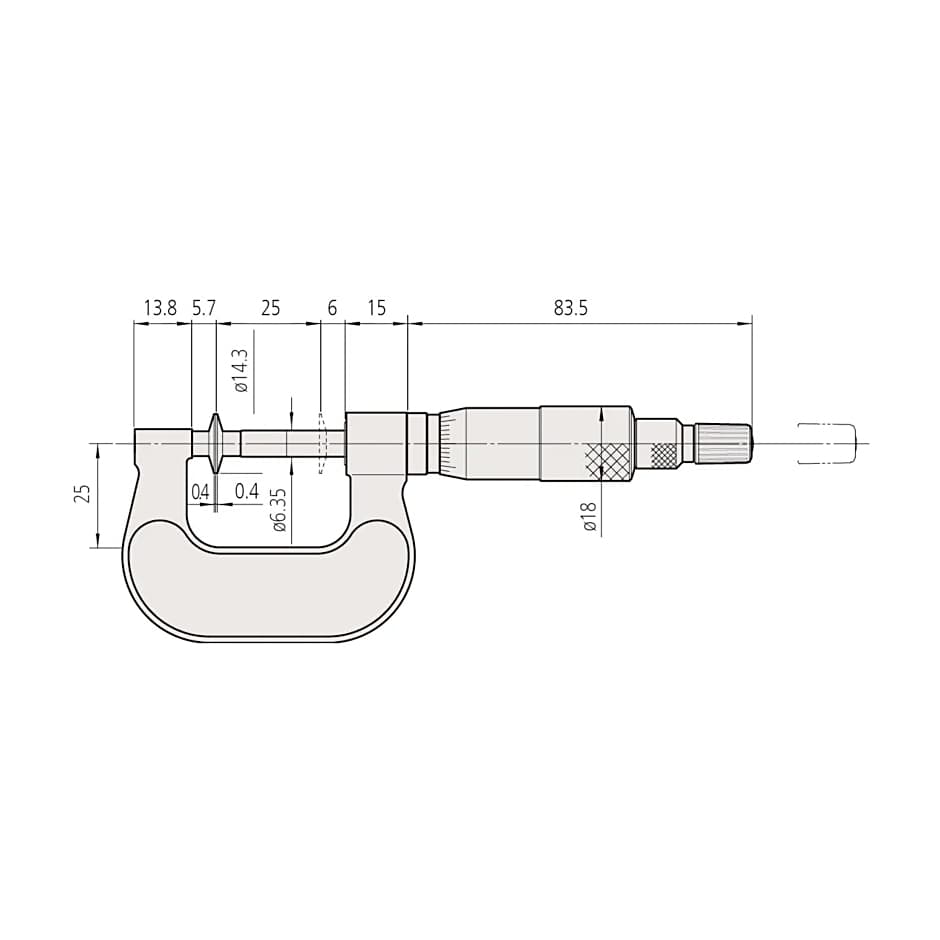

Specifications
| SKU | ME.MI.DI.00068 |
|---|---|
| Product Type | Disk Micrometer |
| Model No | 169-103-10 |
| Range (Inches) | 0 - 1 inch |
| Graduation | 0.01 inch |
| Max. Permissible Error JMPE | ±0,0002 inch |
| Anvil Dia (mm) | Ø18 mm |
| Spindle Pitch | 0.5 mm |
| Spindle Dia. | Ø6.35 mm |
| Flatness | 0.00004" |
| Parallelism | 0.00015" |
| Disk Size | 14.3 mm |
| Scale | Thimble & Sleeve Satin Chrome Finish |
| Spindle Type | Non-Rotating Spindle |
| Material | Hardened Steel, Micro-lap Finish |
