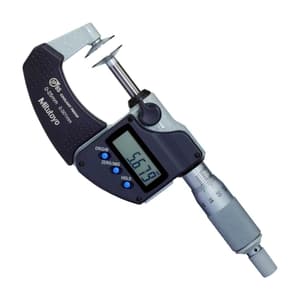

Mitutoyo 0 - 25 mm Digital Disk Micrometer, 323-250-30
Roll over image to zoom zoom_in
- Weight: 290 Grams
- Product Type: Disk Micrometer
- Range (mm): 0 - 25 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹33116.7 (Incl. of all taxes)
₹28065+ ₹5051.7 GST (18%)
MRP ₹37420
SAVE 25%
1 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
This Digimatic Disc Micrometer enables you to measure hard-to-reach features.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Measures "root tangent length" of spur gears and helical gears.
- Equipped with a Ratchet Stop for constant measuring force.
- You can measure recessed features that are difficult to reach with a standard micrometer.
Functions:
- ABS / INC (INC ZERO)
- Auto Power OFF after 20 min. non use
- Function lock
- HOLD
- Low-voltage alarm
- ORIGIN
Package Content:
- Disc Micrometer
- Spanner
- 1x SR44 battery

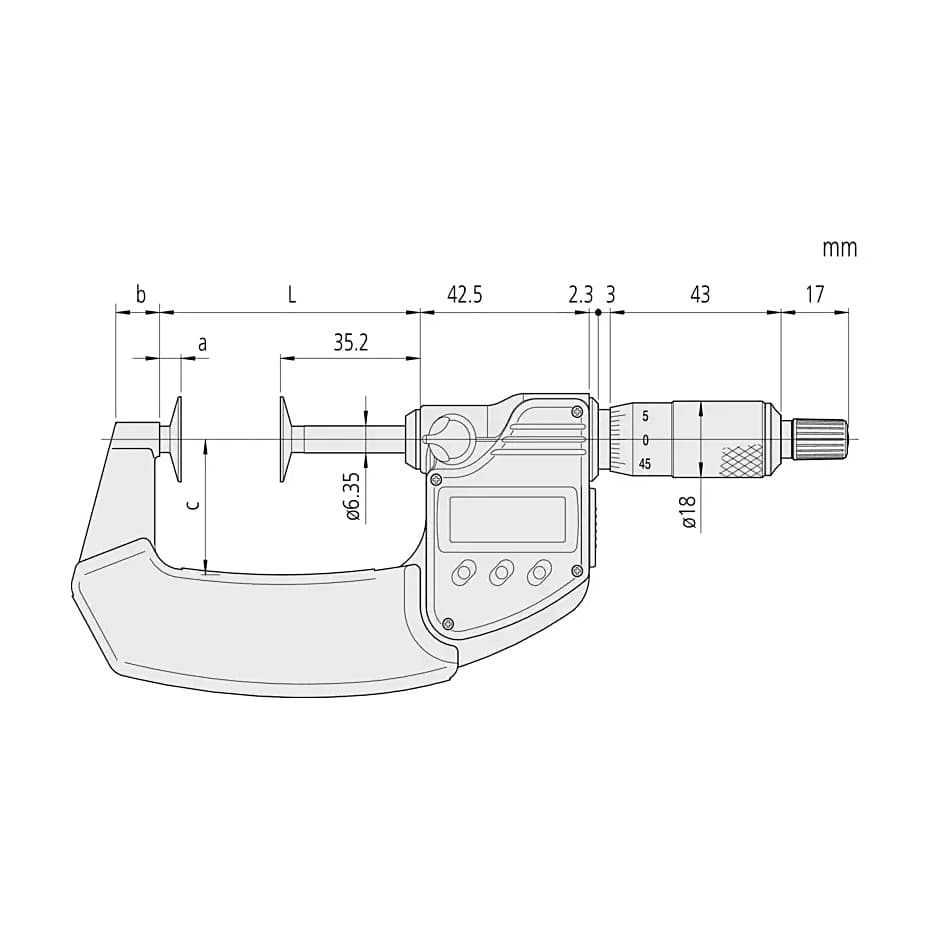

Dimensions Measurement:
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.MI.DI.00065 |
|---|---|
| Product Type | Disk Micrometer |
| Model No | 323-250-30 |
| Range (mm) | 0 - 25 mm |
| Resolution | 0.01 mm |
| Max. Permissible Error JMPE (µm) | ±4µm |
| Anvil Dia (mm) | Ø20 mm |
| Measurable Module | 0.5 - 6 mm |
| Flatness | 1µm |
| Parallelism | 4µm |
| Measuring Force | 3 - 8 N |
| Disk Size | 20 mm |
| Scale | Thimble & Sleeve Satin Chrome Finish, Thimble & Sleeve Satin Chrome Finish, ø18 mm |
| IP Rating | IP65 (Dust & Water Protected) |
| Display | LCD, Character Height 7.5 mm |
| Power Supply | 1x Battery SR-44 |
| Measuring Face | Hardened Steel, Micro-lap Finish |
| Measuring Spindle | With Spindle Lock, Ø6.35 mm, Spindle Pitch 0.5 mm |
| Scale | Thimble & Sleeve Satin Chrome Finish, Thimble & Sleeve Satin Chrome Finish, ø18 mm |
