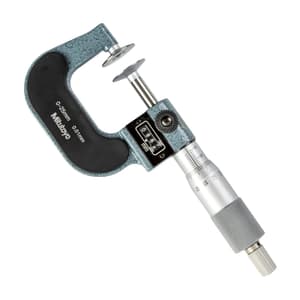

Mitutoyo 0 - 25 mm Mechanical Counter Disk Micrometer, 223-101
Roll over image to zoom zoom_in
- Product Type: Disk Micrometer
- Range (mm): 0 - 25 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹15727.04 (Incl. of all taxes)
₹13328+ ₹2399.04 GST (18%)
MRP ₹17770
SAVE 25%
1 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Measures "root tangent length" of spur gears and helical gears.
- Flanged disc-shaped measuring faces designed for accurate gear tooth pitch measurement
- Easy-to-read mechanical counter provides precision up to 0.01mm
- Metric vernier scale with angled barrel graduations minimizes parallax error for precise OD readings
- Ratchet-stop system applies consistent measuring force for repeatable accuracy
- Thimble and sleeve feature a satin chrome finish to resist corrosion and reduce glare
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.MI.DI.00061 |
|---|---|
| Product Type | Disk Micrometer |
| Model No | 223-101 |
| Range (mm) | 0 - 25 mm |
| Graduation | 0.01 mm |
| Max. Permissible Error JMPE (µm) | ±4µm |
| Anvil Dia (mm) | Ø20 mm |
| Measurable Module | 0.5 - 6 mm |
| Flatness | 1µm |
| Parallelism | 4µm |
