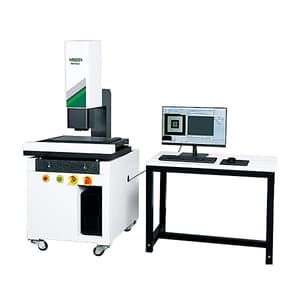

Insize 300 x 200 x 200 mm CNC Vision Measuring System (Advanced Type), ISD-K322
Roll over the image to zoom in
Key Features
- Product Type: Optical Measuring
- Weight: 350 kg
- Stage size: 620 x 380 mm
- Objective: 0.6X - 8.0X (13.3:1 continuous zoom ratio)
- Operation system: Windows10/11
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹36,17,192 (Incl. of all taxes)
₹30,65,417 + ₹5,51,775 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Inspection Certificate, High-resolution Auto Zoom Lens, Navigation Camera
- Motorized zoom objective
- Granite body, high accuracy and stability
- Panasonic servo control motor, with precise positioning performance in high-speed movement
- RSF brand linear scales
Standard Delivery:
- 1x Main unit
- 1x Dongle

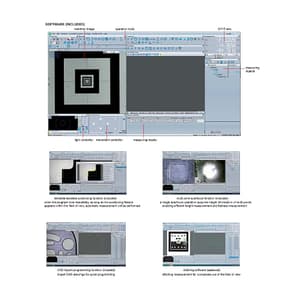

- 1x Software
- 1x Lens with coaxial light
- 1x Controller
- 1x Computer
- 1x Calibration glass chart
- 1x Desk
- 1x Clay
- 1x Anti-dust cover
Optional Accessory:
| 0.5X auxiliary objective | code: ISD-K-OB05X, working distance: 175mm magnification: 13.5—178X (on 23.8" monitor) |
| 2X auxiliary objective | code: SD-K-OB2X, working distance: 36mm magnification: 54-712X (on 23.8 " monitor) |
| Spectral confocal sensor | code: ISD-K-SCS (must be installed in factory) |
| Laser probe | code: ISD-K-LASER (must be installed in factory) |
| Probe | code: ISD-K-PROBE, includes ØI mm styli and Ø2mm styli, Ø20mm calibration ball |
| Line laser sensor | code: ISD-K-LINE must be installed in facto |

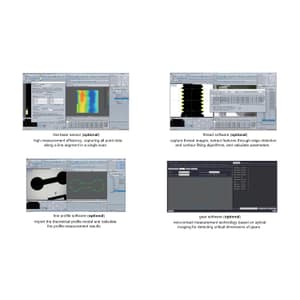

| Line profile software | code: ISD-K-LP |
| Gear software | code: ISD-K-GEAR |
| Thread software | code: ISD-K-THREAD |
| Stitching software | code: ISD-K-STITCHING |
| Office software | code: 7313-OFFICE |
"Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required."
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Measuring range (X x Y x Z) | 300 x 200 x 200 mm |
|---|---|
| Stage size | 620 x 380 mm |
| Glass stage size | 360 x 260 mm |
| Resolution of X/Y/Z axis | 0.5μm |
| Accuracy of X/Y axis | <(2.5+L/200)μm (L is the measuring length in mm) |
| Repeatability | 2μm |
| Objective | 0.6X - 8.0X (13.3:1 continuous zoom ratio) |
| View field (diagonal length) | 0.81 - 10.72 mm |
| Working distance | 83 mm |
| Magnification | 27X-356X (on 23.8" monitor) |
| Camera | 1/1.2"color CCD, 2.3M pixel |

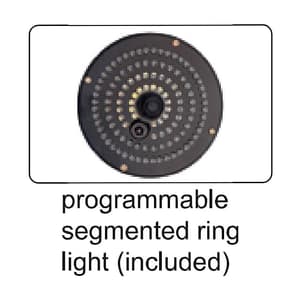

| Illumination | coaxial light, three-ring eight-zone adjustable ring light (surface) / and adjustable LED light (contour) |
| Max. height of workpiece | 200 mm |
| Max. weight of workpiece | 35 kg |
| Operation system | Windows10/11 |
| Drive method | Automatic |
| Power supply | 190-230V, 50Hz, 1500W |
| Dimension (L x W x H) | 620 x 780 x 1750 mm |
