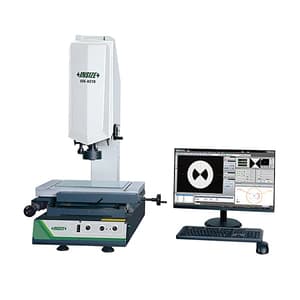

Insize 400 x 300 x 150 mm High-Definition Manual Vision Measuring System With Computer, ISD-H430
Roll over image to zoom zoom_in
- Weight: 240 Kg
- Product Type: Optical Measuring
- Stage size: 606 x 466 mm
- Objective: 0.58X - 7.5X (zoom)
- Operation system: Windows 7/8/10
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹993569.44 (Incl. of all taxes)
₹842008+ ₹151561.44 GST (18%)
MRP ₹1079497
SAVE 22%
15 Business Days
1 Set
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Inspection Certificate
- High-definition image
- Large view field
- Electronic magnification feedback lens: when the objective lens magnification is changed manually, the software automatically selects the corresponding pre-calibration data and calibration is not needed
Standard Delivery:
| Main unit | 1 pc |
| Computer | 1 pc |
| Calibration glass chart | 1 pc |
| Clay | 1 pc |
| Foot switch | 1 pc |
| Anti-dust Cover | 1 pc |
Optional Accessory:

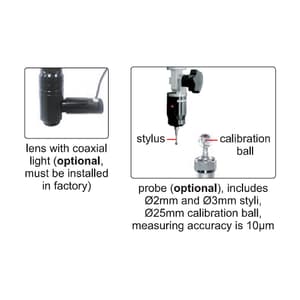

| 0.5X auxiliary objective | Code: ISD-H-OB05X Working distance: 155mm Magnification: 13.7 - 175.5X (on 24" monitor) |
| 2X auxiliary objective | code: ISD-H-OB2X working distance: 34.5mm magnification: 54.8-702X (on 24" monitor) |
| Probe | code: ISD-V-PROBE includes Ø2mm and Ø3mm styli, Ø25mm calibration ball |
| Vision measuring system with coaxial light lens | Code: ISD-H210CL, ISD-H320CL, ISD-H430CL |
| Office software | Code: 7313-OFFICE |
"Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required."
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.OP.00038 |
|---|---|
| Product Type | Optical Measuring |
| Model No | ISD-H430 |
| Measuring range (X x Y x Z) | 400 x 300 x 150 mm |
| Stage size | 606 x 466 mm |
| Glass stage size | 450 x 350 mm |
| Resolution of X/Y/Z axis | 0.5µm |
| Accuracy of X/Y axis | <(2.5+L/100)µm (L is the measuring length in mm) |
| Repeatability of X/Y axis | 2µm |
| Objective | 0.58X - 7.5X (zoom) |
| View field (diagonal length) | 1.4 - 14 mm |
| Working distance | 82 mm |
| Magnification | 27.4X - 351X on 24" monitor |
| Camera | Giga-bit network camera |
| Illumination | surface and contour with adjustable LED |
| Max. height of workpiece | 150 mm |
| Max. weight of workpiece | 20 kg |
| Operation system | Windows 7/8/10 |
| Drive method | manual |
| Power supply | 110/240V, 50/60Hz |
| Dimension (L x W x H) | 970 x 670 x 940 mm |
