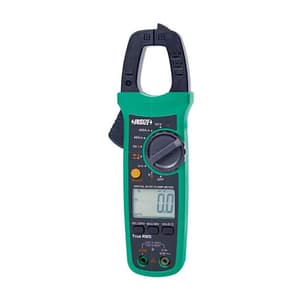

Insize 4000 Counts Digital AC/DC Clamp Meter, 9315-CF210

Shop all Insize

SKU: ME.EL.CL.00190

Model: 9315-CF210

Roll over the image to zoom in

Visit Insize Store

Key Features

  • Product Type: Clamp Meters
  • Weight: 235 g
  • Diode: Open circuit voltage 4V
  • Continuity Check: < 30 Ohm
  • Power Supply: 2 x 1.5V AAA batteries
See all product information

ToolBuy Benefits

₹5,817 (Incl. of all taxes)

₹4,930 + ₹887 GST (18%)

MRP was MRP ₹6,944

Save 29%

3 Business Days

1

–

Download Product LeafletNot available
Download Insize CatalogueNot available

Highlights

  • 4000 counts display
  • 28mm jaw opening
  • NCV detection with light and sound alarm
  • True RMS measurement
  • Auto ranging
  • REL (zero) function
  • Data hold
  • Polarity indication
  • LCD screen with backlight
  • Low battery indication
  • Auto power off
  • Safety rating: CAT III 300V/CAT II 600V


Specification:

Function Range Resolution Accuracy
DC Current 40.00A / 400.0A 0.01A / 0.1A ±(2.0%+5d)
AC Current 40.00A / 400.0A 0.01A / 0.1A ±(2.0%+5d)
DC Voltage 400.0mV 0.1mV ±(0.7%+3d)
  • 4.000V
  • 40.00V
  • 400.0V
  • 600V
  • 0.001V
  • 0.01V
  • 0.1V
  • 1V
 ±(0.5%+2d)
AC Voltage 4.000V 0.001V ±(1.0%+5d)
  • 40.00V
  • 400.0V
  • 600V
  • 0.01V
  • 0.1V
  • 1V
 ±(0.8%+5d)
AC Voltage Frequency 10Hz - 60kHz 0.01Hz - 0.01kHz ±(0.5%+2d)
Resistance 400.0Ω 0.1Ω ±(1.0%+2d)
  • 4.000kΩ
  • 40.00kΩ
  • 400.0kΩ
  • 0.001kΩ
  • 0.01kΩ
  • 0.1kΩ
 ±(0.8%+2d)
4MΩ/40MΩ 0.001MΩ/0.01MΩ ±(2.5%+5d)
Capacitance
  • 40.00nF
  • 400.0nF
  • 4.000μF
  • 40.00μF
  • 400.0μF
  • 0.01nF
  • 0.1nF
  • 0.001μF
  • 0.01μF
  • 0.1μF
 ±(4.0%+5d)
  • 4.000mF
  • 40.00mF
  • 0.001mF
  • 0.01mF
 ±10.0%
Frequency 10Hz ~ 10MHz 0.01Hz ~ 0.01MHz ±(0.1%+4d)
Duty Cycle 0.1% ~ 99.0% 0.1% ±(3.0%+5d)


Standard Delivery:

Clamp Meter 1 Pc
Battery (AAA) 2 Pcs

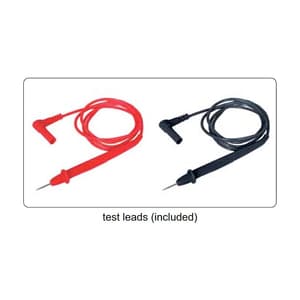

Test Lead 2 Pcs

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

Technical specifications for Insize 4000 Counts Digital AC/DC Clamp Meter, 9315-CF210
DiodeOpen circuit voltage 4V
Continuity Check< 30 Ohm
Power Supply2 x 1.5V AAA batteries
Dimension215 x 75 x 37 mm
