• Data Hold
• Large LCD With Big Font Size
• True Rms
• Ncv
• Diode
• Live Wire Detection
• Peak Voltage Measurement
• Max / Min / Relative Function
• Duty Cycle
• Full Over Load Protection
• Temperature ºf & ºc
• K-type Thermocouple
• Backlight & Flaslight
• Both Auto & Manual Range
• Loz Measurement
• Auto Power Off

Application:

• Electrical Industry
• Industrial Maintenance
• Residential Use
• HVAC
• Automotive
• Research

Technical Data:

• AC Voltage (2kv~hz%)

Range	Resolution	Dcv	Acv	Overload Protection
600mV	0.1mV	±(0.8%+3)	–	2000V AC/DC
6V	0.001V	±(0.5%+5)	±(1.0%+5)
60V	0.01V
600V	0.1V
2000V	1V	±(1.0%+8)	± (1.0%+8)



• AC / DC Current (A~hz%)

Range	Resolution	Dca	Aca	Overload Protection
60A	0.01A	±(2.0%+5)	±(2.0%+5)	2000A
600A	0.1A
2000A	1A			–



• AC Voltage / DC Voltage Loz

Range	Resolution	Accuracy	Overload Protection
1000V	1V	±(2.0%+5)	1000V DC / AC



• Inrush Current, DC Current (A~hz%)

Range	Resolution	Accuracy	Overload Protection
INRUSH CURRENT ACA 2000A	1A	±(10%+10)	2000A
Measurement time is around 100mS



• Continuity

Range	Resolution	Remarks	Overload Protection
600Ω	0.1Ω	Open circuit: Resistance >50Ω, no beep; well connected circuit: resistance <50Ω, consecutive beep	600V AC/DC



• Diode

Range	Resolution	Remarks	Overload Protection
6V	0.001V	Open circuit voltage: about 3V, measurable PN junction : forward voltage drop <3V, for silicon PN junction, the normal value is generally about 0.5~0.8V	600V AC/DC



• Capacitance

Range	Resolution	Accuracy	Overload Protection
1.0 nF	0.001 nF	± (4.0%+25)	600V DC/AC
10.0 nF	0.01 nF
100.0 nF	0.1 nF	± (4.0%+5)
1.0 μF	0.001 μF
10.0 μF	0.01 μF
100.0 μF	0.1 μF
1.0 mF	0.001 mF	± (10.0%+9)
10.0 mF	0.01 mF
100.0 mF	0.1 mF



• Resistance (Ω)

Range	Resolution	Accuracy	Overload Protection
600Ω	0.1Ω	±(1.0%+3)	600V DC/AC
6kΩ	0.001kΩ	±(1.0%+2)
60kΩ	0.01kΩ
60kΩ	.01 kΩ
6MΩ	0.001MΩ	±(2.0%+8
60MΩ	0.01MΩ



• Frequency / Duty Cycle (Hz%)

Range	Resolution	Accuracy	Overload Protection
1Hz~10MHz	0.001Hz~1kHz	±(1.0%+3)	600V DC/AC
10.0%~99.9%	0.1%	± (2.6%+7)

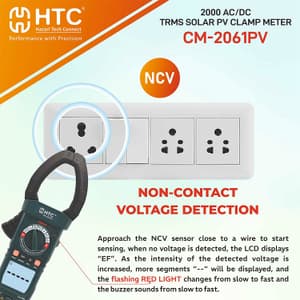

• Non-contact Voltage (Ncv) Detection

RANGE	ACCURACY	OVERLOAD PROTECTION
NCV	Approch the NCV sensor close to a wire to start sensing, when no voltage is detected, the LCD display “EF”. As the intensity of the detected voltage is increased, more the flashing red light changes from slow to fast and the buzzer sound from slow to fast	1000V DC/AC



• Temperature (°c / °f)

Range	Resolution	Accuracy	Overload Protection
-40°C~0°C	1°C	± 4	600V DC/AC
0°C~400°C		± (2%+3)
400°C~1300°C		± (3%+3)
-40°F~50°F	1ºF	± 5
50ºF~750ºF		± (2%+5)
537°F~1832°F		±(3%+5)



• Live Wire Recognition (Live)

Range	Accuracy	Overload Protection
LIVE	When the tip of test leads contacts the wire for detection, if there is no voltage detedted, the LCD display “LIUE”, If detedted voltage, the LCD display “_ _ _ _ _ _ _”, and flashing red lights up and buzzer sounded.	1000V DC/AC

Package Content:

• Clamp Meter
• Test leads
• User Manual
• K-Type Thermocouple
• Hard Carrying Bag
• Battery
• Test Probe
• Crocodile Clips
• MC4 PV Plug
