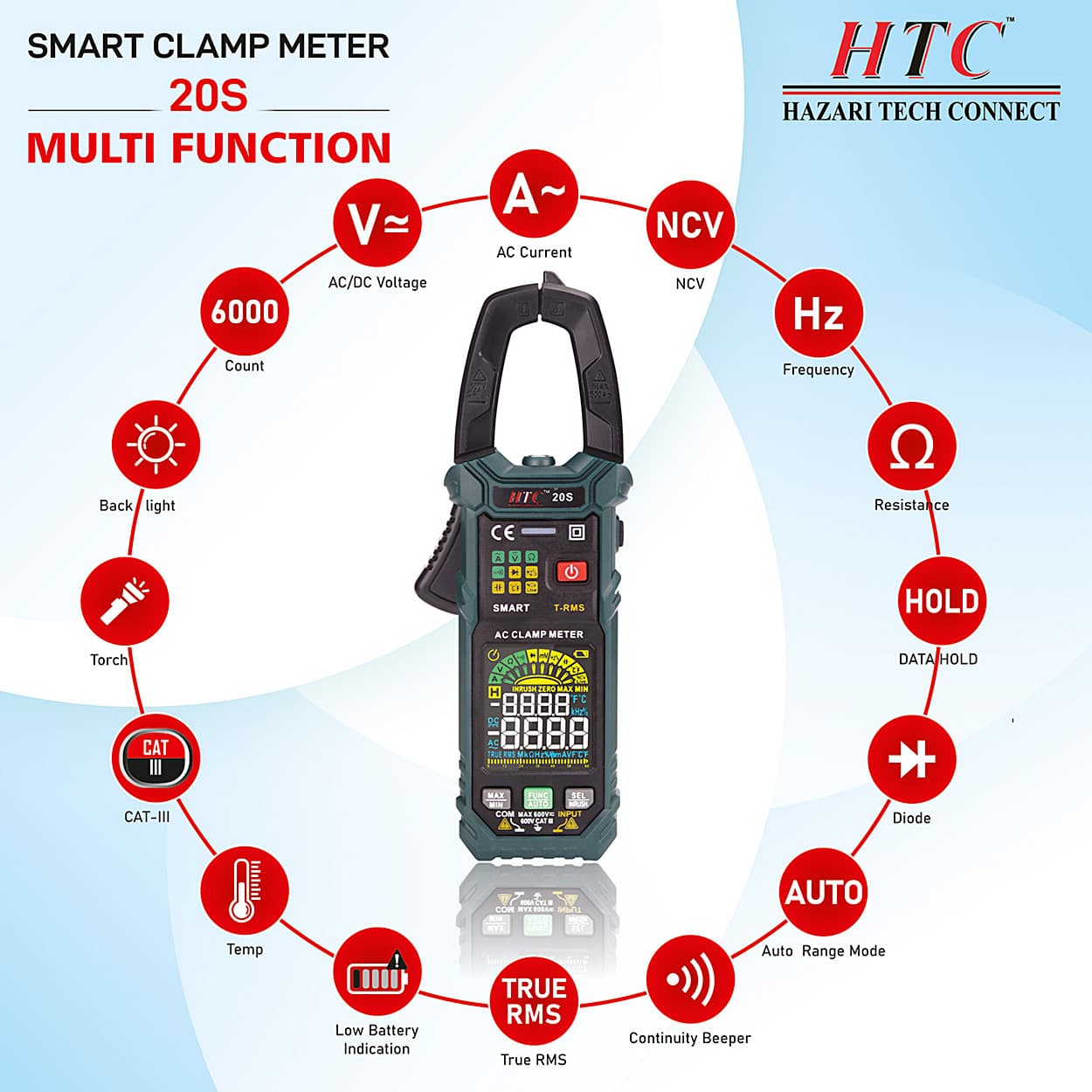

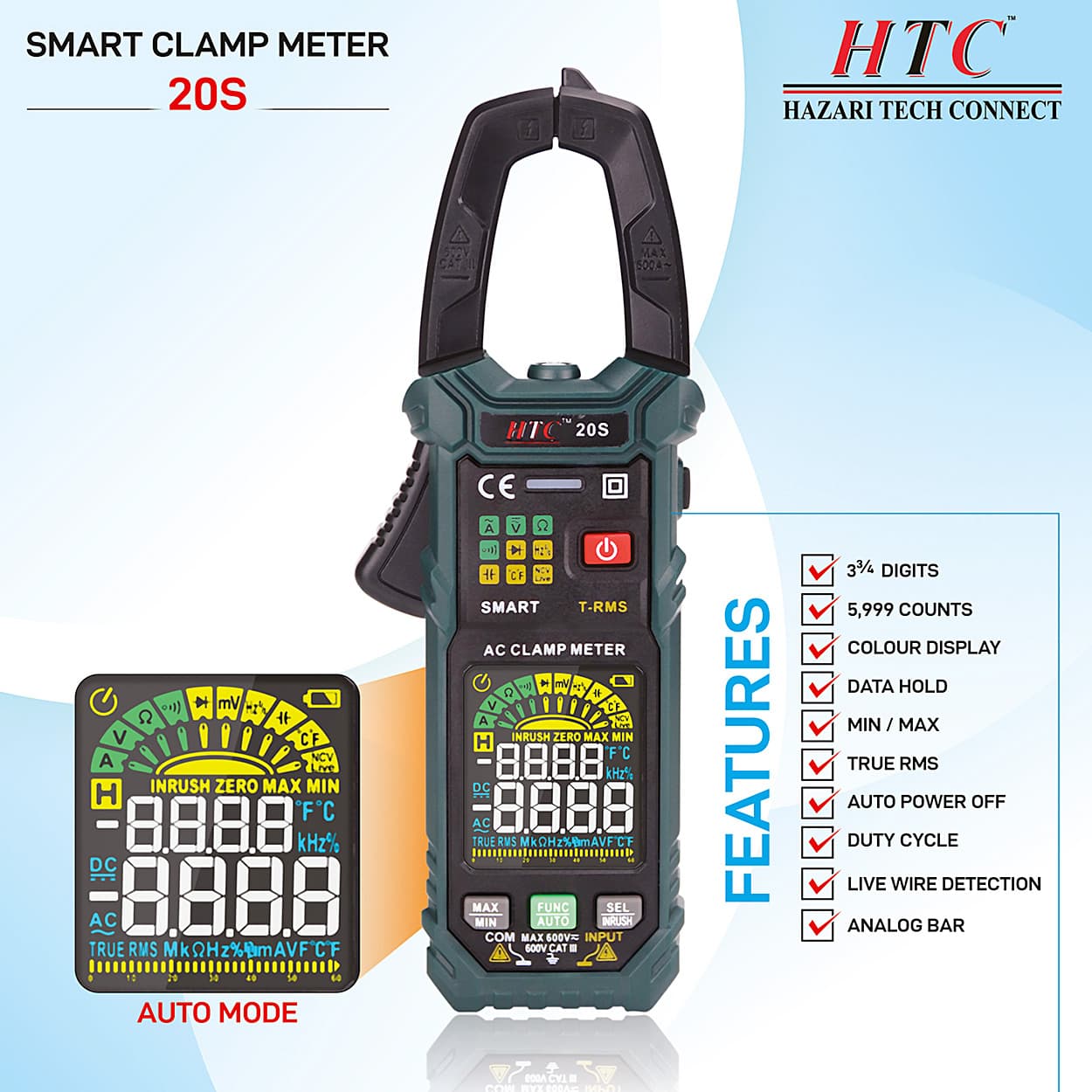

• 3-3/4 Digits 6,000 Counts, Colour Display, Data Hold, Min / Max,

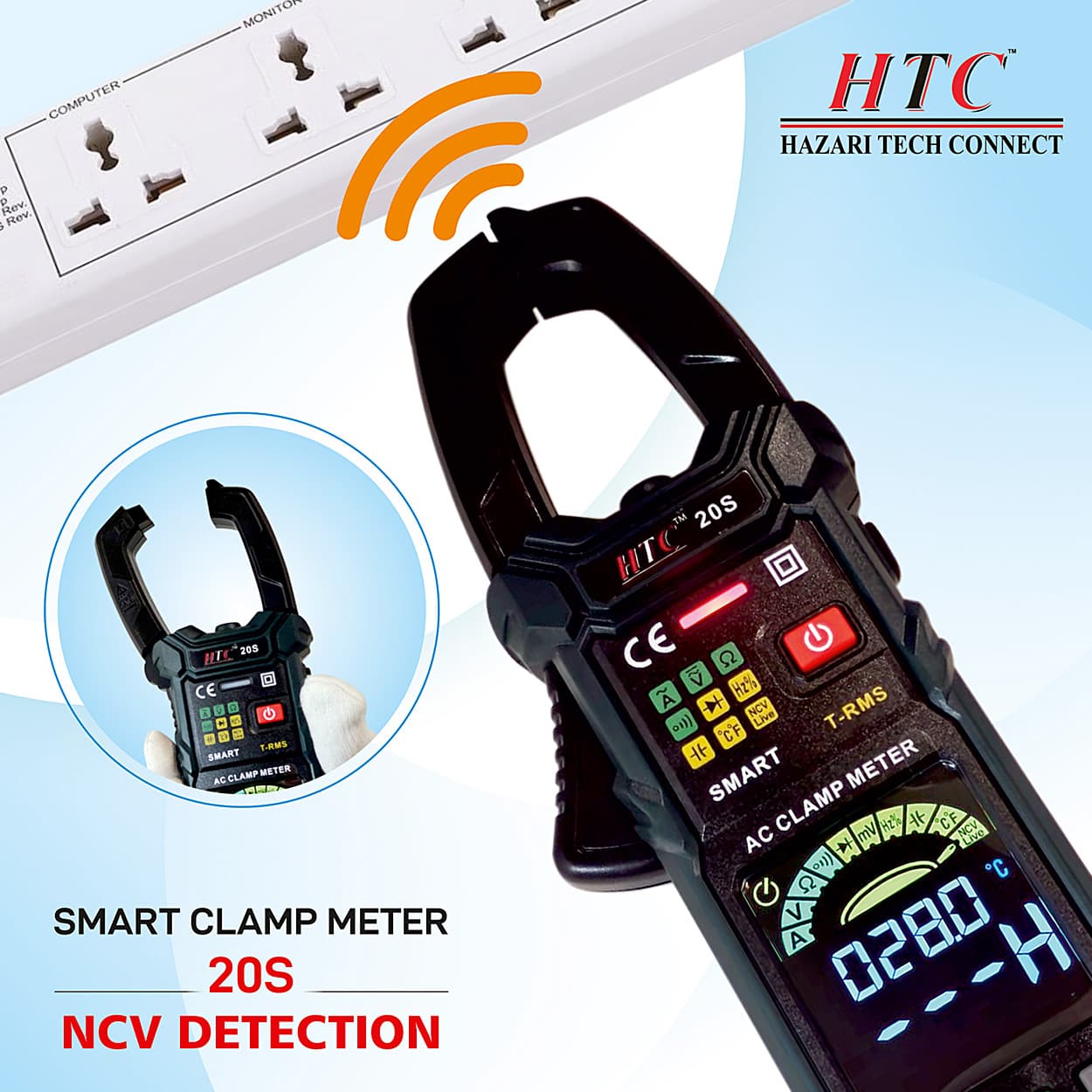

• True RMS, Auto Power Off, Duty Cycle, Live Wire Detection.

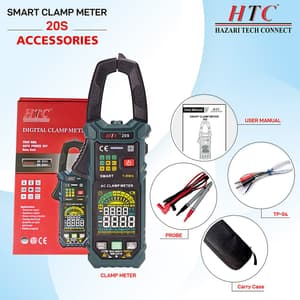

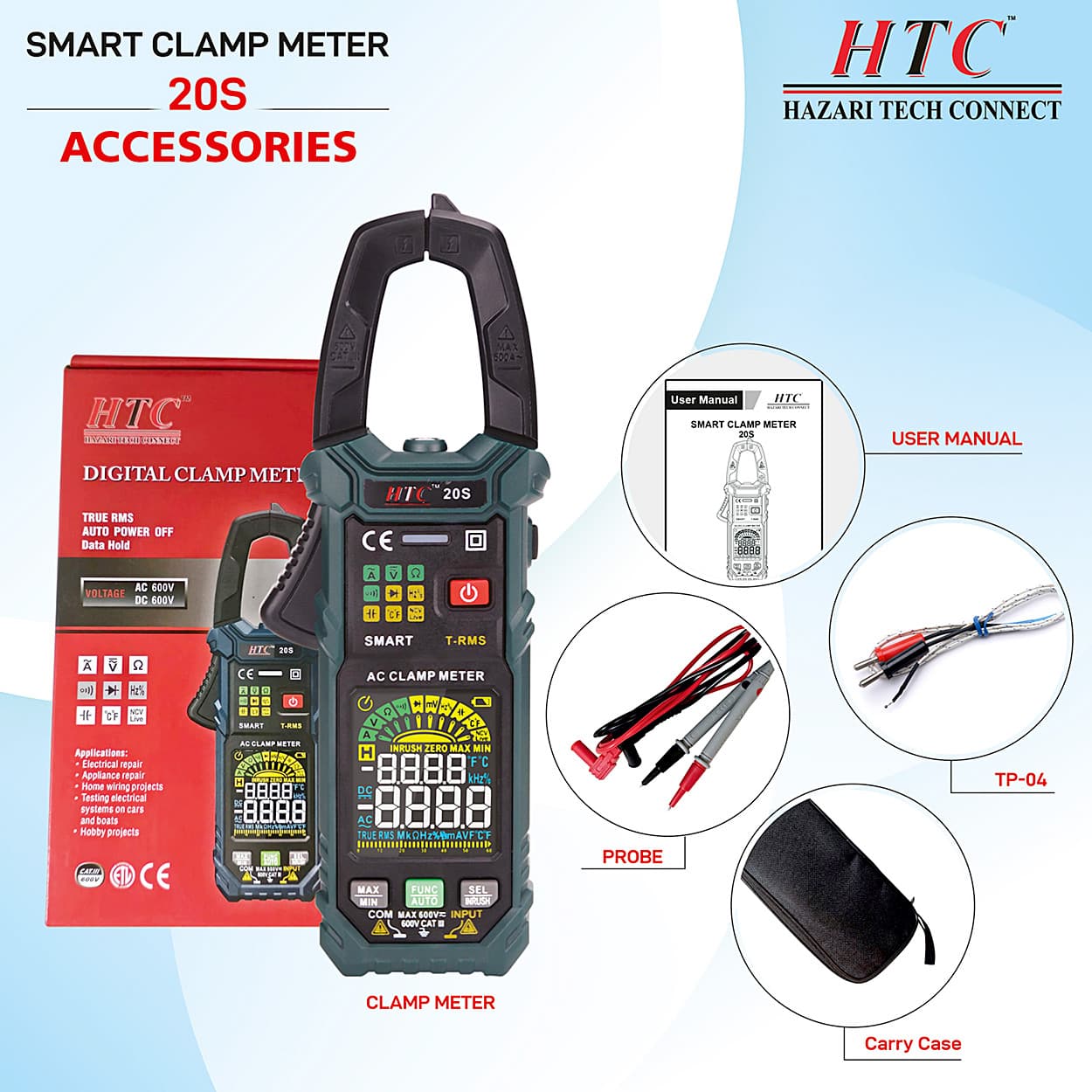

Package Contents:

• Test leads,
• User Manual,
• TP04 Thermocouple Probe,
• Carry Case & Battery.

Diode:

It displays the approximate forward voltage value of the diode

Reserve DC voltage is about 3V overload protection : 250V



Continuity:

<50Ω, the buzzer sounds and the green indicator LED on.

Test Voltage Approx 1V Overload protection: 250V



DC Voltage:

Range	Resolution	Accuracy
600mV	0.1 mV	±(0.5% rdg+5)
6V	0.001V
60V	0.01V
600V	0.1V



AC Voltage:

Range	Resolution	Accuracy
600mV	0.1 mV	±(0.8% of rdg+5)
6V	0.001V
60V	0.01V
600V	0.1V



Resistance:

Range	Resolution	Accuracy
600Ω	0.1Ω	±(0.1% rdg+5)
6KΩ	0.001KΩ
60KΩ	0.01KΩ
600KΩ	0.1KΩ
6MΩ	0.001MΩ
60MΩ	0.01MΩ



AC Current:

Range	Resolution	Accuracy
60A	0.01A	±(2.5% rdg+5)
600A	0.1A	±(3.0% rdg+10)



Frequency / Duty:

Range	Resolution	Accuracy
100Hz	0.01Hz	±1.0% of rdg±3 digits
1000Hz	0.1Hz
10kHz	0.001kHz
100kHz	0.01kHz
1000kHZ	0.1kHz
10MHz	0.001MHz
1~99%	0.1%	±3.0% of rdg±3 digits



Temperature:

Unit	Resolution	Accuracy
ºC	1ºC	-40ºC~10ºC	±3ºC
		10ºC~100ºC	±2ºC
		100ºC~1000ºC	±2.0%
ºF	1ºF	-40ºF~50ºF	±6ºF
		50ºF~212ºF	±4ºF
		212ºF~1832ºF	±2.0%



Capacitance:

Range	Resolution	Accuracy
6nF	0.001nF	±(4.0% rdg+5)
60nF	0.01nF
600nF	0.1nF
6µF	0.001µF
60µF	0.01µF
600µF	0.1µF
6mF	0.001mF
60mF	0.01mF
