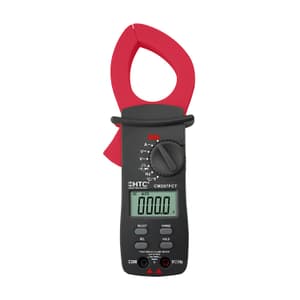

HTC 3-1/2 Digit / 1000A AC Digital TRMS Clamp Meter, CM-207FCT
Roll over image to zoom zoom_in
- Weight: 200 Grams
- Product Type: Clamp Meters
- Display: 3-1/2 Digit 1999 Count
- Jaw Opening (mm): 40 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹995.92 (Incl. of all taxes)
₹844+ ₹151.92 GST (18%)
MRP ₹1055
SAVE 20%
5 Business Days
1 Set
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Large LCD Display
- True Rms
- Data Hold
- Function Protection
- Rel Test
- Auto Power Off
- Auto / Manual Range
DC Voltage:
| RANGE | ACCURACY |
| 200mV |
±(0.5% + 5) |
| 2V | |
| 20V | |
| 200V | |
| 1000V |
AC Voltage:
| RANGE | ACCURACY |
| 2V |
±(1.0% + 5) |
| 20V | |
| 200V | |
| 750V |
AC Current:
| Range | Accuracy |
| 200A | ±(3.0% + 5) |
| 1000A |
Capacitance:
| RANGE | ACCURACY |
| 2nF |
±(3.5% + 10) |
| 20nF | |
| 200nF | |
| 2uF | |
| 20uF |
Resistance:
| RANGE | ACCURACY |
| 200Ω |
±(0.8% + 3) |
| 2kΩ | |
| 20kΩ | |
| 200kΩ | |
| 2MΩ | |
| 20MΩ |
Frequency:
| RANGE | ACCURACY |
| 100Hz |
±(0.5% + 5) |
| 1kHz | |
| 10kHz | |
| 100kHz | |
| 1MHz |
Package Content:
- Test leads
- Manual
- White Box
- Bag & Battery
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.CL.00236 |
|---|---|
| Product Type | Clamp Meters |
| Model No | CM207FCT |
| Display | 3-1/2 Digit 1999 Count |
| Jaw Opening (mm) | 40 mm |
| Countinuity Test | Less than 30 Ohm ± 10 Ohm |
| Low Battery Indicator | Approx less than 2.4V |
| Auto Power Off | About 15 Minutes |
| Input Impedance | 10 Ohm |
| Sampling Rate | 3 Times/S |
| AC Frequency Response | 50 - 60Hz (Current) / 50 - 400Hz (Voltage) |
| Operation Method | Auto or Manual Range |
| Function Protection | Yes |
| Temperature Range (°C) | -40ºC ~ 1000ºC |
| Temperature Range (°F) | 0ºF ~ 1832ºF |
| Temperature Accuracy | ±(1.0% + 5) |
| Power | 2x 3V AAA Batteries |
| Dimensions (HxWxD) | 225 x 55 x 32 mm |
