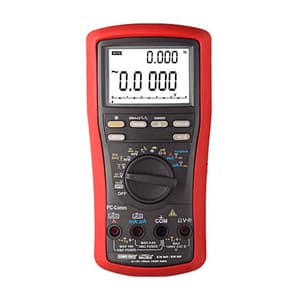

Kusam-Meco 5-4/5 Digit / 5,00,000 Counts Auto Ranging TRMS Digital Multimeter With VFD Function & PC Interface, KM 869
Roll over image to zoom zoom_in
- Weight: 635 Grams
- Product Type: Multimeter
- Operating Temperature: 0°C to 45°C
- Pollution degree: 2
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹27895.2 (Incl. of all taxes)
₹23640+ ₹4255.2 GST (18%)
MRP ₹29550
SAVE 20%
3 Business Days
1 Pcs
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
These meters comply with IEC SANS 600790:2000 & IEC SANS 60079-11:1999, which is applicable for electrical apparatus for use in explosive gas atmospheres. Part 0 (general requirements) & Part 1 (intrinsic).
The approved explosive protection rating of this equipment is suitable for use in Zone 1 hazardous areas. Group I (coal mines) underground & Group II (surface).
The approved explosive protection rating of this equipment is suitable for use in Zone 1 hazardous areas. Group I (coal mines) underground & Group II (surface).
Features & Benefits:
- Beep-Jack Audible & Visible Input Warning
- 41 Segment Analog Bar-graph
- Relative Zero Mode
- PC Interface Capability
- VFD-V & VFD-Hz readings
- Crest (Instantaneous Peak Hold) function
- T1-T2 differential Temperature readings.
- 500,000 counts of stable DCV mode
- DC Voltage Basic Accuracy 0.02%
- AC; AC+DC True RMS Conversion AC. AC+DC Voltage Bandwidth upto 100kHz (V) & 10kHz (A)
- 5-4/5 Digit 500,000 counts large easy to read LCD Dual display with white Backlight
- Fast Measurements, 5/sec; Fully Auto-Ranging
- Record MAX, MIN & AVG. readings
- MAX & MIN readings & Data Hold Function
- dBm function with 20 selectable values
- High-speed Capacitance measurement
- 1000V General Input Protection
- Logic & Line Level Frequency
- Logic Level Duty Cycle Readings & Diode Tester
- Fast Audible Continuity & Diode tester
- Auto Power Off
Safety:
- Double insulation per IEC/UL/EN61010-1Ed.3.0, IEC/UL/EN61010-2-030 Ed. 1.0, IEC/EN61010-2-033 Ed. 1.0, IEC/UL/EN61010-031 Ed. 1.1 & CAN/CSA- C22.2 No. 61010-1-12 Ed. 3.0 to CAT IV 1000V AC & DC .
- Transient Protection: 12 kV (1.2/50µs surge)
- Terminals (to COM) Measurement Category - V / A / mAµA: CAT IV 1000V AC & DC
- Overload Protection: µA & mA - : 0.44A/1000V, IR 10kA or better, F Fuse / A: 11A/1000V, IR 20kA or better, F Fuse / V: 1100V DC/AC rms / mV, ohms & Others : 1000V DC/AC rms
- EMC: Meets EN61326-1:2006 (EN55022, EN61000- 3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11) In an RF field of 3V/m: Capacitance function is not specified / Other function ranges: Total Accuracy = Specified Accuracy + 100 dgts Performance above 3V/m is not specified
- Rugged fire retarded casing with battery access door
- Replaceable protective holster with probe-holders & Tilt-stand.
- 1000V (Ohm, Capacitance & all other Functions) Input protection
- 1000V High Breaking Capacity fuses protection on Current inputs
- LVD meets EN61010-1 CAT IV 1kV
Package Content:
- Test lead (pair)
- Holster
- Battery installed
- User Manual
- Carrying case
- One BKP60 banana plug type-K Thermocouple
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00139 |
|---|---|
| Product Type | Multimeter |
| Model No | KM869 |
| Operating Temperature | 0°C to 45°C |
| Pollution degree | 2 |
| Low Battery | Below approx 7V |
| Sensing | AC, AC+DC True RMS |
| Altitude | Operating below 2000 m |
| Power Consumption | 6.5mA typical; 8mA for VFD ranges |
| APO Timing | Idle for 17 minutes |
| APO Consumption | 70µA typical |
| Power Supply | 1 x 9V battery |
| Polarity | Automatic |
| Display | 4-4/5 Digits 50,000 counts fast mode / Selectable stable mode / 5-4/5 Digits 500,000 counts for DC Voltage / 5 digits 99,999 counts for Hz |
| Update Rate | 4-4/5 Digits fast mode : 5 per second nominal / 5-4/5 Digits stable mode : 1.25 per second nominal / 41 Segments Bar-graph : 60 per second max |
| Relative Humidity | Max. 80% R.H. for Temperature up to 31°C decreasing linearly to 50% R.H. at 45°C |
| Storage Temperature | -20°C to 60°C, <80% R.H. (with battery removed) |
| Temperature Coefficient | Nominal 0.15 x ( specified accuracy)/°C @ (0°C ~ 18°C or 28°C ~ 45°C) or otherwise specified |
| Dimension (LxWxH) | 208 x 103 x 64.5 mm with holster |
