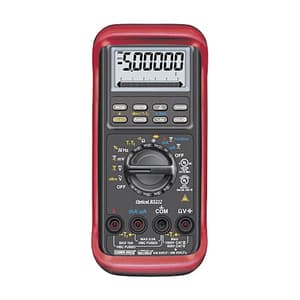

Kusam-Meco 5-4/5 Digit / 500000 Counts Hand Held TRMS Digital Multimeter With PC Interface, KM 859 CF
Roll over image to zoom zoom_in
- Weight: 500 Grams
- Product Type: Multimeter
- Operating Temperature: -20°C to 60°C
- Pollution degree: 2
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹25322.8 (Incl. of all taxes)
₹21460+ ₹3862.8 GST (18%)
MRP ₹26825
SAVE 20%
3 Business Days
1 Pcs
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Record Max, MIN, MAX-MIN readings
- Crest (Instantaneous Pead Hold) MAX, MIN, MAX-MIN readings.
- Relative zero mode.
- 500,000 counts high-resolution stable reading mode. Backlighted display
- dBm readings.
- T1-T2 differential temperature readings
- %4-20 mA loop current readings.
- High noise rejection filtered Line Level Frequency mode
- Line Level Frequency mode with 4 Trigger Levels.
- HBC Fuse Protection
Features & Benefits:
- DC Voltage Basic Accuracy 0.02%
- Fully Autoranging
- Backlighted display.
- T1-T2 differential Temperature readings.
- Fast Data Measurement 5/sec
- Data Hold, Diode Test & Duty Cycle
- Audible & Visible input warning.
- Auto Power Off.
Safety:
- Double insulation per IEC/UL/EN61010-1Ed.3.0, IEC / EN61010-2-030 Ed. 1.0, IEC / EN61010-2-033 Ed. 1.0, IEC/UL/EN61010-031 Ed. 1.1 and CAN/ CSA-C22.2 No. 61010-1-12 Ed. 3.0 to CAT III 1000V AC & DC & CAT IV 600V AC & DC.
- Transient Protection: 8 kV (1.2/50µs surge)
- Terminals (to Com) Measurement Category: V/A/mAµA : Category III 1000V AC & V DC & CAT IV 600V AC & V DC
- Overload Protection: µA & mA - : 0.44A/1000V DC/AC rms, IR10kA, F Fuse A : 11A/1000V DC/AC rms, IR 20kA, F Fuse V : 1100V DC/AC rms mV, W & Others :1000V DC/AC rms
- EMC: Meets EN61326-1:2006(EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11) In an RF field of 3V/m: Capacitance function is not specified Other function ranges: Total Accuracy = Specified Accuracy +100 digits Performance above 3V/m is not specified
Package Content:
- Test Leads pair
- Holster
- Battery installed
- User Manual
- Bkp60 banana plug K-type Thermocouple
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00141 |
|---|---|
| Product Type | Multimeter |
| Model No | KM859CF |
| Operating Temperature | -20°C to 60°C |
| Pollution degree | 2 |
| Low Battery | Below approx. 7V |
| Sensing | AC, AC + DC True RMS; Frequency Bandwidth 100kHz (V) & 10kHz (A) |
| Altitude | Operating below 2000 m |
| Power Consumption | 5mA typical |
| APO Timing | Idle for 4.5 minutes |
| Power Supply | 1 Alkaline 9V batteries |
| IP Rating | IP40 |
| Polarity | Automatic |
| APO Consumption | 20µA |
| Display | 4-4/5 digits 50,000 counts. Selectable stable mode 5-4/5 digits 500,000 counts for DC voltage, 6 digits 999,999 counts for Hz |
| Update Rate | 4-4/5 digits fast mode: 5 per second nominal; 5-4/5 digits stable mode: 1.25 per second nominal; 42 Segments Bar graph: 60 per second max |
| Relative Humidity | Maximum 90% R.H. For Temperature upto 31°C decreasing linearly to 50% R.H. at 60 °C |
| Storage Temperature | -20°C to 60°C, <80% R.H. (with battery removed) |
| Temperature Coefficient | Nominal 0.1 x (specified accuracy) / °C @ (0°C - 18°C or 28°C - 40°C), or otherwise specified |
| Dimension (LxWxH) | 186 x 87 x 35.5 mm / 198 x 97 x 55 mm with holster |
| Weight | 390 gm or 500 gm with Holster |
