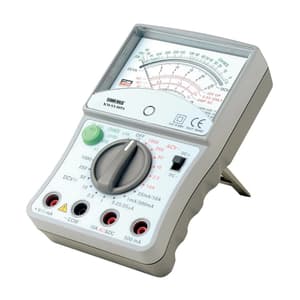

This 50kΩ /V analog multitester with its wide range of measurement capabilities, which includes a 10A AC range, is particularly designed for the requirement of electrical and electronic specialists and engineers. This instrument is also provided with meter over load protection and shock proof device.

Features:

• High quality Taut Band movement
• Easy to read 3-color scale for mistake proof reading
• Mirror scale makes reading pointer easy
• Safety features on all ranges
• Safety features safety fused, safety "OFF" position
• dB measurement
• With stand makes reading and measuring easy
• EN 61010-1 CATIII 600V EN 61326-1

Technical Data:

DC Voltage: Ranges: 0.25/1/2.5/10/50/250/1000V Accuracy: ±2% F.S. Sensitivity: 50kΩ / V

AC Voltage: Ranges: 2.5/10/50/250/1000V Accuracy: ±3% F.S. Sensitivity: 10kΩ /V Decibelmeter: -20 to 62dB 0dB=1mW/600Ω Direct Scale -20 to + 10dB

DC Current: Ranges: 25mA-1mA-25 /500 10A (on separate input) Accuracy: ±2% F.S. Sensitivity: 250mV

AC Current: Ranges: 10A Accuracy: ±3% F.S

Resistance: Ranges : Rx10.2 to 20kΩ, Rx102 to 200kΩ, Rx10020 to 2MΩ, Rx1K200 to 20MΩ Accuracy : ±3% of F.S. length

Package Content:

• Test Leads
• Instruction manual
• Batteries

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
