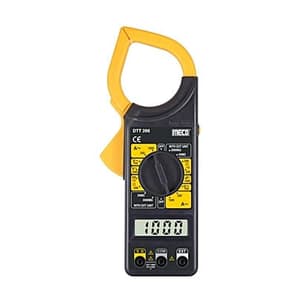

Meco 3-1/2 Digit 2000 Counts 1000A AC Manual Ranging Clamp Meter, DTT 266
Roll over image to zoom zoom_in
- Product Type: Clamp Meters
- Opening Jaw: 53 mm
- AC Voltage (V): 750V (45 Hz - 450 Hz)
- DC Voltage (v): 1000 V
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹776.44 (Incl. of all taxes)
₹658+ ₹118.44 GST (18%)
MRP ₹774
SAVE 15%
3 Business Days
1 Pcs
90303390
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
Digital multimeter: 3-1/2 Digits 2000 Counts 1000A AC Manual Ranging Clamp Meter
Features & Benefits:
- 3½ Digits
- 2000 Counts
- Manual Ranging
- AC Current up to 1000A (50Hz ~ 60Hz)
- AC Voltage up to 750V (45Hz ~ 450Hz)
- DC Voltage up to 1000V
- Resistance up to 20KΩ
- Over Load Protection
- Over Volt Protection
- Audible Continuity
- Data Hold
- Low Battery Indication
- Jaw Opening: Cable Dia. 53mm (max.)
Accessories:
- One pair of test leads,
- Instruction manual,
- 9V batteries (installed),
- Carrying Case,
- Insulation Tester Unit
Specifications:
| AC Current: 200A, 1000A (50Hz-60Hzl Accuracy : ±(2.5% 13dgtl on 200A / ±(2.5%+8dgtl upto 800AAbove 800A the readingare only for reference Overload: 1200A AC max. for 1 min. AC Response: 50-60Hz |
| AC Voltage: 750V (45Hz-450Hz) Accuracy: ±(al1.2 %rdg+5dgtl 45-450Hz) AC Response: 45Hz-450Hz |
| DC Voltage: 1000V Accuracy: ±(+1%rdg+5dgtl) |
| Resistance: 200Ω, 20Ω Accuracy : ±(+11.0%rdg+10dgtl on 200Ω / ±(1.0%rdg+4dgt) on 20Ω Over Volt Protection: 250V DC/220V AC RMS |
| Audible Cont.: 30Ω 20Ω (approx.) Over Volt Protection: 250V DC/220V AC RMS |
| Battery Life: 200 Hours Typical |
| Weight: 240gms Including Battery (approx.1) |
| Dimension: 230 x 68 x 37mm (approx.) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.CL.00033 |
|---|---|
| Product Type | Clamp Meters |
| Model No | DTT266 |
| Opening Jaw | 53 mm |
| AC Voltage (V) | 750V (45 Hz - 450 Hz) |
| AC Voltage Acccuracy | ±(al1.2 %rdg+5dgtl) |
| AC Voltage (AC Response) | 45 - 450 Hz |
| DC Voltage (v) | 1000 V |
| DC Voltage (Accuracy) | ±(+1%rdg+5dgtl) |
| Power | 9 V |
| Dimension | 230 x 68 x 37 mm (approx.) |
| Jaw Opening | Cable Dia. 53 mm (max.) |
