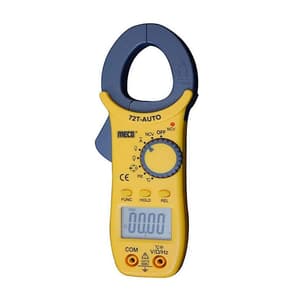

Digital multimeter: 3¾ Digit / 4000 count 600A AC TRMS Digital Clampmeter with K  Type Thermocouple, Temperature, NCV (LED, Buzzer & EF Strength) Backlight, Torch Light, Audible Continuity, Data Hold, Diode Test, REL Test and APO functions

Features & Benefits:

• Display 3¾ digit liquid crystal display (LCD) with a maximum reading of 2000 counts.
• Polarity Automatic, positive implied, negative polarity indication.
• Overrange (OL) or (-OL) is displayed.
• Zero Automatic.
• Low battery indication is displayed when the battery
• voltage drops below the operating level.
• Measurement rate  n 3 times per second, nominal.
• Operating 0°C to 50°C at < 70% relative humidity.
• Environment Storage -20°C to 60°C, 0 to 80% R.H. with battery
• Maximum Jaw  25 mm Opening
• Temperature removed from meter.
• Accuracy Stated accuracy at 270
• C ± 50ºC, <75% relative humidity.
• Power Two 1.5V ‘AAA’ Size Battery
• Battery life 200 hours typical
• Dimensions 185 x 65 x 28mm (approx.)

Accessories

• Pair of test leads x 1,
• Instruction manual x 1,
• 1.5V batterys (installed) x 2,
• Carring Case x 1
• (K type thermocouple upto 2600C for 27T-AUTO only) x 1

Specifications:

DC Voltage: 400mV, 4V, 40V, 400V, 600V(Auto Ranging) Accuracy: ±(0.8% rdg + 3 dgt) Overload Protection: 600V DC / AC rms

AC Voltage: 4V, 40V, 400V, 600V (Auto Ranging) Accuracy: ±(1.2% rdg + 3 dgt) Overload Protection: 600V DC / AC rms

AC Current: 40A, 400A (Auto Ranging) Accuracy: ±(1.2 % + 5 Digits) Overload Protection: 400A AC Max. for 1 minute

Resistance: 400, 4k, 40K, 400k, 4M, 40M Accuracy: ±(1.2% rdg + 3 dgt) Overload Protection: 250V DC / AC rms

Frequency: : 10Hz, 100Hz, 1000Hz, 10KHz, 100KHz, 1000KHz, 10MHz Accuracy: ± (0.5% rdg + 2 dgt) Sensitivity : Approx 0.7V Overload Protection : 250V DC / AC rms

Continuity Check Threshold Level : 40V Approx. Response Time : 1m Sec. Approx. Open Circuit Voltage : 0.4V Approx.  Indication : ‘ ’ is displayed on LCD and buzzer sounds at continuity.

Diode Test: Measurement Current : 1.0 ± 0.6 mA Approx. Open Circuit Voltage : 1.6V Approx.

Capacitance (Auto Ranging): 5nF, 50nF, 500nF, 5mF, 50mF, 200mF. Accuracy : ± (3% rdg + 2 dgts) Overload Protection : 250V DC / AC rms

Temperature:-200ºC to 7500ºC Accuracy: ± (3% rdg + 2 dgts) Resolution: 1ºC
