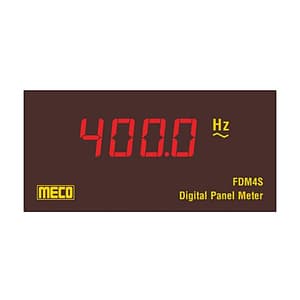

Meco 40 - 5000Hz Auto Ranging Digital Panel Meter, FDM4S
Roll over image to zoom zoom_in
- Product Type: Digital Panel Meters
- Measuring Range: 40 - 5000Hz (Auto Ranging)
- Display (Max.): 9999 Counts for 4 Digit Meters
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹1003 (Incl. of all taxes)
₹850+ ₹153 GST (18%)
5 Business Days
1 Pcs
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Measuring Method: Interval Measurement Method using Microcontroller.
- Resolution: 0.01 to 1 for 4 Digit depending on range 1 RPM for RPM Meter.
- Dielectric Strength: 2.5 kV at 50 Hz for 1 min. between Input - Auxiliary - Case - Terminals.
- Case / Housing: DIN Black ABS, Dimension as per DIN
- Mounting Clamps: Sturdy, Moulded ABS with suitable Hardware

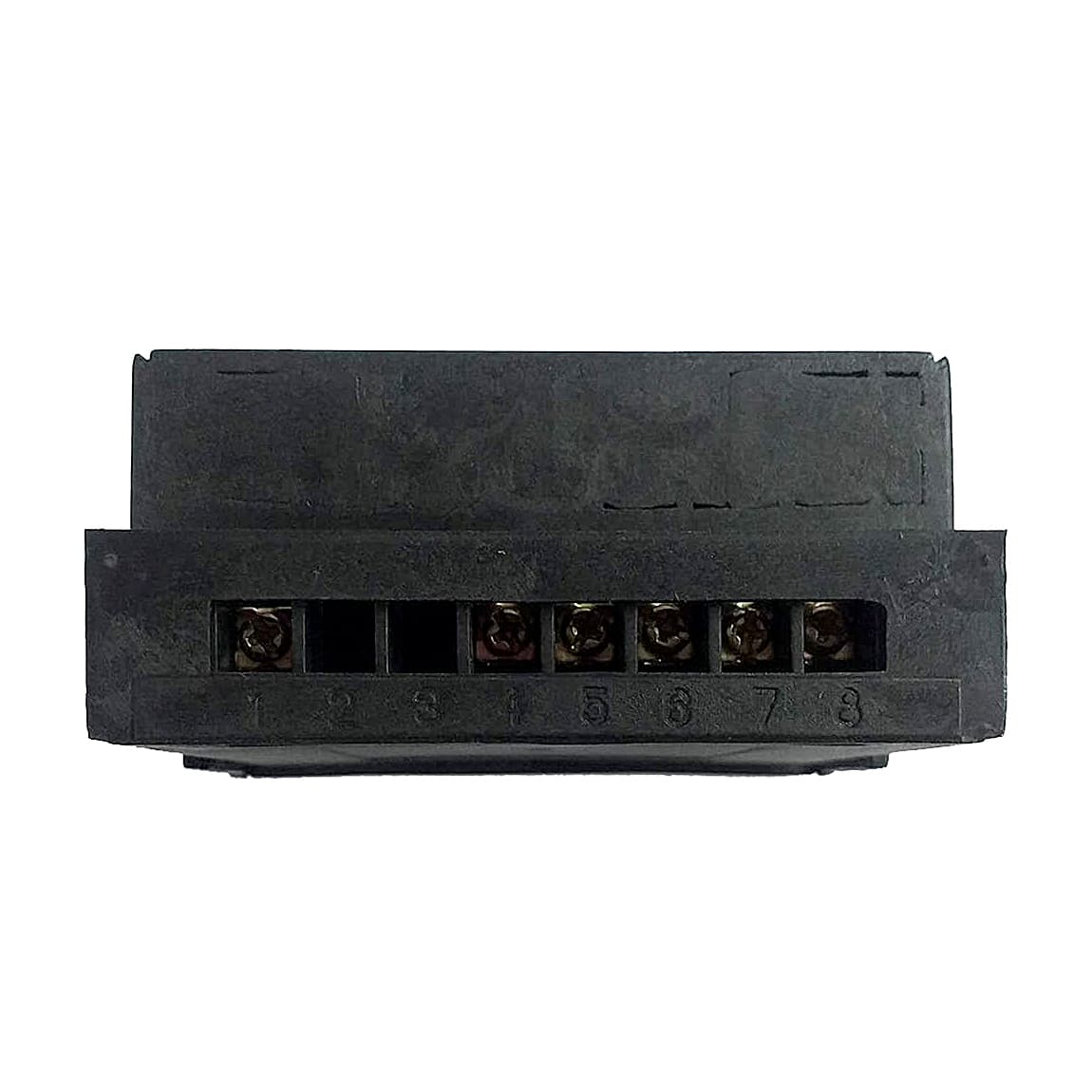

- Connectors: Terminal Block - Thermoplastic (UL 94V-0) with Tin Plated Brass Terminals
- Faceplate / Lens: Red Antiglare Faceplate with Annunciators
- Input: 20 - 500V AC For 110V AC or 230V AC Aux. Meters For (#) Self Powered Meters Input Variation is ±20% of Aux.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | EL.IN.DI.00047 |
|---|---|
| Product Type | Digital Panel Meters |
| Model No | FDM4S |
| Type of Product | Frequency Meter |
| Measuring Range | 40 - 5000Hz (Auto Ranging) |
| Display (Max.) | 9999 Counts for 4 Digit Meters |
| Display Stability | Within ± 2 Digits |
| Decimal Selection | Yes |
| Maximum Overload | 1.2 Times Continuous |
| VA Burden (Typical) | Auxiliary: < 4.5 VA / Voltage Input: < 0.5VA |
| Environment Calibration | 27°C±5°C |
| Operating Environment | 0 to 50°C, RH < 70% |
| Storage Environment | -10 to 60°C, RH < 70% |

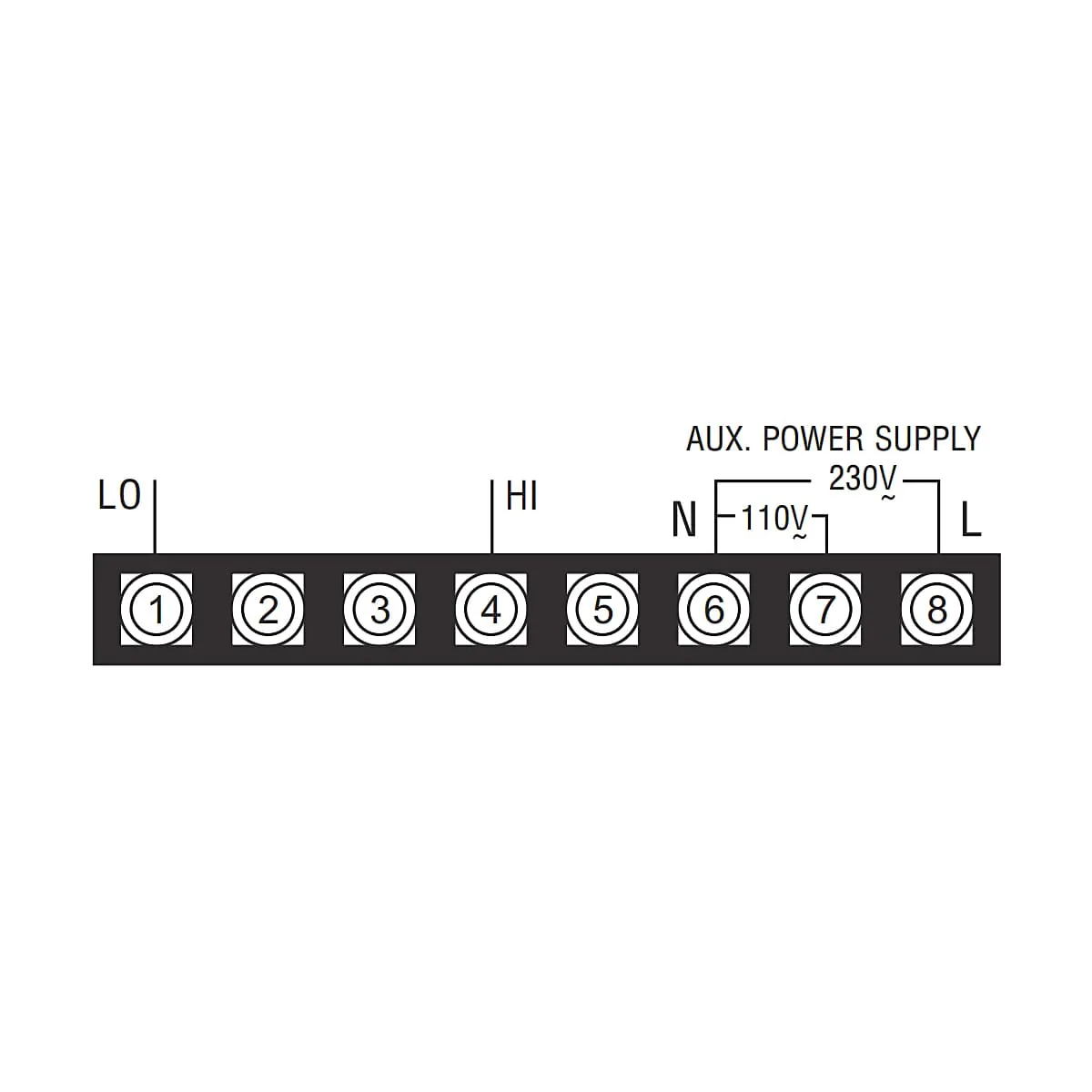

| Auxiliary Power Supply | 110 / 230V AC / Self Powered |
| Accuracy Class | ±0.1Hz / ±0.5Hz & ±2.0Hz |
| Display Digit Height | 14.20 mm / 0.56 inch |
| Standard | As per IS 13875 |
| Dimensions (mm) | 48 x 96 mm (Front) / 88 mm Depth (Behind Bezel) |
| Dimensions for Panel Cut-Out (mm) | 44(+0.5, -0.0) x 92 (+0.8, -0.0) |
