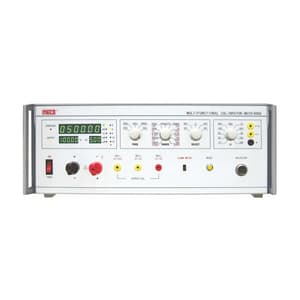

Meco 51/2 Digit Multifunctional Calibrator, 90DQ

Shop all Meco

SKU: ME.EL.PR.00082

Model: 90DQ

Roll over image to zoom zoom_in
  1. Meco 51/2 Digit Multifunctional Calibrator, 90DQ
Visit Meco Store keyboard_double_arrow_right
  • Weight: 22.5 Kg
  • Product Type: Process Calibrators
  • Stability DC: < 0.01 %FS / 3 min
  • Stability AC: < 0.02 %FS / 3 min
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹1308915 (Incl. of all taxes)

₹1109250+ ₹199665 GST (18%)

MRP ₹1305000

SAVE 15%

3 Business Days

1 Set

90303390

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

MODEL 90DQ Multifunctional Calibrator can output standard AC Voltage, DC Voltage, AC Current & DC Current. Output actual value, percent and FS display at the same time. The calibrator may select FS (full scale ) and relevant steps according to the scale of UUT ( unit under test ). Keys or knobs adjust the magnitude of the output signals. Wide range, high accuracy, good stabilization, easy operation and portable. The calibrator is ideal to test the amperemeter and voltmeter up to 0.2 class.


Applications:

  • Calibration of AC Volt, Amp, Frequency Meters
  • Calibration of DC Volt, Amp Meters
  • Calibration of Resistance Meters, Insulation Testers


Accessories:

  • Output Leads x 1 Pair
  • Output Leads (50A) x 1 Pair
  • Operation Manual x 1 Pc
  • Key Adjuster x 1 Pc
  • Power Cord x 1 Pc
  • Fuse (4A) x 2 Pcs
  • Data Cable for PC Connectivity x 1 Pc


Optional Accessories:

  • Standard Current Coil -

Turns Ratio

100 / 1100 / 1

Input Max.

5A10A

Current

500A1000A

Clamp Jaw

> 20mm> 28mm

DC Impedance

0.7Ω0.9Ω

DC Burden

5A / 3.5V10A / 2.5V

AC Burden

5A / 6V10A / 5V

Frequencies

DC to 60HzDC to 60Hz

Accuracy

± 0.3% rdg± 0.3% rdg


Technical Specification:

Voltage Control
  • Output Voltage Range: 250mV, 1V, 2.5V, 5V, 10V, 25V, 50V, 100V, 250V, 500V, 1000V
  • Basic Error: DCV : ± (0.02 %RD + 0.01 %FS) / ACV : ± (0.05 %RD + 0.02 %FS)
Current Control
  • Output Current Range: 100µA, 500µA, 2.5mA, 10mA, 25mA, 100mA, 250mA, 1A, 2.5A, 10A, 50A
  • Basic Error: DCI: ± (0.03 %RD + 0.02 %FS) / ACI: ± (0.05 %RD + 0.03 %FS)
Frequency Control
  • Frequency Range: 50Hz, 60Hz, 400Hz, 1kHz
  • Frequency Error: < 1 %
Resistance Control
  • Resistance Range: 10, 24, 50, 100, 240, 500 (Ω), 1, 2.4, 5, 10, 24 (kΩ), 10x1k, 24x1k, 50x1k, 100x1k, 240x1k, 500x1k, 1kx1k, 2.4kx1k, 5kx1k, 10kx1k, 24kx1k
  • Basic Error: ± 0.2 % +20mΩ



Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.PR.00082
Product TypeProcess Calibrators
Model No90DQ
Stability DC < 0.01 %FS / 3 min
Stability AC < 0.02 %FS / 3 min
Ripple < 0.2 %
Power Supply 230 VAC, 50 (60) Hz
Power Consumption < 250 VA
Operating Temperature 5ºC to 35ºC
Relative Humidity less than 80%
Distortion < 0.5 %
Display 51/2 Digit LED Digital Display
Step Adjustment of Output Signal 100 %FS / N, 10 %FS / N, 1 %FS / N, 0.1 %FS / N (N = 4, 5, 6, 10 and 15)
Dimensions (HxWxD) 190 x 480 x 545 mm
