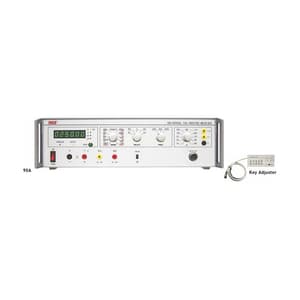

Meco 51/2 Digit Universal Calibrator, 90A

Shop all Meco

SKU: ME.EL.PR.00081

Model: 90A

Roll over image to zoom zoom_in
  1. Meco 51/2 Digit Universal Calibrator, 90A
Visit Meco Store keyboard_double_arrow_right
  • Weight: 17 Kg
  • Product Type: Process Calibrators
  • Stability DC: < 0.01 %FS / 2 min
  • Stability AC: < 0.03 %FS / 2 min
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

₹731187 (Incl. of all taxes)

₹619650+ ₹111537 GST (18%)

MRP ₹729000

SAVE 15%

3 Business Days

1 Set

90303390

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

MODEL 90A Universal Calibrator gives a standard output for AC Voltage, DC Voltage, AC Current & DC Current. Keys or Knob help to adjust the magnitude of the output signals. Important features include a wide range, high accuracy, good stabilization, easy operation and portability. The Calibrator is ideal for testing ammeters and voltmeters up to 0.2 accuracy class.


Applications:

  • Calibration of AC Volt, Amp, Frequency Meters
  • Calibration of DC Volt, Amp Meters
  • Calibration of Resistance Meters, Insulation Testers


Accessories:

  • Output Leads x 1 Pair
  • Operation Manual x 1 Pc
  • Key Adjuster x 1 Pc
  • Power Cord x 1 Pc
  • Fuse (2A) x 2 Pcs
  • Data Cable for PC Connectivity x 1 Pc


Optional Accessories:

  • Standard Current Coil -

Turns Ratio

50 / 1

Input Max.

20A

Current

1000A

Clamp Jaw

> 28mm

DC Impedance

0.9 ohms

DC Burden

20A / 1.3V

AC Burden

20A / 3V

Frequencies

DC to 60Hz

Accuracy

± 0.3% rdg


Technical Specification:

Voltage Control
  • Output Voltage Range: 200mV, 1V, 2V, 5V, 10V, 20V, 50V, 100V, 200V, 500V, 1000V
  • Basic Error: DCV : ± (0.03 %RD + 0.02 %FS) / ACV : ± (0.05 %RD + 0.03 %FS)
Current Control
  • Output Current Range: 100µA, 500µA, 2mA, 5mA, 20mA, 50mA, 200mA, 500mA, 2A, 5A, 20A
  • Basic Error: DCI : ± (0.05 %RD + 0.02 %FS) / ACI : ± (0.07 %RD + 0.03 %FS)
Frequency Control
  • Frequency Range: 50Hz, 60Hz, 400Hz
  • Frequency Error: < 1 %
Resistance Control
  • Resistance Range: 10, 24, 50, 100, 240, 500 (Ω), 1, 2.4, 5, 10, 24 (Ω), 10x1k, 24x1k, 50x1k, 100x1k, 240x1k, 500x1k, 1kx1k, 2.4kx1k, 5kx1k, 10kx1k, 24kx1k
  • Basic Error: ± 0.2 % +20mΩ



Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.PR.00081
Product TypeProcess Calibrators
Model No90A
Stability DC < 0.01 %FS / 2 min
Stability AC < 0.03 %FS / 2 min
Ripple < 0.1 %
Power Supply 230 VAC, 50 (60) Hz
Power Consumption < 180 VA
Operating Temperature 5ºC to 35ºC
Relative Humidity = 80 %
Distortion < 0.5 %
Display 51/2 Digit LED Digital Display
Step Adjustment of Output Signal 10 %FS, 1 %FS, 0.1 %FS, 0.05 %FS
Dimensions (HxWxD) 147x480x480 mm
