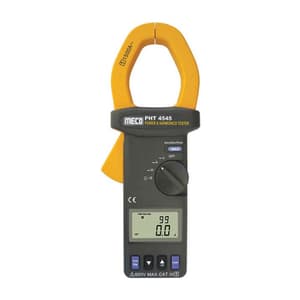

Meco AC Clamp-On Power & Harmonics Tester, Measures: V, A, W, PF, Phase Angle, THD upto 99th Order Crest Factor, Resistance, Continuity, KW, HP, VA, KVA, VAR, KVAr, and Phase Sequence, Jaw Opening: For upto 55 mm Diameter / Bus Bar  64 x 24 mm

Features & Benefits:

POWER ANALYSIS :

• W, KW, HP, VA, KVA, VAR, KVAR
• PF, Phase Angle (Φ)
• Energy (WH, KWH)
• Balanced 3Φ Power Quality
• Balanced 3Φ Sequence
• Programmable CT Ratio (1 to 250)
• Dual Displays (W + PF, VA + KVAR...)
• Active power in HP
• Resistance and Continuity with Beeper

HARMONICS ANALYSIS :

• True RMS value (V and A) at 0.5% basic accuracy 1500 A AC
• Harmonics Analysis (V and A) to the 99th Order in % and in magnitude
• Better Understaning of High Frequency Harmonic Analysis (up to 5/6/KHz)
• Non-interrupted Harmonic Analysis
• Analysis of Total Harmonic Distortion(%THD-F)
• Analysis of Crest Factor (C.F.)
• Fast Peak Function (33μs for 60Hz and 39μs for 50Hz)
• Max, Min & Data Hold Function

Accessories:

• Pair of test leads x 1,
• Instruction manual x 1,
• 1.5V batterys (installed) x 2,
• Carring Case x 1

General Specifications:

• Jaw Opening : Cable Dia 55mm (approx.), 64 x 24mm (Bus Bar)
• Battery Type : 1.5V SUM-3 x 2
• Display : 4+4 digits LCD
• Auto-Power-Off : 30 minutes
• LCD update rate : 2 times / sec.
• Operating Temperature : -100C to 500C
• Storage Temperature : -200C to 600C
• Option : alligator clips
• Power Consumption : 10mA (approx.)
• No. of Samples/Period : 512 (V & A), 256 (W)
• Operating Humidity : < 85% relative
• Storage Humidity : < 75% relative
• Weight : 650gms (approx.) Including Battery
• Dimension : 271 x 112 x 46 mm

Specifications:

Harmonics of AC Current in % & Magnitude (1 - 99th order)
Range	Resolution in %	Accuracy in %	Resolution in Magnitude	Accuracy in Magnitude
1 - 20th	0.1%	±2%	0.1A	±2% of reading ±0.4A
21 - 49th		4% of reading ±2.0%		±4% of reading ±0.4A
50 - 99th		6% of reading ±2.0%		±6% of reading ±0.4A



Harmonics of AC Voltage in % & Magnitude
Range	Resolution in %	Accuracy in %	Resolution in Magnitude	Accuracy in Magnitude
1 - 20th	0.1%	±2%	0.1V	±2% ±0.5V
21 - 49th		4% of reading ±2.0%		±4% of reading ±0.5V
50 - 99th		6% of reading ±2.0%		±6% of reading ±0.5V



Crest Factor (C.F., Accuracy of Readings)
Range	Resolution	Accuracy
1.00 - 99.99	0.01	± 5% ± 30 dgt



AC Watt (50 or 60Hz)
Range	Resolution	Accuracy
10.0 - 999.9W	0.1W	±2% ± 20 dgt (>20V & >20A) ±2% ± 40 dgt (<20V or <20A)
1.000 - 9.999KW	0.001KW
10.00 - 99.99KW	0.01KW
100.0 - 999.9KW	0.1KW
1000 - 9999KW	1KW



Power Factor & Phase Angle
Range	Resolution	Accuracy
0.000 - 1.000	0.001	±0.04
-180°to180° & 0°to360°	0.1°	± 2°



AC Current (50 or 60Hz, True RMS)
Range	Resolution	Accuracy
10.0 to 1500.0A	0.1A	±2% ±5 dgts



AC Voltage (50 or 60Hz, True RMS)
Range	Resolution	Accuracy
10.0 to 600.0V	0.1V	±0.5% ±5 dgts



Total Harmonic Distortion ( THD-F, 1 to 50th order)
Range	Resolution	Accuracy in %
0.0 - 20%	0.1%	±2%
20 - 100%		±6% of reading ±1%
100 - 999.9%		±10% of reading ±1%



Resistance ( ) V and Continuity (Beep if less than 50V)
Range	Resolution	Accuracy
7.0 - 999.9V	0.1V	± 5V
1000 - 1200V	1V

* If reading is less than 7V, it is displayed as 0V
