DC Voltage:

• Range: 6V / 60V / 600V
• Resolution: 1mV / 10mV / 100mV
• Accuracy: ±0.8% of reading ± 1 digits

DC Current:

• Range: 600µA / 6000µA / 60mA / 6A / 10A
• Resolution: 0.1µA / 1μA / 0.01mA / 0.1mA / 0.001A / 0.01A
• Accuracy: ±1.0% of reading ± 5 digits / ±1.5% of reading + 5 digits

Resistance:

• Range: 6000Ω / 6KΩ / 60KΩ / 600KΩ / 6MΩ / 60MΩ
• Resolution: 0.1Ω / 0.001Ω / 0.01Ω / 0.1kΩ / 0.001MΩ / 0.01MΩ
• Accuracy: ± 1.2% of reading ± 2 digits / ± 1.0% of reading ± 2 digits / ± 1.2% of reading ± 2 digits / ±1.5% of reading ± 2 digits

Frequency:

• Range: 10Hz / 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz
• Resolution: 0.01Hz / 0.1Hz / 0.001kHz / 0.01kHz / 0.1Khz / 0.001MHz / 0.01MHz
• Accuracy: ±0.5% of reading ± 3 digits

AC Voltage:

• Measuring Range: 6V / 60V / 600V
• Resolution: 1mV / 10mV / 100mV
• Accuracy: +(0.8% + 3dgts)

AC Current:

• Range: 600µA / 6000μΑ / 60mA / 600mA / 6A / 10A
• Resolution: 0.1μΑ / 1μΑ / 0.01mA / 0.1mA / 0.001A / 0.01A
• Accuracy: ± 1.0% of reading ± 5 digits / ± 1.5% of reading ± 7 digits

Capacitance:

• Range: 6nF / 60nF / 600nF / 6µF / 60µF / 600µF
• Resolution: 0.001nF / 0.01nF / 0.1nF / 0.001µF / 0.01μF / 0.1uF
• Accuracy: ± 4.0% of reading ± 3 digits / ± 5.0% of reading ± 10 digits

Features:

• NCV
• Capacitance
• Frequency
• Duty Cycle
• hFE
• Data Hold
• Backlight
• Max. Hold
• Temperature

What's Included In This Package:

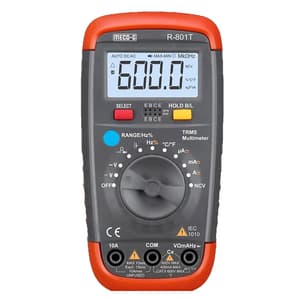

• 1x R-801T Meco-G Pocket size multimeter
• 1x Test Leads
• 1x Instruction Manual
• 1x K-Type Thermocouple Leads
• 1x Carrying Case

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
