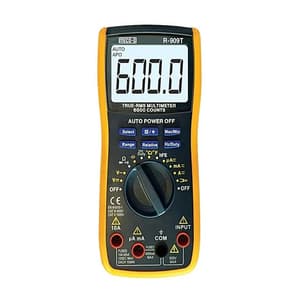

Meco-G 3-5/6 Digits / 6000 Counts TRMS Auto-Ranging Professional Digital Multimeter, R-909T
Roll over image to zoom zoom_in
- Weight: 360 Grams
- Product Type: Multimeter
- Battery Type: 6F22
- Battery Voltage: 9 V
- Display: 3-5/6 Digits LCD Display
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹2443.78 (Incl. of all taxes)
₹2071+ ₹372.78 GST (18%)
MRP ₹3045
SAVE 32%
5 Business Days
1 Pcs
9030
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
DC Voltage:
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
- Range: 600 mV to 1000 V
- Resolution: 0.1mV / 1mV / 10mV / 100mV / 1V
- Accuracy: ±(0.8% + 5 dgt)
- Range: 600µA to 10Amp
- Resolution: 1µA / 10µA / 100µA / 10mA
- Accuracy: 0.1µA / 1µA / 0.01mA / 0.1mA / 0.001A / 0.01A
- Range: 600? / 6K? / 60K? / 600K? / 6M? / 60M?
- Resolution: 0.1Ω / 0.001kΩ / 0.01kΩ / 0.1kΩ / 0.001MΩ / 0.01MΩ
- Accuracy: ±(1.5% + 5 Digit)
- Measuring Range: 600mV to 750V
- Resolution: 0.1mV / 1mV / 10mV / 100mV / 1V
- Accuracy: ±(1.2% rdg + 8 Digits)
- Range: 600µA to 10Amp
- Resolution: 0.1µA / 1µA / 0.01mA / 0.1mA / 0.001A / 0.01A
- Accuracy: ±2.0% + 10 Digit
- Range: 60nF / 600nF / 6µF / 60µF / 600µF / 20µF
- Resolution: 0.01nF / 0.1nF / 0.001μF / 0.01μF / 0.1μF / 0.1μF
- Accuracy: ±(0.8% + 5 digit)
- Range: Upto 60 MHz
- Accuracy: ± 1.0% ± 5 Digits
Features:
- Auto-Ranging
- NCV
- Capacitance
- Frequency
- Duty Cycle
- hFE
- Backlight
- Max. Hold
- Relativity
- Temperature
- Data Hold
What's Included In This Package:
- 1x R-909T Meco-G Professional Digital multimeter
- 1x Test Leads
- 1x K-Type Thermocouple Leads
- 1x Carrying Case
- 1x Instruction Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00109 |
|---|---|
| Product Type | Multimeter |
| Model No | R-909T |
| Battery Type | 6F22 |
| Battery Voltage | 9 V |
| Counts | 6000 |
| Display | 3-5/6 Digits LCD Display |
| Operating Humidity | <80% RH |
| Operating Temperature | 0 to 40 deg C |
| Safety Standard | As per GB4793-1, IEC 61010-1, CAT II 600V. |
| Storage Temperature | -10 to 50 deg C |
| Temperature Accuracy | ±5% + 4 digit |
| Temperature Range | -40 deg - 1370 deg C |
| Length x Width x Height (mm) | 180 mm x 87 mm x 47 mm |
