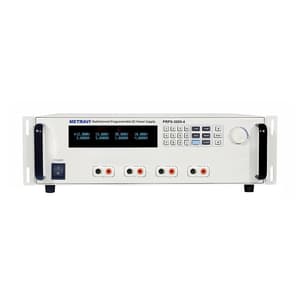

Metravi 0 - 30V / 0 - 5A Programmable DC Regulated Power Supply (Four Output), PRPS-3005-4
Roll over image to zoom zoom_in
- Weight: 23 Kg
- Product Type: Power Supply
- Output Voltage: 0 - 30V
- Output Current: 0 - 5A
- Interface: RS-232
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹159642.2 (Incl. of all taxes)
₹135290+ ₹24352.2 GST (18%)
MRP ₹198956
SAVE 32%
5 Business Days
1 Set
85042100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
Programmable DC Regulated Power Supply with Four Outputs and Backlit LCD Display of Variable 0 – 30V / 0– 5A DC.
Features:
- 4 in 1 easy to install and takes up small space
- Output voltage and current: 30V/5A
- Each channel is independently adjustable and isolated from each other
- Four channels simultaneously display voltage and current
- Voltage compensation function to ensure accuracy
- 1mV/0.1mA high resolution
- Linear power supply, low ripple
- Panel operation, it is convenient to be used independently
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.EL.PO.00066 |
|---|---|
| Product Type | Power Supply |
| Model No | PRPS3005-4 |
| Type of Product | Programmable DC Power Supply |
| Output Voltage | 0 - 30V |
| Output Current | 0 - 5A |
| Transformation method | Linear power supply |
| Load Regulation Voltage Rate | <0.02%+5mV |
| Load Regulation Current Rate | <0.02%+5mA |
| Line Regulation Voltage | <0.02%+5mV |
| Line Regulation Current | <0.02%+5mA |
| Set Value Voltage Resolution | 1mV |
| Set Value Current Resolution | 0.1mA |
| Setting Voltage Accuracy (25°C±5°C) | <0.05%+5digits |
| Setting Current Accuracy (25°C±5°C) | <0.05%+2mA |
| Readback Voltage Resolution | 1mV |
| Readback Current Resolution | 0.1mA |
| Readback Voltage Accuracy | <0.05%+5digits |
| Readback Current Accuracy | <0.05%+2mA |
| Ripple & Noise For Voltage | <2mV(rms) |
| Ripple & Noise For Current | <5mA(rms) |
| Interface | RS-232 |
| Size | 480 x 142 x 370 mm |
