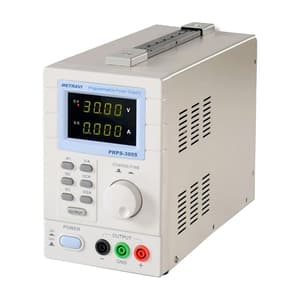

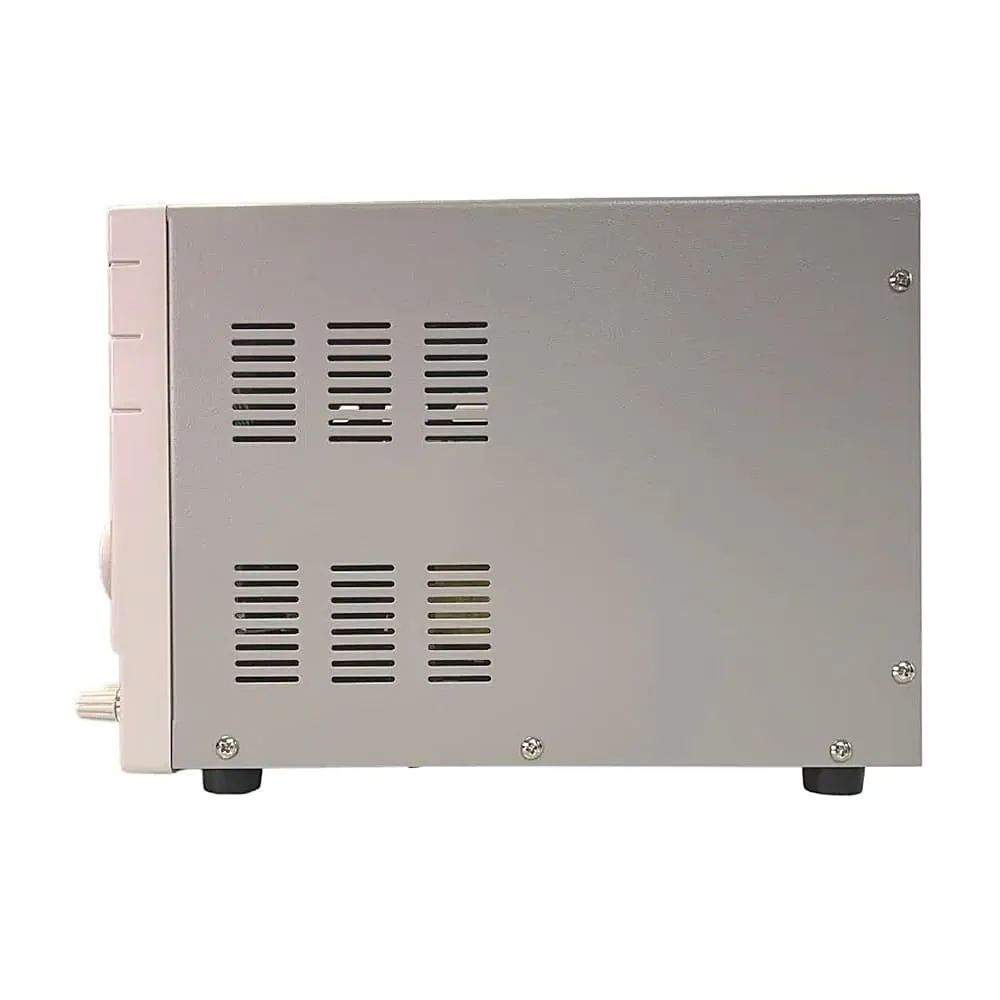

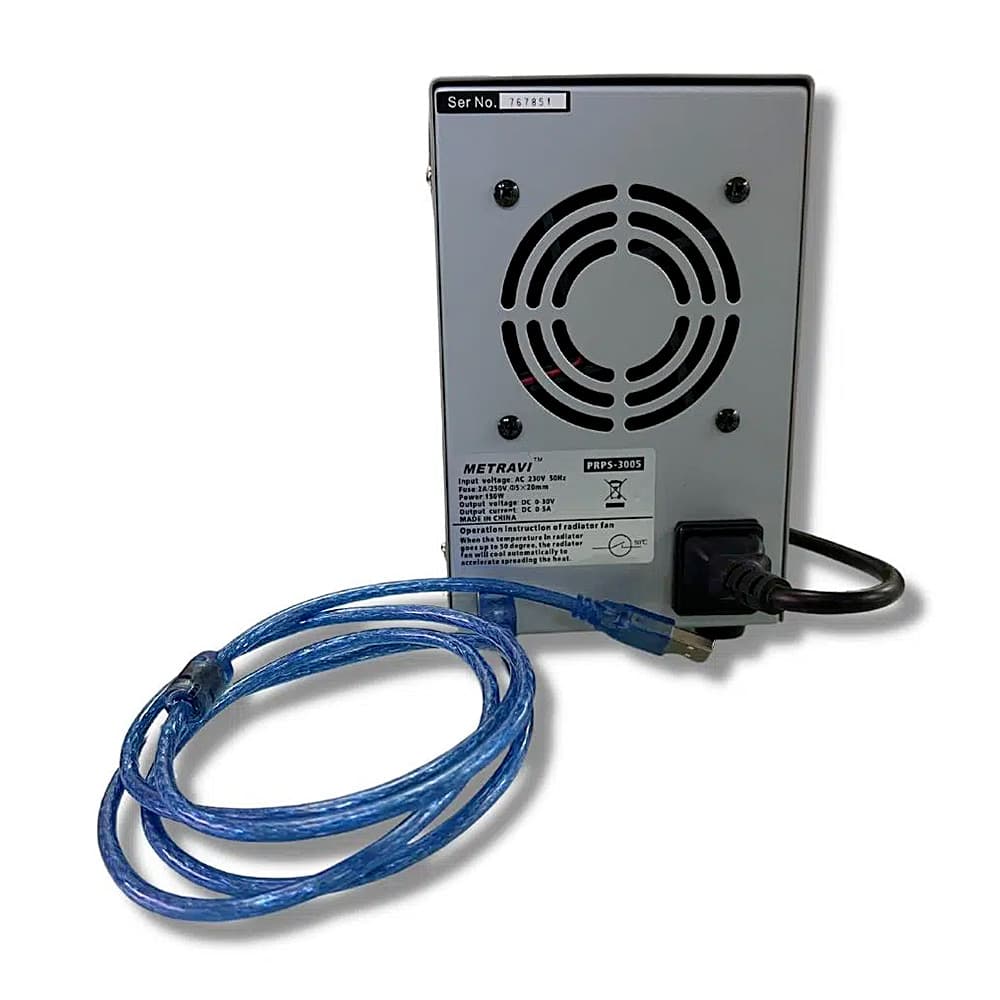

Metravi 0 - 30V / 0 - 5A Programmable DC Regulated Power Supply (Single Output), PRPS-3005
- Product Type: Power Supply
- Output Voltage: 0 - 30V
- Output Current: 0 - 5A
- Input Voltage: 220V/50Hz
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹13042.54 (Incl. of all taxes)
₹11053+ ₹1989.54 GST (18%)
MRP ₹16254
SAVE 32%
5 Business Days
1 Set
85042100
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
The PRPS-3005 is a highly accurate, DC-regulated power supply with an adjustable output. This output can be used for constant voltage (C.V.) and constant current (C.C.). The output voltage can be adjusted between 0V and 30V when the device is in the constant voltage mode. The current-limiting point can be set arbitrarily in this mode. The output current can be adjusted continuously between 0A and 5A in the constant current mode. The output current and voltage are indicated on the LED displays.
The Metravi PRPS-3005 Bench-top Programmable Remote-controlled (USB and LAN) DC Power Supply has great protection capability and can protect a user’s device from getting burnt/damaged. It is designed for industrial, laboratory and other engineering solutions and includes free software for Windows (including Windows 10). It is designed to power radio technical equipment with stabilised voltage and current for repair processes and laboratory research. It is the perfect instrument for repair services and for use in scientific and research laboratories.
The Metravi PRPS series differ from other similar devices as we provide wide capabilities of local and remote control through the software and they are capable of operating in several modes:
- Manual control mode. Including the use of 4 memory cells to store preset voltage and current.
- Control mode with the built-in memory use.
- Remote control mode using computer via USB interface which has full galvanic isolation between the power supply and the computer.
Features:

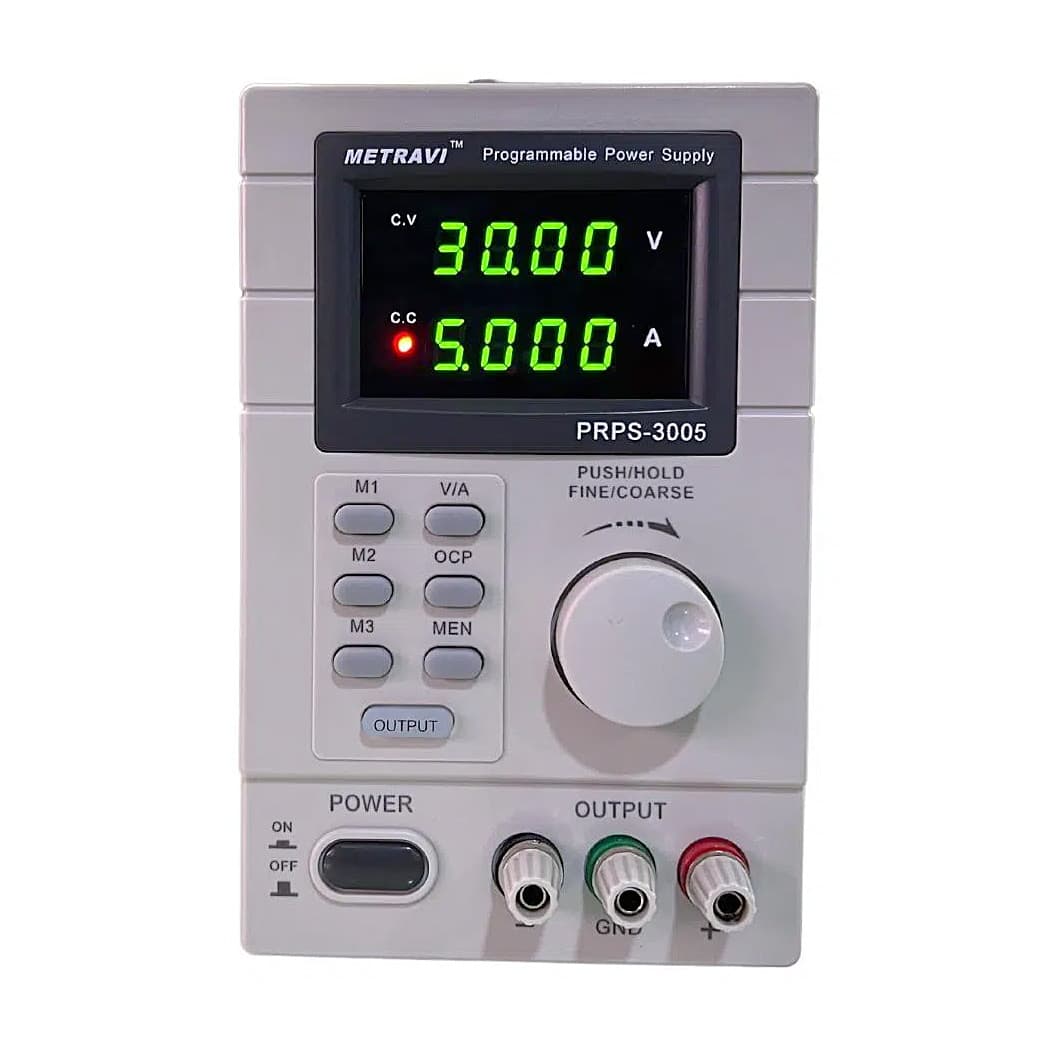

- Dual LED display for Voltage and Current
- Coarse and fine adjustments of Voltage and Current
- Protection mode: current limiting
- Output connectors: insulated safety plugs
- Organic glass front panel / other panels made of steel
- Memory: 3 programmable memories
- Computer connectivity: PC remote control via USB interface
- Software included
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.EL.PO.00060 |
|---|---|
| Product Type | Power Supply |
| Model No | PRPS3005 |
| Type of Product | Programmable DC Power Supply |
| Output Voltage | 0 - 30V |
| Output Current | 0 - 5A |
| Display | Backlit LCD, Dual LED |
| Colour | White |
| Input Voltage | 220V/50Hz |
| No of Output | Single Output |
| Interface | USB |
| Setting Resolution | 10mV, 1mA |
| Setting Accuracy | <0.5%+10mA, <0.5%+20mV |
| Ripple and Noise | <2mV(rms), <3mA rms |
| Readback Accuracy | 10mV, 1mA |
| Reaction Time | Voltage Drop: <100ms, Voltage Rise: <100ms |
| Load Regulation Rate | CC <0.1% + 10mA, CV <0.01% + 2mV |
| Temperature Coefficient | <100 ppm + 10mV, <100 ppm + 5mA |
