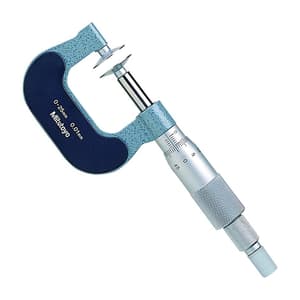

Mitutoyo 0 - 25 mm Non-Rotating Spindle Disk Micrometer, 169-201-10
Roll over image to zoom zoom_in
- Weight: 230 Grams
- Product Type: Disk Micrometer
- Range (mm): 0 - 25 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹13646.7 (Incl. of all taxes)
₹11565+ ₹2081.7 GST (18%)
MRP ₹15420
SAVE 25%
1 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
This Disc Micrometer has a non-rotating spindle and allows you to measure a range of different materials.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Features:
- Measures "root tangent length" of spur gears and helical gears.
- Equipped with a Ratchet Stop for constant measuring force.
- A non-rotating spindle and disc-shaped measuring surfaces.
- Measuring the root tangent length of spur and helical gears
- It‘s suitable for measuring materials such as felt, rubber, cardboard & fabric.

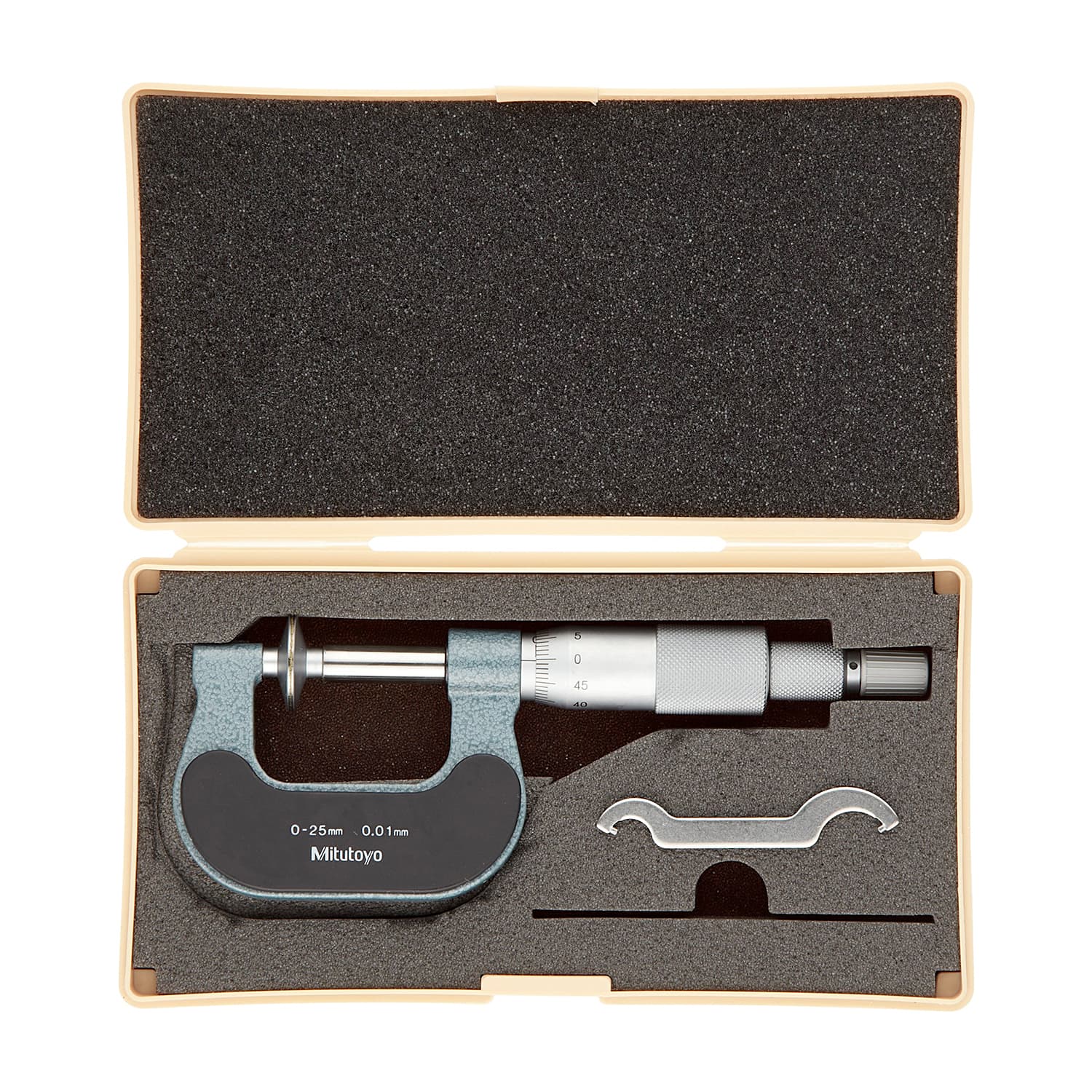

Package Content:
- Disc Micrometer
- Spanner

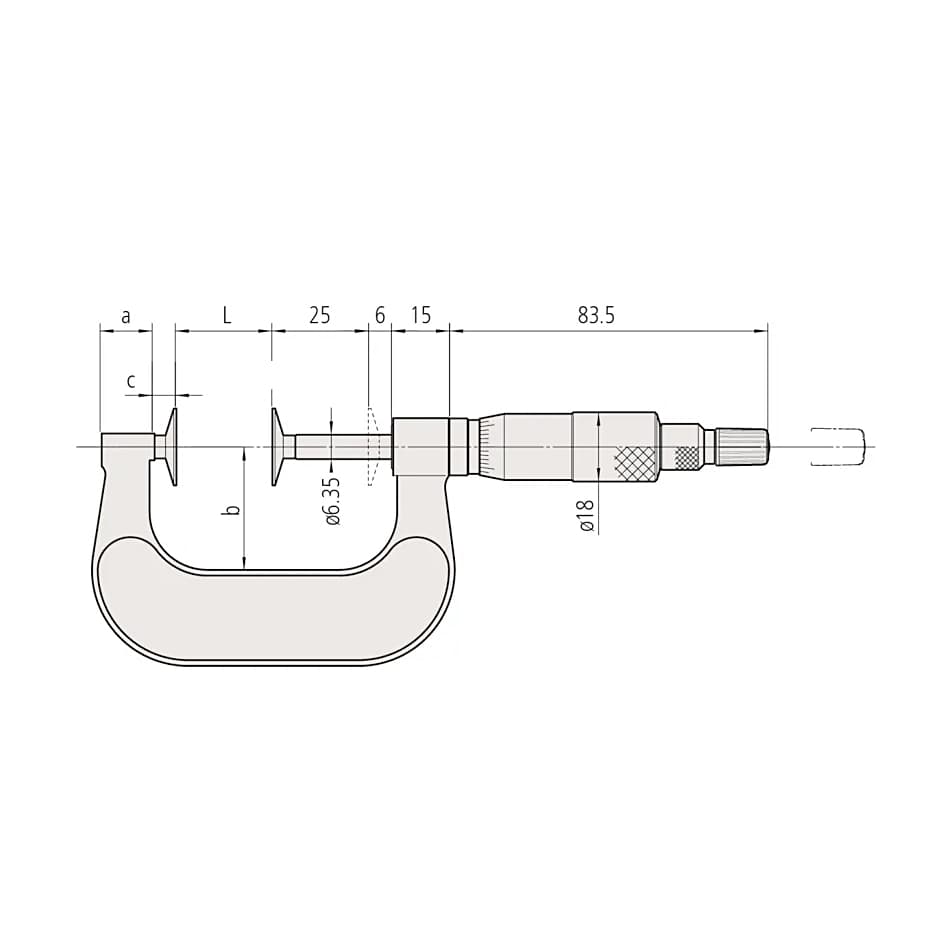

Dimensions Measurement:
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.MI.DI.00053 |
|---|---|
| Product Type | Disk Micrometer |
| Model No | 169-201-10 |
| Range (mm) | 0 - 25 mm |
| Graduation | 0.01 mm |
| Max. Permissible Error JMPE (µm) | ±4µm |
| Anvil Dia (mm) | Ø20 mm |
| Flatness | 1µm |
| Parallelism | 4µm |
| Measuring Force | 3 - 8 N |
| Disk Size | 20 mm |
| Scale | Thimble & Sleeve Satin Chrome Finish |
| Measuring Face | Hardened Steel, Micro-lap Finish |
