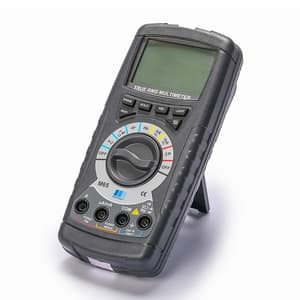

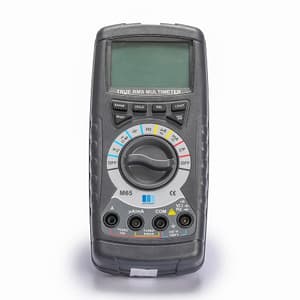

Motwane’s M65 dual display TRMS digital multimeter is specially designed in our research laboratory to measure precise results. It is manufactured under stringent manufacturing processes for R&D and process industries. M65 has a 6000 counts LCD dual display to measure facilities like capacitance, resistance, diode, and continuity along with µ Amp. range & DCV accuracy of 0.25%. M65 helps you troubleshoot and repair electrical and electronic systems. It is a high performance multimeter complying with IEC 61010-1 safety standards and with CE, CAT III 1000 V safety rating, and IP-54 protection. M65 is a design marvel with a robust and rugged double mold casing.

Features:

• 6,000 counts LCD dual display with a white backlight
• Auto-ranging, TRMS AC voltage & current measurement
• Basic DCV accuracy of 0.25%
• Highly linear readings
• Capacitance range of up to 60mF
• Resistance, diode, and continuity measurement facility
• Selectable frequency & duty cycle measurement
• 60 positions analog bar graph for trend indication
• SELECT, RANGE, HOLD, REL, LlGHT, MAX/MIN functions incorporated
• CE and IEC 61010-1 CAT III (1000V), and IP 54 protection
• Robust, rugged, and double mold casing.
• Dual Display: For AC voltage with frequency & frequency with duty cycle simultaneously
• Auto Power OFF: After 15 minutes, ideal sleep mode. consumption is 1.3mA approx. (Can be canceled by pushing any except for the Hold & SELECT key before powering on the meter).
• Fuse Protection for ‘µA’ & : 0.8 A/ 250V fast blow type ceramic fuse. ‘mA’ input terminal
• Fuse Protection for 10A : 20A/ 500V fast blow type ceramic fuse input terminal

Application:

• Power Utility
• Industries
• Electrical Contractor
• Telecommunication
• Railway
• Defense

Accuracy:

• All accuracy is claimed from 10% to 95% of the range.
• Accuracy is specified as ±(% of reading + digits) and is valid 0 at 25 ± 3 C, £ 55% RH humidity.
• It is recommended that calibration equipment to verify the instrument’s accuracy should be ten times more accurate.
• Temp. Coefficient = (0.1% x specified accuracy) per degree centigrade referred to 25°C. Accuracy is not valid if the display shows ‘LO BAT.’

Safety:

• Directives for CE Certification : LVD:2006/95/EC., EMC: 2004/104/EC
• Measurement Category : CAT III, (1000V) Reinforced Insulation.
• Relevant Standard Specification : EN 61010-1:2010, EN 61326-1:2006

Package Content:

• Digital Multimeter
• User Manual
• Battery installed
• Fuses
• Carry Bag

Technical Data:

DC Voltage:

Range	Resolution	Max. Reading	Accuracy	Overload protection
6V	1 mV	6.000 V	±(0.25% + 3)	1050V DC/AC RMS
60V	10 mV	60.00 V	±(0.25% + 3)
600V	100 mV	600.0 V	±(0.25% + 3)
1000V	1 V	1000 V	±(0.5% + 3)

• Note: 1. Input Impedance 10M?approx.
• 600mV Range will be displayed in manual ranging only (Unspecified accuracy).

AC Voltage  (50-500Hz)Trms:

Range	Resolution	Max. Reading	Accuracy	Overload protection
6V	1 mV	6.000 V	±(1% + 5)	1050V DC/AC RMS
60V	10 mV	60.00 V	±(1% + 5)
600V	100 mV	600.0 V	±(1% + 5)
1000V	1 V	1000 V	±(1.2% + 8)

• Note: 1. Input impedance: 10 M? approx. shunted by 60pF approx.
• 600mV Range will be displayed in manual ranging only (unspecified accuracy).
• Main display shows AC Voltage & sub-display shows frequency applied.

DC Current Rang:

Range	Resolution	Max. Reading	Accuracy	Overload protection
600µA/6000µA	0.1µA/1µA	600.0µA/6000µA	±(1.2% + 5)	0.8A/ 250V DC/AC fuse protection
60mA/600 mA	10µA/100µA	60.00mA/600.0 mA	±(1.5% + 5)
10 A	10 mA	10.00 A	±(1.5% + 8)	20A/250V DC/AC fuse protection

AC Current Range (50Hz-500Hz) Trms:

Range	Resolution	Max. Reading	Accuracy	Overload protection
600µA/6000µA	0.1µA/1µA	600.0µA/6000µA	±(1.5% + 5)	0.8A/ 250V DC/AC fuse protection
60mA/600 mA	10µA/100µA	60.00mA/600.0 mA	±(1.8% + 5)
10 A	10 mA	10.00 A	±(2.0% + 8)	20A/250V DC/AC fuse protection

• Note: The main display shows AC Current and the sub-display shows frequency applied.

Resistance Range:

Range	Resolution	Max. Reading	Accuracy	Overload protection
600 Ohm	0.1 Ohm	600.0 Ohm	±(0.5% + 3)	440V DC/AC rms
6 KOhm	1 Ohm	6.000 Ohm	±(0.5% + 3)
60 KOhm	10 Ohm	60.00 KOhm	±(0.5% + 3)
600 KOhm	100 Ohm	600.0 KOhm	±(0.5% + 3)
6 MOhm	1 KOhm	6.000 MOhm	±(1% + 5)
60 MOhm	10 KOhm	60.00 MOhm	±(3% + 10)

• Note: 1. Open circuit voltage on 600Ohm range is -3.3V DC approx.
• 2.Open circuit voltage on 6kOhm - 6MOhm ranges is -1.10V DC approx.
• 3.Open circuit voltage on 60MOhm range is -600mV approx.

Capacitance Range (Auto-Ranging Only):

Range	Resolution	Max. Reading	Accuracy	Overload protection
6 nF	0.001 nF	6.000 nF	±(5.0% + 10)	440V DC/AC RMS
60 nF	0.01 nF	60.00 nF	±(3.0% + 10)
600 nF	0.1 nF	600.0 nF	±(3.0% + 10)
6 µF	1 nF	6.000 µF	±(3.0% + 10)
60 µF	10 nF	60.00 µF	±(3.0% + 10)
600 µF	100 nF	600.0 µF	±(5.0% + 10)
6 mF	1 µF	6.000 mF	±(5.0% + 20)
60 mF	10 µF	60.00 mF	±(5.0% + 30)

• Note: 1. Settling time on 6mF and 60mF range is 40 secs. approx.
• Press the REL button at 6nF & 60nF ranges so that the offset count can be subtracted from the measurement.
• Now apply low value capacitance.

Diode Test:

Range	Resolution	Open Circuit Voltage	Test Current
6V	1mV	≤3.0 V DC approx.	≤2.0mA approx.

Continuity Test:

Range	Resolution
600.0 Ohm	0.1Ohm	Meter Beeps < 60Ohm

• Note: Open Circuit Voltage on continuity range is -3.3VDC approx.

Frequency Ranges (Auto-Ranging Only)

Range	Resolution	Max. Reading	Accuracy	Overload protection
60 Hz	0.01 Hz	60.00 Hz	±(0.5% + 3)	1000V DC/AC RMS
600 Hz	0.1 Hz	600.0 Hz	±(0.5% + 3)
6 kHz	1 HZ	6.000 kHz	±(0.5% + 3)
60 kHz	10 Hz	60.00 kHz	±(0.5% + 3)
600 kHz	100 Hz	600.0 kHz	±(0.5% + 3)
6 MHz	1 kHz	6.000 MHz	±(0.5% + 3)
60 MHz	10 kHz	60.00 MHz	±(0.5% + 3)

• Note: The main display shows frequency & the sub-display shows the duty cycle.
• If the input frequency is less than 6.0Hz, the Display will show 0.00Hz.

Duty Cycle Measurement

Range	Resolution	Accuracy	Overload Protection
0.1%-98.9%	0.1%	±(0.5% + 30)	440V DC/AC RMS

• Accuracy is specified at <20 VAC rms
• Sensitivity : 10Hz to 100 kHz > 200mVrms,
• 1000 kHz to 10MHz > 2Vrms
• Electromagnetic compatibility: In RF Field, overall accuracy is equal to 10% of reading +30 digits
