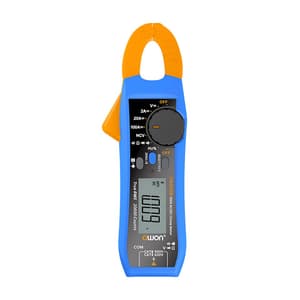

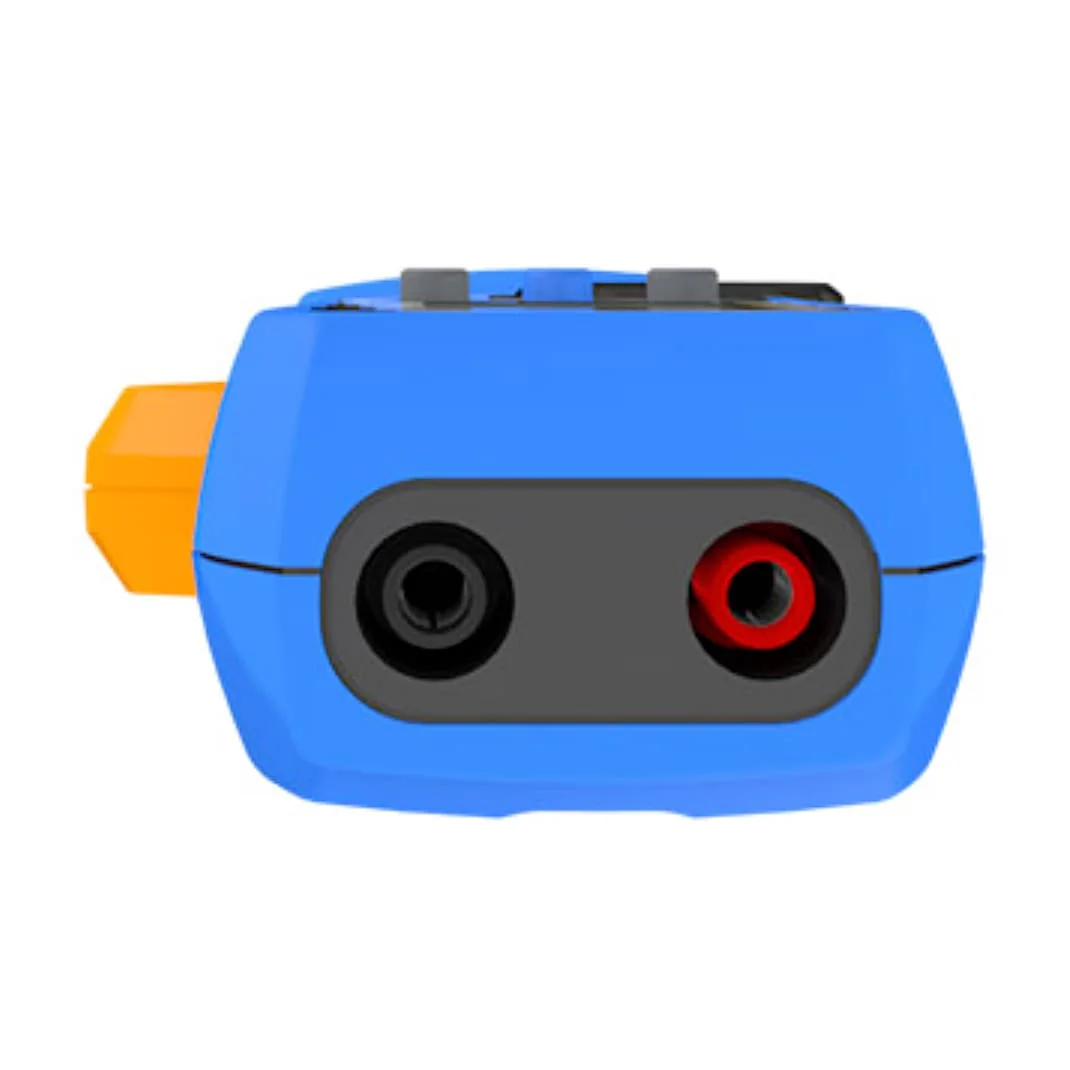

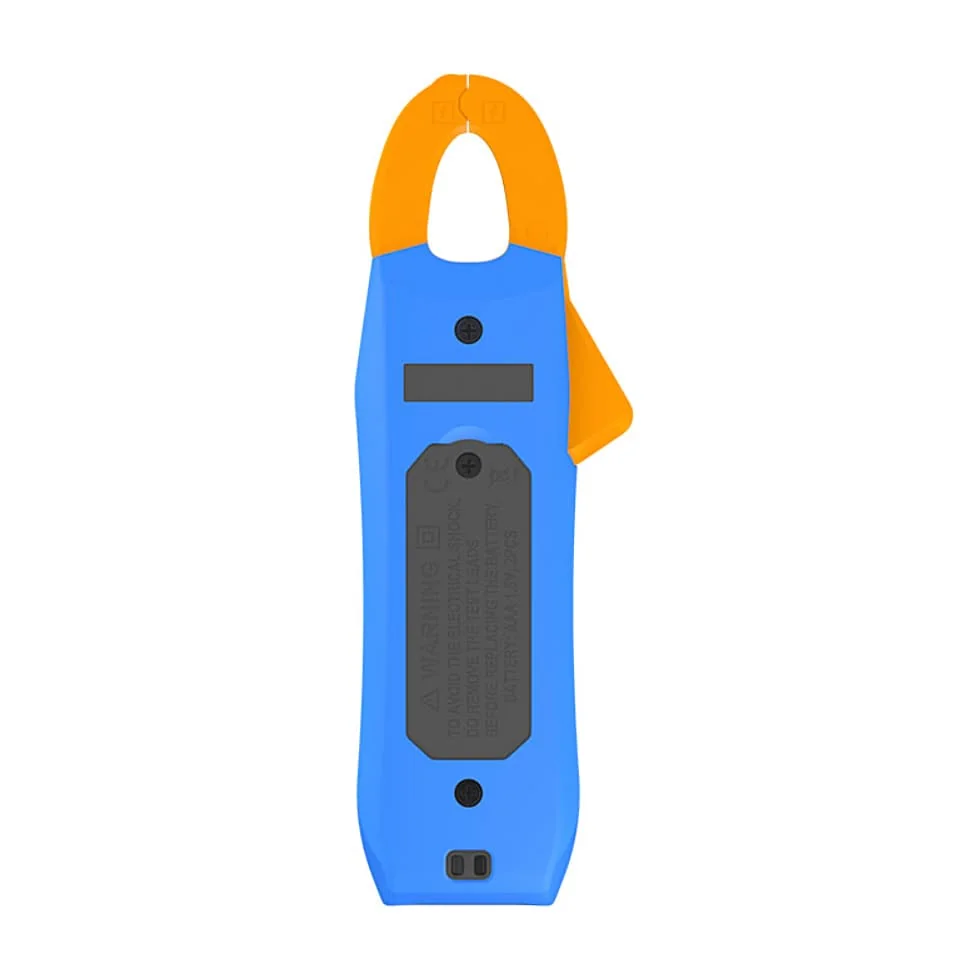

Owon 20000 Counts Smart AC/DC Clamp Meter, CM 2100B
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 200 g
- Display Counts: 20000 counts
- Frequency: 40Hz - 1000Hz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,515 (Incl. of all taxes)
₹4,674 + ₹841 GST (18%)
MRP was MRP ₹5,700
Save 18%
5 Business Days
1
90303100
Download Product LeafletNot available
Download OWON CatalogueNot available
Download OWON CatalogueNot available
Product Information
Highlights
- AC/DC current, AC/DC voltage
- 20000 count true RMS automatic range clamp meter
- Standard non-contact AC voltage sensing (NCV) function
- VFC mode can filter high-frequency interference signals to ensure accurate measurement data.
- AC frequency response up to 1000Hz
- Small size, easy to carry
- Bluetooth communication function, supporting Android and Apple phones, enabling remote data viewing and instrument control.

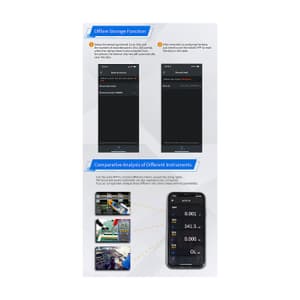

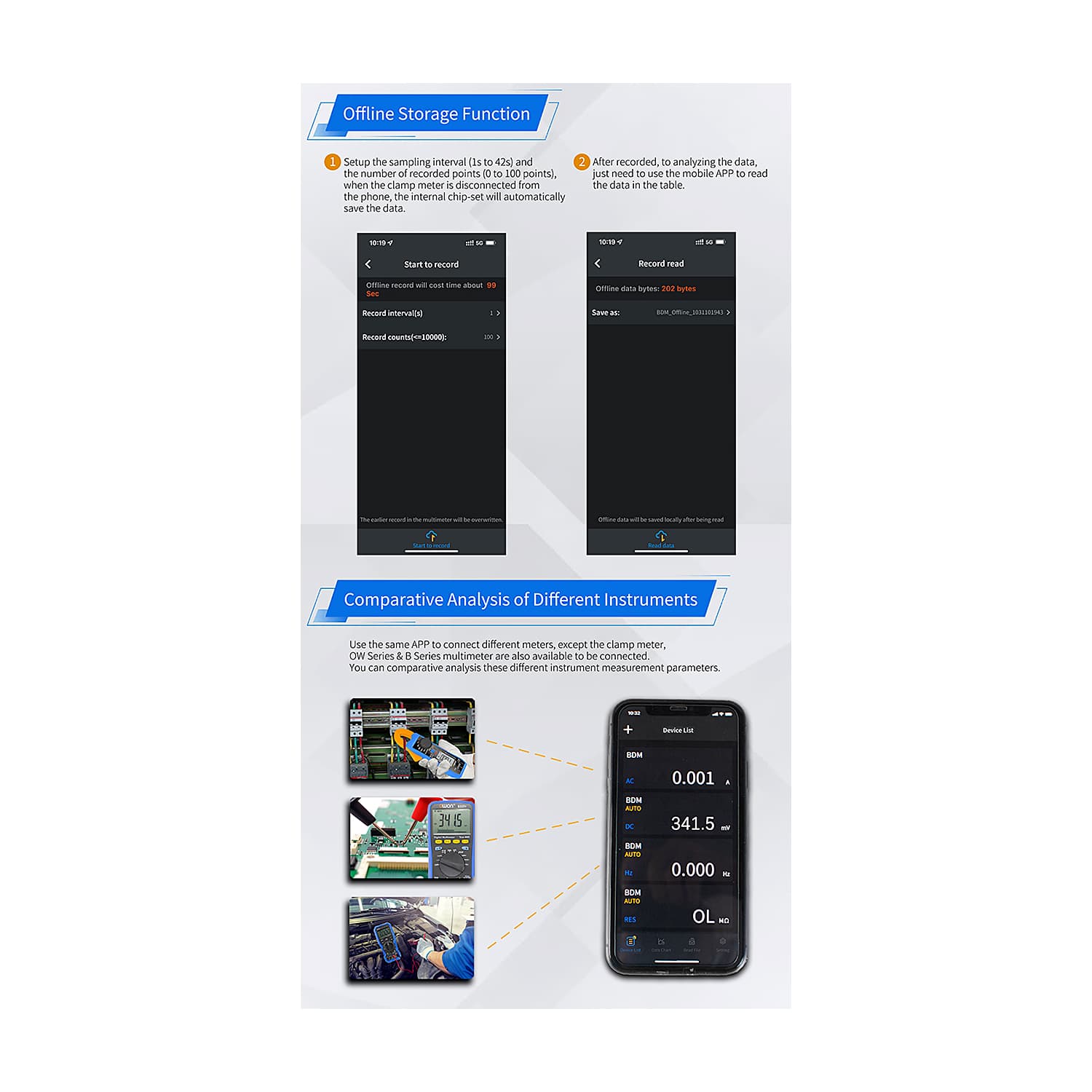

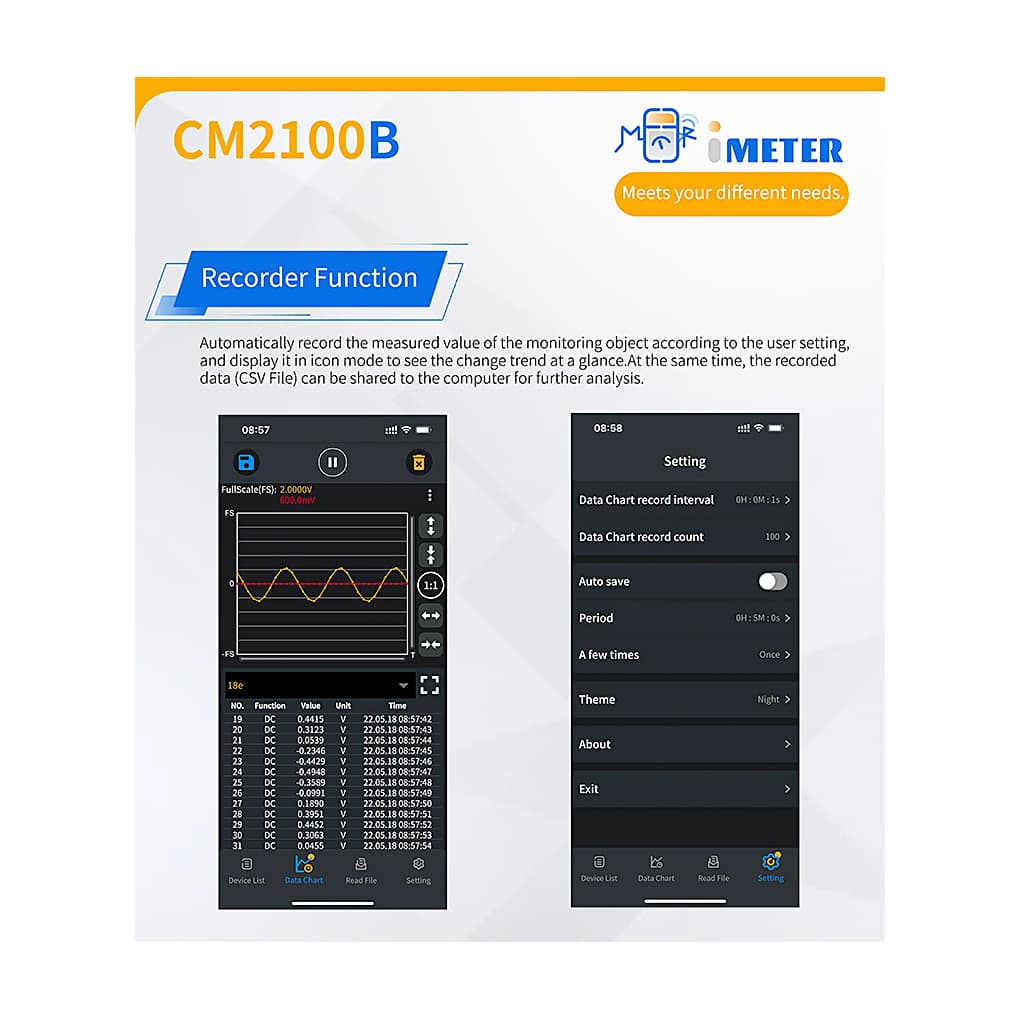

- Support the recording function, record and analyze the measured values, share the recorded data and work together.
Technical Data:
| Range | Accuracy | ||
|---|---|---|---|
| AC Current (A) | 2.000A | ±(3%+10dig) in VFC ±(4%+10) | |
| 20.00A / 100.0A | ±(2.5%+5dig) in VFC ±(4%+10) | ||
| AC Voltage(V) | 2.0000V / 20.000V / 200.00V / 600.0V | ±(0.8%+10dig) in VFC ±(4%+3) | |
| DC Current (A) | 2.000A | ±(2%+8dig) | |
| 20.00A / 100.0A | ±(2%+3dig) | ||
| DC Voltage(V) | 200.00mV | ±(0.7%+10dig) | |
| 2.0000V / 20.000V / 200.00V / 600.0V | ±(0.5%+5dig) | ||
| Resistance(R) | 200.0Ω | ±(0.8%+10dig) | |
| 2.0000kΩ | ±(0.5%+10dig) | ||
| 20.000kΩ / 200.00kΩ / 2.0000MΩ | ±(0.5%+10dig) | ||
| 20.000MΩ | ±(1%+10dig) | ||
| 200.00MΩ | ±(5.0%+10dig) | ||
| Capacitance (F) | 2.000nF | ±(4.0%+10dig) | |
| 20.00nF / 200.0nF / 2.000uF / 20.00uF / 200.0uF / 2.000mF / 20.00mF | ±(3.0%+10dig) | ||
| Frequency (Hz) | 200.00Hz / 20.000kHz / 200.00kHz / 2.0000MHz / 20.000MHz | ±(0.1%+5dig) | |
| Duty cycle (%) | 0.1% - 99.9%( typical: Vrms=1 V, f=1kHz) | ±(1.2%+3dig) | |
| 0.1% - 99.9%(≥1 kHz) | ±(2.5%+3dig) | ||
Functions:
- Auto Ranging
- Date Hold
- Diode
- Continuity Buzzer
- NCV
- VFC
- Bluetooth
- Zero
- Low-battery Indicator
- Relative Measurement
- Input Protection
- Input Impedance (≥10MΩ)

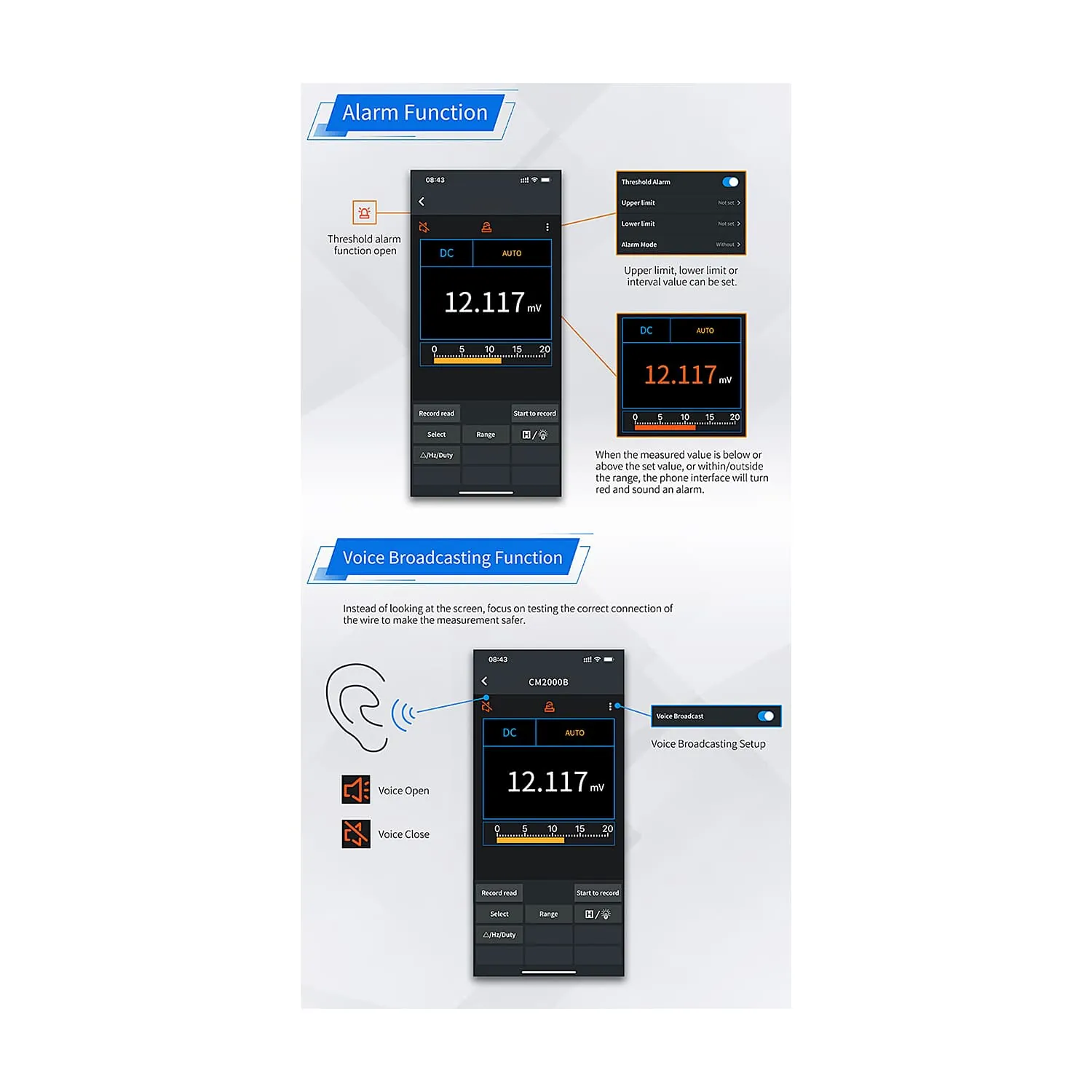

- Overrange Alarm
- On-off Warning
Packaging Content:
- AC/DC Clamp Meter
- Quick Guide
- Multimeter Leads
- Soft Bag
- Bolt Driver
- Battery (1.5VAAA,optional)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Counts | 20000 counts |
|---|---|
| Frequency | 40Hz - 1000Hz |
| AC/DC Voltage | 600V |
| AC/DC Current | 100A |
| Jaw Opening (mm) | 17 mm |
| LCD Sizes | 40 mm x 20 mm |
| Working Temperature | 0 - 40°C |
| Storage Temperature | -10 ~ 60°C |
| Relative Humidity | < 80% |
| Altitude | 3000 meters (Operating) / 15000 meters (Non-operating) |
| Power Supply | 2x 1.5V 3V AAA Alkaline Battery |
| Dimensions (L x W x D) | 182 x 57 x 32 mm |
