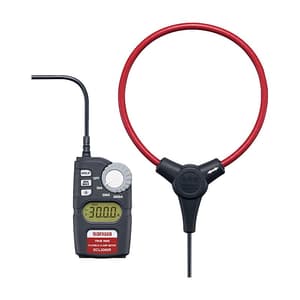

Sanwa 3000A AC Digital TRMS Clamp Meter with Flexible CT, DCL3000R

Shop all Sanwa

SKU: ME.EL.CL.00239

Model: DCL3000R

Roll over image to zoom zoom_in
  1. Sanwa 3000A AC Digital TRMS Clamp Meter with Flexible CT, DCL3000R

  • Weight: 300 Grams
  • Product Type: Clamp Meters
  • Voltage Range: 30/300/3000A
  • Voltage Accuracy: ±(3.0%+5)
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

26550 (Incl. of all taxes)

22500+ ₹4050 GST (18%)



7 Business Days

1 Pcs

90303390

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • Flexibility facilitating conductor clamping even in narrow space
  • MAX/MIN value hold
  • Air-core coil for weight reduction
  • Auto power off (15 min./Cancelable)

Data Hold
A value indicated on the display is fixed even after the test lead is removed, and can be used as a record for reference purposes.
True RMS (True root-mean-square value)
True RMS value. AC current and voltage of a non-sine wave can be measured by true RMS values.
Backlight
Allows indicator reading in a dark place.
Auto Power Off
Power is automatically turned off when a certain time has elapsed after power-up. Some models have a function to cancel this function.
MAX / MIN
The maximum value and the minimum value are displayed or recorded. The recorded value can be seen later on the display.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.CL.00239
Product TypeClamp Meters
Model NoDCL3000R
Voltage Range 30/300/3000A
Voltage Accuracy ±(3.0%+5)
Voltage Resolution 0.01A
Sampling Rate Approx. 2 times/sec.
Bandwidth 45-500Hz
Display 3150
Clamp diameter/Conductor size Ø150mm max.
Max. overload protection input AC5000A
Battery 2x LR03 Batteries
Battery Life Approx. 130 hrs. (Alkaline battery/Backlight off)
Dimensions (HxWxD) 120 × 70 × 26 mm
Cable length Approx. 1.8m
Safety standards IEC61010 CAT.IV600V
