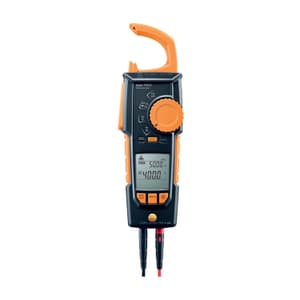

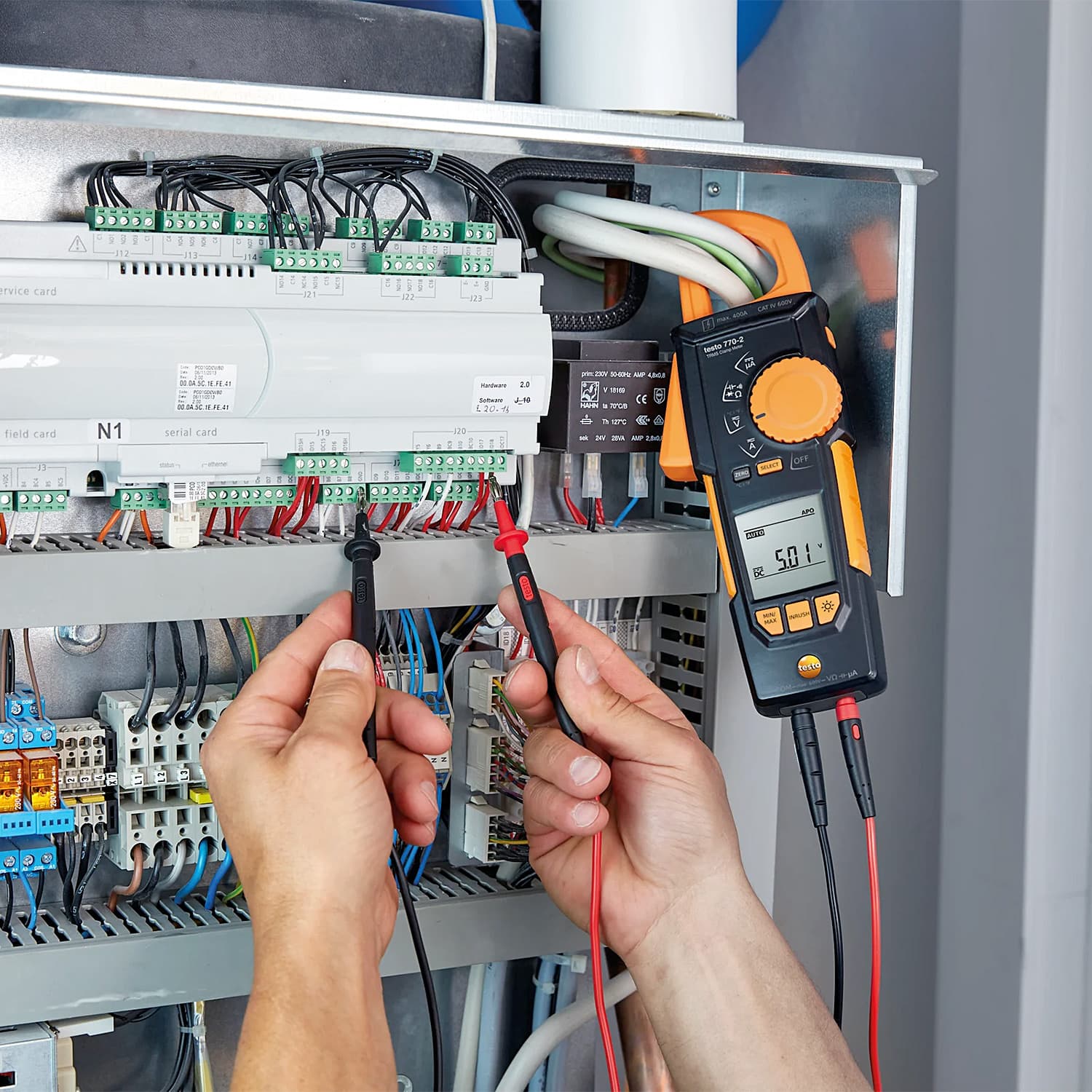

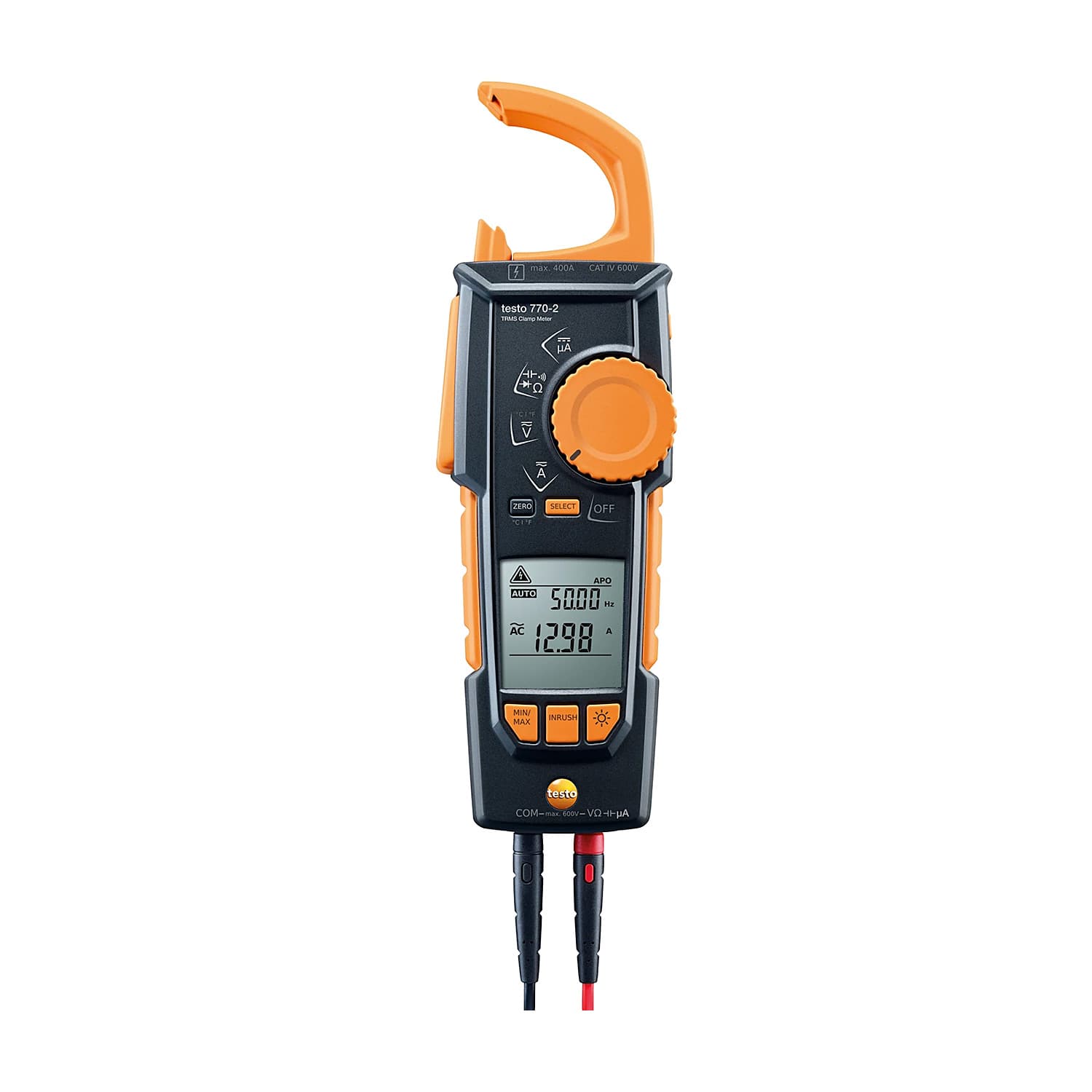

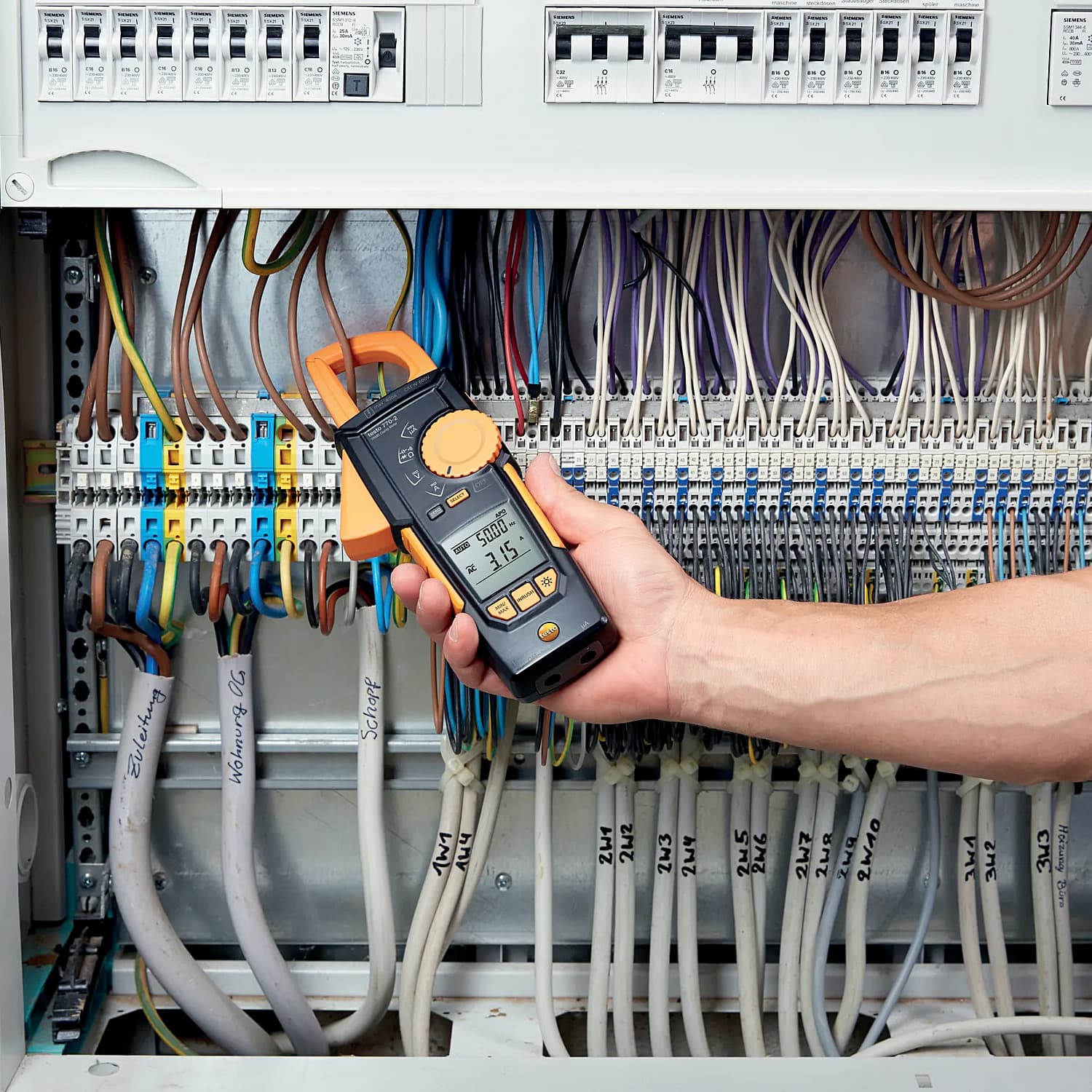

The testo 770-2 clamp meter makes it so much easier to work on tight measuring points, such as switching cabinets. The clamp meter's movable pincer arm can be fully retracted into the instrument. This means you can accurately grab tightly packed conductors such as cables and check them for faults. Furthermore, it enables measurement of the starting current on electric motors and ionisation current testing in the µA range. The supplied temperature adapter for thermocouple probes can be used to measure electrical parameters as well as temperatures (compatible type K thermocouple probe can be ordered separately). The clamp meter detects and selects AC/DC fully automatically and also provides automated selection of other electrical parameters such as resistance, continuity, diode and capacitance. This makes operation easier and more reliable than ever before. Your readings are clearly and distinctly presented on the two-line display.

Features:

• Fully retractable pincer arm to make your work easy
• Auto AC/DC and large two-line display
• Measuring functions for starting current on electric motors and μA measurements
• Temperature adapter for type K thermocouples
• Instrument Measurement Functions: Diode test, Continuity testing, Display ligthing, Hold, MinMax, Temperature measurement with adapter, True RMS, Inrush current measurement, Autom. measurement parameter detection & μA current measuring rangev

Technical Data:

	Measuring Range	Resolution	Accuracy
Temperature - TC Type K (NiCr-Ni)	-20 to +500°C	±1°C (0 to +100°C)	0.2°C
DC Voltage	1mV to 600V	max. 1mV	± (0.8% of mv + 3 Digits)
AC Voltage	1 mV to 600 V	max. 1mV	± (1.0 % of mv + 3 Digits)
AC/DC Current	0.1 to 400.0 A (clamp) 0.1 to 400.0 μA (measuring cables)	0.1 A (clamp) 0.1 μA (measuring cables)	± (1.5 % of mv + 5 Digits) (measuring cables) ± (2.0 % of mv + 5 Digits) (clamp)
Resistance	0.1 Ohm to 40.00 MOhm	max. 0.1 Ohm	± (1.5 % of mv + 3 Digits)
Capacitance	0.01 nF to 100.0 μF	max. 0.01 nF	max. ± (1.5 % of mv + 5 Digits)

What's Included In This Package:

• 1x TRMS clamp meter
• 3x AAA batteries,

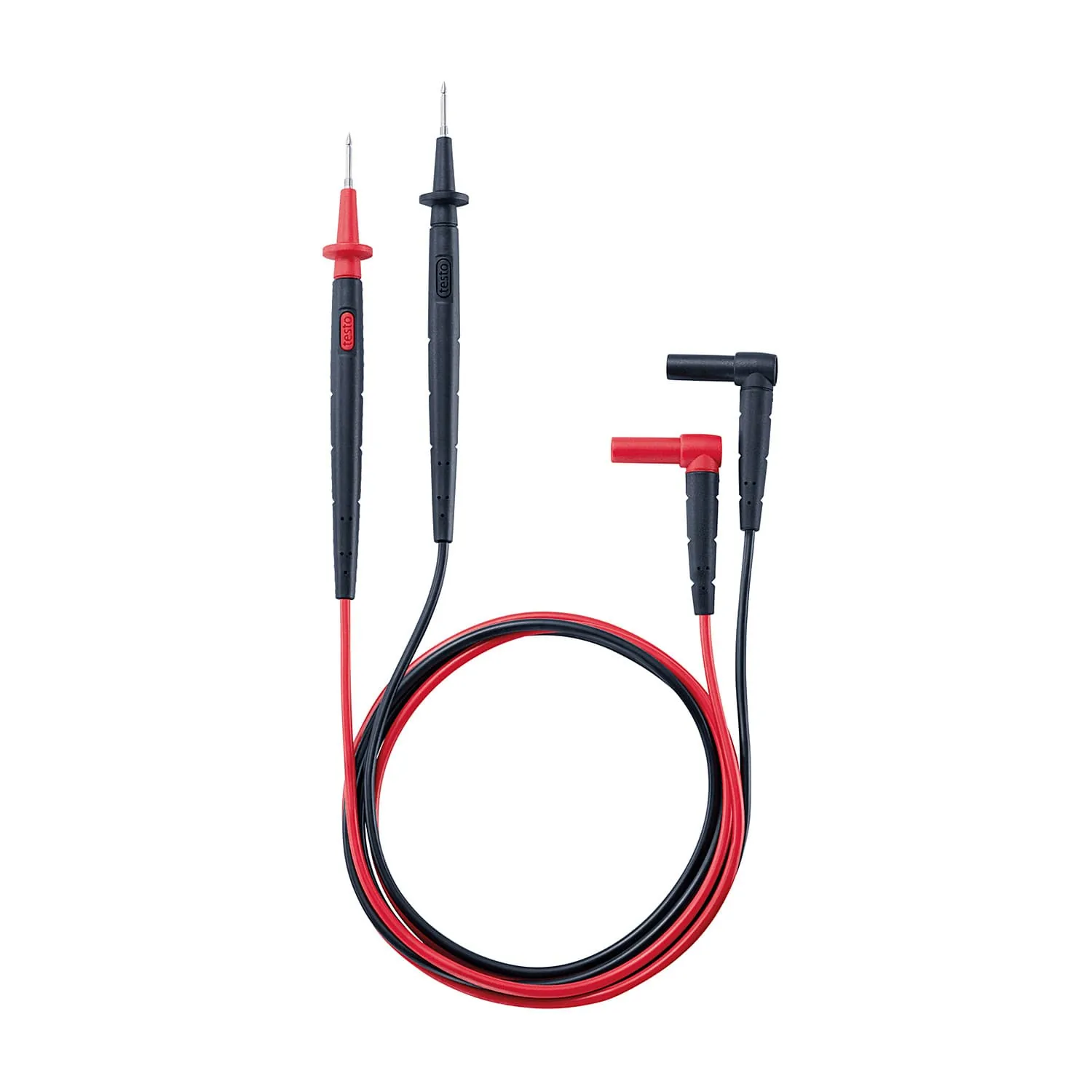

• 1 Set of measuring cables (0590 0010),
• 1 x Adapter for thermocouples type K,
• Instruction manual

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
