Volt/mA Loop Calibrator is a source and measurement tool. This Volt/mA Loop Calibrator is use to measure or output 0 to 24 mA DC current loop, and 0 to 20 V DC voltage. But the calibrator cannot be used to measurement and source simultaneously.

Features:

• Maximum voltage applied between any jack and earth ground or between any tow jack: 30V
• Temperature coefficient: ±0.005% of range per °C for the temperature range -10°C to 18°C and 28°C to 55°C
• Relative humidity: 95% up to 30°C, 75% up to 40°C, 45% up to 50°C, 35% up to 55°C

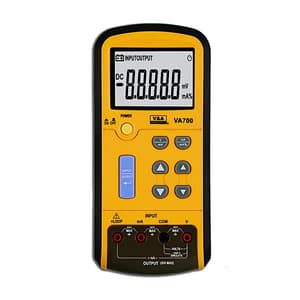

The front panel is shown:

• Loop power 24V to ground
• mA measurement input jack
• Input or output negative (ground) jack
• V, mV input or output jack
• Power switch
• V mV conversion key
• mA mA% conversion key
• Input/output conversion key
• Increase more value key
• Reduce more value key
• Increase less value key
• Reduce less value key

LCD screen is shown:

• Input state indication
• Output state indication
• Indicating AUTO POWER OFF is availably
• Result value
• Indication to the calibration mode
• Low power indication
• Current mA mA% indication
• Voltage V mV indication
• Current mA indication
• Sub-display zone

Maintenance:

Cleaning	Periodically wipe the case with a damp cloth and detergent; do not use abrasives or solvents.
Calibration	Calibrate your calibrator once a year to ensure that it performs according to its specifications.
Replacing the Battery	Please change the battery when the LCD indicates  Turn off the power of the Calibrator, When you change the battery, and screw off the breechblock on the battery cabinet cover, then take off it and instead the fresh battery. Replacing a Fuse
Warning	To avoid personal injury or damage to the calibrator, use only a 0.125A 250V fast fuse. Fuse 1 is probably blown if: In the V output mode, with the test leads removed from the calibrator, the display flashes OL. Fuse 2 is probably blown if: In the mA input mode, the calibrator always reads 0.000, even with a signal applied.

Package Contents:

• Calibrator
• Holster
• A pair of Test Leads
• 6x AAA battery
• User manual
