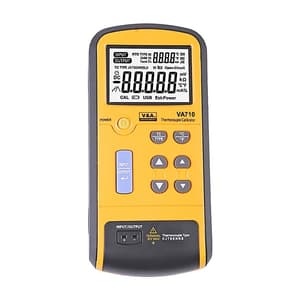

Thermocouple Calibrator is a exactitude measurement and source handhold instrument, it can be use to calibrate the Thermocouple instrument. Thermocouple Calibrator can measure or simulate 8 types of difference Thermocouple (°C or °F) and measure or simulate the millivolt. But it could not use to measurement or source at a same time.

Features:

• Measure or simulate the millivolt and 8 types of Thermocouple (? or ?)
• Large 5-digit LCD with full angle
• High Accuracy Max.up to 0.3°C and 0.025% mV
• With standard jack for external power supply
• Maximum voltage applied between any jack and earth ground or between any two jack: 30V
• Temperature coefficient: ±0.02%/°C on 0°C~18°C and 28°C~50°C
• Relative humidity: 95% up to 30°C, 75% up to 40°C,45% up to 50°C
• Thermocouple Process Calibrator is a exactitude measurement and source handhold instrument, it can be use to calibrate the Thermocouple instrument.

Maintenance:

Cleaning	Periodically wipe the case with a damp cloth and detergent; do not use abrasives or solvents.
Calibration	Calibrate your calibrator once a year to ensure that it performs according to its specifications.
Replacing the Battery	Please change the battery when the LCD indicates  Turn off the power of the Calibrator, When you change the battery, and screw off the breechblock on the battery cabinet cover, then take off it and instead the fresh battery. Replacing a Fuse
Warning	To avoid personal injury or damage to the calibrator, use only a 0.125A 250V fast fuse. In the thermocouple input mode, if ‘OL’ does not appears on LCD with no thermocouple input, the fuse is probably blown. A new fuse should be used. Connect wire: Use the accessories thermocouple plug to make the difference plug connect wire which you want.

Package Content:

• 1x Calibrator
• 2x Thermocouple plugs (no wire),
• 6x AAA 1.5V Battery,
• 1x user’s manual
