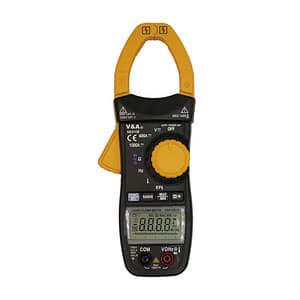

The meter is an autorange 1000 Amps AC/DC clamp meter with temperature measurement and 3999 counts. The autorange 1000 Amps AC/DC clamp meter with temperature measurement is for measuring DC and AC voltage, DC and AC current, Resistance, Capacitance, Temperature, Frequency, Duty Cycle, Diode and Continuity Test with battery operated.

Features:

• Ranging method: Auto range mode
• Polarity indication: “-” display for negative polarity
• Overrange indication: LCD will display “OL”
• Low battery: “ ” will appears on LCD
• Continuity test, Auto range, Data hold, True RMS Measurement, Relative Measurement
• Max/Min Value Measurement, Back light, Auto power off, Low Power Indication, Diode test
• Maximum voltage - 1000V DC or 700V AC RMS
• Display - LCD 3999 counts Updates 2-3/sec
• Jaw capability: 40mm, Max conductor size

Application:

• With Functions of Voltage measurement, Current measurement, Resistance measurement, Diode test, Continuity test, Capacitance measurement, Frequency measurement, Temperature measurement and duty cycle test
• This digital clamp meter is ideal for use in the fields, workshop, school, hobby and home applications.

Maintenance:

• Before opening the meter, always disconnect test leads from all sources of electric current.
• If any faults or abnormalities are observed, the meter can not be used any more and it has to be checked out.
• Never use the meter unless the back cover and the battery cover are in place and fastened fully.
• Do not use abrasives or solvents on the meter, use a damp cloth and mild detergent only.

Package Content:

• 1x Clamp Meter
• 1x Operator’s instruction manual
• 1x Set of test leads
• 3x 1.5V AAA Battery
• 1x “K” type thermocouple
