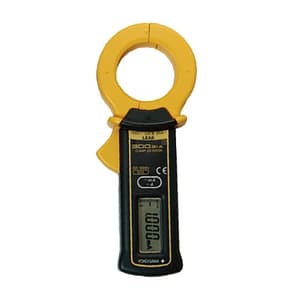

The 30031A are small leakage current clamp meters by Yokogawa. The 30031A Clamp-On Current Leakage Tester is capable of measuring from 1 mA AC. This model of leakage current test equipment use mean value as their leakage current measurement method of detection and rms value calibration.

Features:

• Can measure leakage currents of 1 mA, which is useful for checking the insulation of low-voltage circuits and electrical components.
• Can measure a broad range of currents from leakage currents (at a resolution of 0.001 mA) to load currents up to 60 A.
• Typical influence (on the current value of an adjacent cable) from an external magnetic field is 0.0005%.
• Durability of clamp: More than 50000 opening/closing events
• Twice the tensional strength of Yokogawa M&C's earlier model clamps
• The clamp lever is lengthened by 30%, enabling smooth opening/closing of the clamp even for thick cables of 40mm in diameter.
• Approved for conformity to safety standards EN 61010-1 and EN 61010-2-032 (CAT III 300V, pollution degree2)

Accuracy:

50/60Hz	1.0 + 5(0~30mA)
	1.0 + 5(0~50A)
	5.0 + 5 (50-60A)

Accessories:

• Instruction manual,
• battery,
• Soft case
