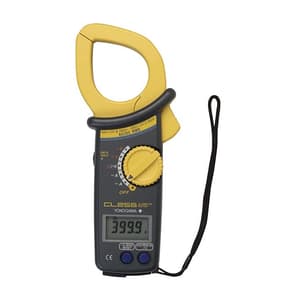

Yokogawa 3999 Count / 2000A AC/DC TRMS Auto Ranging Clamp-on Tester, CL255
Roll over image to zoom zoom_in
- Weight: 540 Grams
- Product Type: Clamp Meters
- Display Counts: 3999 Counts
- AC/DC current Range: 400 / 2000A
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹65372 (Incl. of all taxes)
₹55400+ ₹9972 GST (18%)
3 Business Days
1 Pcs
90303390
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- True RMS display
- AC/DC current measurements with current ranges up to 2000A
- AC/DC voltage and resistance measurements
- DC output
- 55mm in diameter of measurable conductor
- Sleep function
- Data hold function
- Approved for conformity to safety standards EN61010-1,EN61010-2-031, EN61010-2-032 (CAT. III 600 V, CAT. II 1000 V)
Accuracy:
- At 23°C±5°C, 75%RH or less
- Accuracy: ±( % rdg + dgt) = ±(% readout + value of least significant digit)
| Parameter | Reference | Accuracy |
|---|---|---|
| DC current | 400/2000A | 1.5+2 |
| AC current | 400A/2000A (150~1700A) | 1.5+3 (50/60Hz) |
| 3.0+4 (30~1kHz) | ||
| 2000A (1701~2000A) | 1.0+2 | |
| DC voltage | 40/400/1000V | 3.5+3 (50/60Hz) |
| AC voltage | 40/400/750V | 1.0+2 |
| 1.5+3 (50/60Hz) | ||
| 2.0+4 (30~1kHz) | ||
| Crest factor | ?3 | |
| Resistance | 400/4000Ω | 1.5+2 , Beeps at below 20Ω (continuity check) |
| Frequency | 10~3999Hz | 1.5+5 |
| DC output | DC400A (0~400mV) | ±1.5% rdg ±3mV |
| DC2000A (15~200mV) | ±1.5% rdg ±3mV | |
| AC400A (0~400mV) /AC2000A (15~170mV/150~1700A) | ±1.5% rdg ±3mV (50/60Hz) | |
| ±3.0% rdg ±3mV (40~1kHz) | ||
| AC2000A (170.1~200mV/1701~2000A) | ±3.5% rdg ±3mV (50/60Hz) |
Accessories:
- Carrying case (93034)
- Output plug (98012)
- Test Lead (98011)
- User's manual (IM CL250)
- Batteries
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.CL.00285 |
|---|---|
| Product Type | Clamp Meters |
| Model No | CL255 |
| Display Counts | 3999 Counts |
| AC/DC current Range | 400 / 2000A |
| AC/DC Current Resolution | 0.1A |
| AC Current Frequency | 30 ~ 1kHz |
| Method of Detection | True RMS |
| Response Time | Approx. 1 second (on DC current/voltage range) / Approx. 2 seconds (AC current/voltage range, resistance range) |
| Range Switching | Auto-range |
| Peak Hold | On current / Voltage range |
| Operating Temperature & Humidity | 0 - 40°C, 85% RH or less (No Condensation) |
| Influence of External Magnetic Field | 4A or less at 400A/m |
| Influence of Conductor Position | ±(1.5% rdg + 3 dgt) or less |
| Safety Standard | Conforms EN 61010-1, EN61010-2-031, EN61010-2-032 |
| Circuit Voltage | 1000Vrms or less |
| Withstanding Voltage | 5.55 kV AC for one minute |
| Power Supply | 6F22 (006P) 9V x 1, 6LR61 x 1 |
| Battery Life | Approx. 15 Hours (Continuous) |
| Consumed Current | Approx. 15mA |
| Sleep Function | Automatically powered down in about 10 minutes after the last switch operation |
| Diameter of Measurable Conductor | Max. 55 mm |
| Dimensions (W x H x D) | 105 x 250 x 49 mm |
| Origin | Made in Japan |
