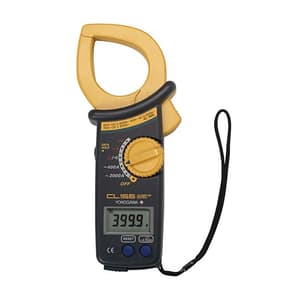

Yokogawa 3999 Count / 2000A AC TRMS Manual & Auto Ranging Clamp-on Tester, CL155

Shop all Yokogawa

SKU: ME.EL.CL.00282

Model: CL155

Roll over image to zoom zoom_in
  1. Yokogawa 3999 Count / 2000A AC TRMS Manual & Auto Ranging Clamp-on Tester, CL155

  • Weight: 470 Grams
  • Product Type: Clamp Meters
  • Display Counts: 3999 Counts
  • AC current Range: 2000A AC
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

48380 (Incl. of all taxes)

41000+ ₹7380 GST (18%)



3 Business Days

1 Pcs

90303390

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • AC current measurement with current ranges up to 2000A
  • AC/DC voltage and resistance measurements
  • True RMS display
  • 54 mm in diameter of measurable conductor
  • DC output function
  • Data hold function
  • Sleep function
  • Digital Clamp Meter Approved for conformity to safety standards EN61010-1, EN61010-2-031, EN61010-2-032 (CAT. HI 600 V, CAT. II1000 V)


Accuracy:

AC Current Accuracy (400A Reference)1.0+3(50/60Hz), 2.0+3(40~1kHz)
AC Current Accuracy (2000A Reference, 0~1500A)2.0+3(50/60Hz), 3.0+3(40~1kHz)
AC Voltage Accuracy (40/ 400V/ 750V Reference)1.0+2(50/60Hz), 1.5+3(40~1kHz)
DC Voltage Accuracy (40/ 400V/ 1000V Reference)1.0+2
Resistance Accuracy (400/ 4k/ 40k/ 400kΩ reference)1.5+2, Beeps at below 50± 35Ω (continuity check)
DC Output Accuracy (400A, 0~400mV Reference)0.5% rdg ± 0.5mV (50/60Hz), 0.5% rdg ± 0.5mV (40~1kHz)


Accessories:

  • Clamp Adapter (99025),
  • Output Cable for Terminal Screw (91019),
  • Carrying Case (93034),
  • Output Plug (98012),
  • Test Lead (98011),
  • User's manual (IM CL150),
  • Batteries

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKUME.EL.CL.00282
Product TypeClamp Meters
Model NoCL155
Display Counts 3999 Counts
AC current Range 2000A AC
AC Current Resolution 0.1A
Method of Detection True RMS
Response Time Approx. 2 seconds
Range Switching Manual-range (on AC current range) / Auto-range (on AC voltage range, resistance range)
Data Hold On all range
Operating Temperature & Humidity 0 - 40°C, 85% RH or less (No Condensation)
Influence of External Magnetic Field 1A or less at 400A/m
Influence of Conductor Position ± (2% rdg + 3dgt) or less
Safety Standard Conforms EN 61010-1, EN61010-2-031, EN61010-2-032
Circuit Voltage 1000Vrms or less
Withstanding Voltage 5.55kV AC for one minute
Power Supply R6P(SUM-3)x2 or LR6x2
Battery Life 150 Hours
Consumed Current Approx. 5mA
Sleep Function Automatically powered down in about 10 minutes after the last switch operation
Diameter of Measurable Conductor Max. 54 mm
Dimensions (W x H x D) 105 x 247 x 49 mm
Origin Made in Japan
