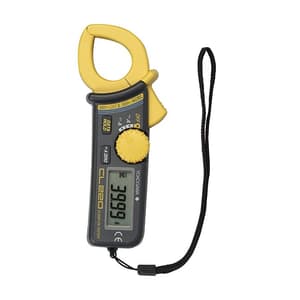

Yokogawa 3999 Count / 300A AC/DC Auto Ranging Clamp-on Tester, CL220
Roll over image to zoom zoom_in
- Weight: 100 Grams
- Product Type: Clamp Meters
- Display Counts: 3999 Counts
- AC/DC current Range: 40 / 300A
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹33748 (Incl. of all taxes)
₹28600+ ₹5148 GST (18%)
3 Business Days
1 Pcs
90303390
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- AC/DC tester
- Current measurements of current ranges up to 300A
- 24mm in diameter of measurable conductor
- Lightweight & compact design
- Mean value display
- Sleep function
- Approved for conformity to safety standards EN61010-1, EN61010-2-032 (CAT. III 300 V)
Accuracy:
- At 23°C±5°C, 75%RH or less
- Accuracy: ±( % rdg + dgt) = ±(% readout + value of least significant digit)
| Parameter | Reference | Accuracy |
|---|---|---|
| DC current | 40A | 1.0+4 |
| 300A(±20~±200A) | 1.5+4 | |
| 300A(±200~±300A) | 3.0 | |
| AC current | 40A | 1.0+4 (50/60Hz) |
| 2.5+4 (20~1kHz) | ||
| 300A(20~200A) | 1.5+4 (50/60Hz) | |
| 2.5+4 (20~1kHz) | ||
| 300A(200~300A) | 3.5 (50/60Hz) | |
| 4.0 (20~1kHz) |
Accessories:
- Carrying case (93033)
- User's manual (IM CL235)
- Batteries
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.CL.00283 |
|---|---|
| Product Type | Clamp Meters |
| Model No | CL220 |
| Display Counts | 3999 Counts |
| AC/DC current Range | 40 / 300A |
| AC/DC Current Resolution | 0.01A |
| AC Current Frequency | 20 ~ 1kHz |
| Method of Detection | Mean Value |
| Response Time | Approx. 2 seconds |
| Range Switching | Auto-range |
| Data Hold | On all range |
| Operating Temperature & Humidity | 0 - 40°C, 90% RH or less (No Condensation) |
| Influence of External Magnetic Field | 1A or less at 400A/m |
| Influence of Conductor Position | ± (2% rdg + 5dgt) or less |
| Safety Standard | Conforms EN 61010-1, EN61010-2-031, EN61010-2-032 |
| Circuit Voltage | 300Vrms or less |
| Withstanding Voltage | 3.7 kV AC for one minute |
| Power Supply | LR-44 x 2 (3V), SR-44 x 2 |
| Battery Life | Approx. 11 Hours (continuous) |
| Consumed Current | Approx. 9mA |
| Sleep Function | Automatically powered down in about 5 minutes after the last switch operation |
| Diameter of Measurable Conductor | Max. 24 mm |
| Dimensions (W x H x D) | 59 x 147 x 25 mm |
| Origin | Made in Japan |
