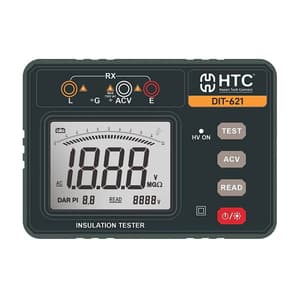

HTC 1000V / 20G Ohm Digital Insulation Tester, DIT-621
Roll over image to zoom zoom_in
- Weight: 290 Grams
- Product Type: Insulation Testers
- Output Voltage (V): 50V - 1000V
- Resistance Measurement Range: 1M Ohm - 20G Ohm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹2902.8 (Incl. of all taxes)
₹2460+ ₹442.8 GST (18%)
MRP ₹3075
SAVE 20%
7 Business Days
1 Set
90303350
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- The rated voltage according to the test requirements: Between 50V / 100V / 200V / 300V / 400V / 500V / 600V / 700V / 800V / 900V / 1000V
- 100 Sets of Data Storage
- Absorption Ratio
- Polarization Index
- Automatic Range
- Automatic Discharge
- Test Voltage Display
- Measurement Time Display
- Short Circuit Current
- Insulation Resistance
- Voltage Withstand
- Low / High Voltage Indication
- Complete Protected Circuit
- Dust Proof, Water Resistance
Technical Data:
| Output Voltage | Range | Accuracy | Short Circuit Current |
| 50V - 200V | 1M - 500M Ohm | ±(8%+5) | 1.5mA |
| 300V - 500V | 1M - 10G Ohm | ||
| 600V - 1000V | 1M - 20G Ohm | ±(10%+5) | |
| AC Voltage Measurement | 30 Ohm - 750V | ±(2%+5) | - |
Package Content:
- Digital Insulation Tester
- Hard Carrying Case
- Sling
- Iron Substrate
- Aluminium Substrate
- Calibration Film
- Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.IN.00152 |
|---|---|
| Product Type | Insulation Testers |
| Model No | DIT-621 |
| Output Voltage (V) | 50V - 1000V |
| Resistance Measurement Range | 1M Ohm - 20G Ohm |
| Output Voltage (%) | 90% ~ 110% |
| Output Load | >1000M |
| AC Voltage | 30V - 750V |
| Max. Display | 3-1/2 Digits / 1999 Count |
| Frequency of AC Voltage | 40Hz - 70Hz |
| Short Circuit Current | >1.5MA |
| Insulation Resistance | >500M Ohm (1000V) |
| Voltage Withstand | AC 2KV 50Hz 1 Minute |
| Power Supply | 1x 3.7V 850mAh Lithium Battery |
| Dimensions (HxWxD) | 123 x 173 x 55 mm |
